INSTALLATION OF OUTDOOR UNIT
ENGLISH

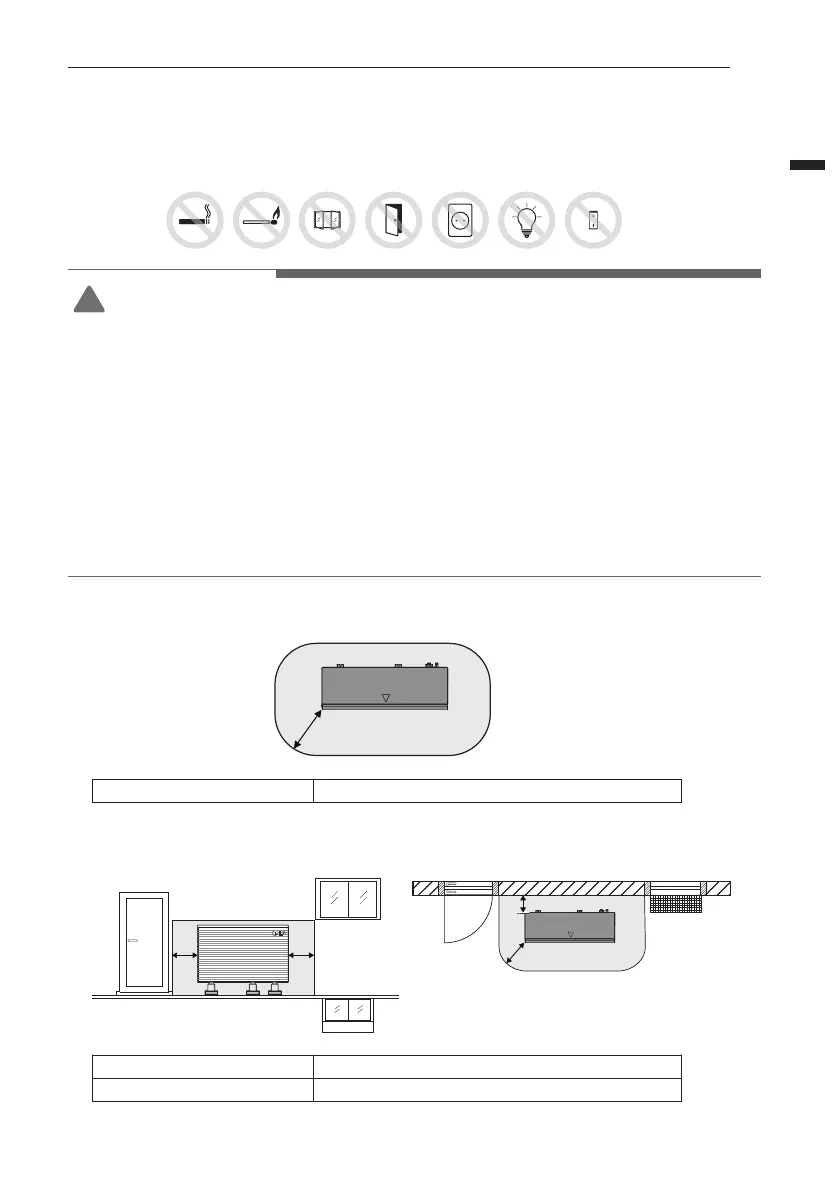

Safety Zone
Since the outdoor unit contains flammable refrigerant, a separate safety zone must be defined
near the outdoor unit.
CAUTION
!
Be very careful for Safety Zone
• There must be no building openings. (windows, doors, roof windows, etc.)
• There must be no external and outlet air openings. (e.g. intakes of central ventilation system)
• There should be no building boundaries, adjacent buildings, passageways, or roads.
• Drainage system inlets, pump shafts, downspouts, and bath lakes should not be present.
• Other grooves, bottoms and shafts must not be present
• There should be no Roof avalanches.
• Ignition sources (such as electrical switches or lamps) must not be used.
• No parts should have a surface temperature higher than 360 °C.
• Open flames are strongly prohibited!
Above special safety precautions must be taken within the areas marked below.
1 Ground installation no obstacle
A
2 Ground installation in front of the wall
A 1 000
B 300
A 1 000
(Unit : mm)
(Unit : mm)
