41
INSTALLATION OF OUTDOOR UNIT
ENGLISH

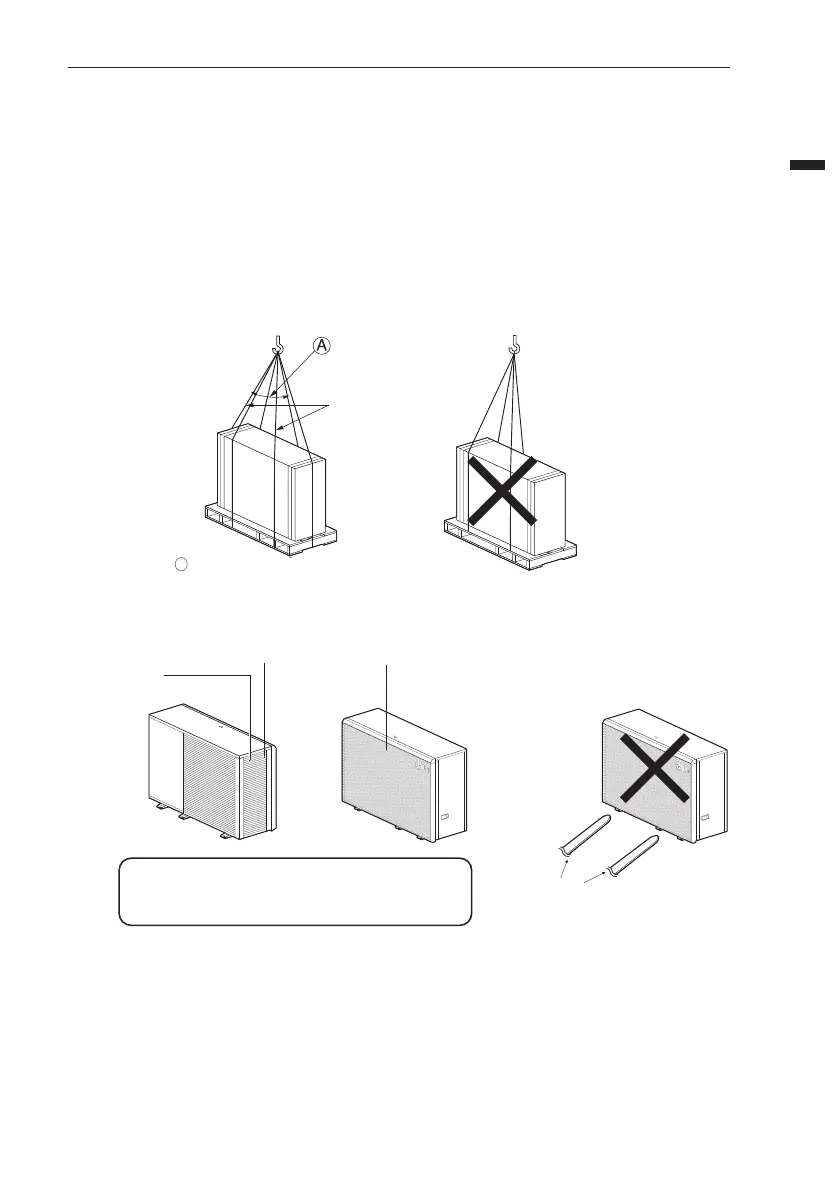

Transporting the Unit
- When carrying the suspended unit, pass the ropes between legs of base panel under the unit.
- Always lift the unit with ropes attached at four points so that impact is not applied to the unit.
- Attach the ropes to the unit at an angle Ⓐ of 40° or less.
- Use only accessories and parts which are of the designated specification when installing.
- Do not use a forklift without a pallet underneath the unit.
- Be careful not to damage the product when moving the forklift.
40º or less
A
Sub line
Air outlet grille
Always hold the unit by the corners, as holding
it by the side intake holes on the casing may
cause them to deform.
Forklift
Intake hole
Corner
To Next Page
