24
GENERAL INFORMATION
Description
484
301.2
847.8
12311684.5 81.2
63.4
2
1
3
4
5
6
7

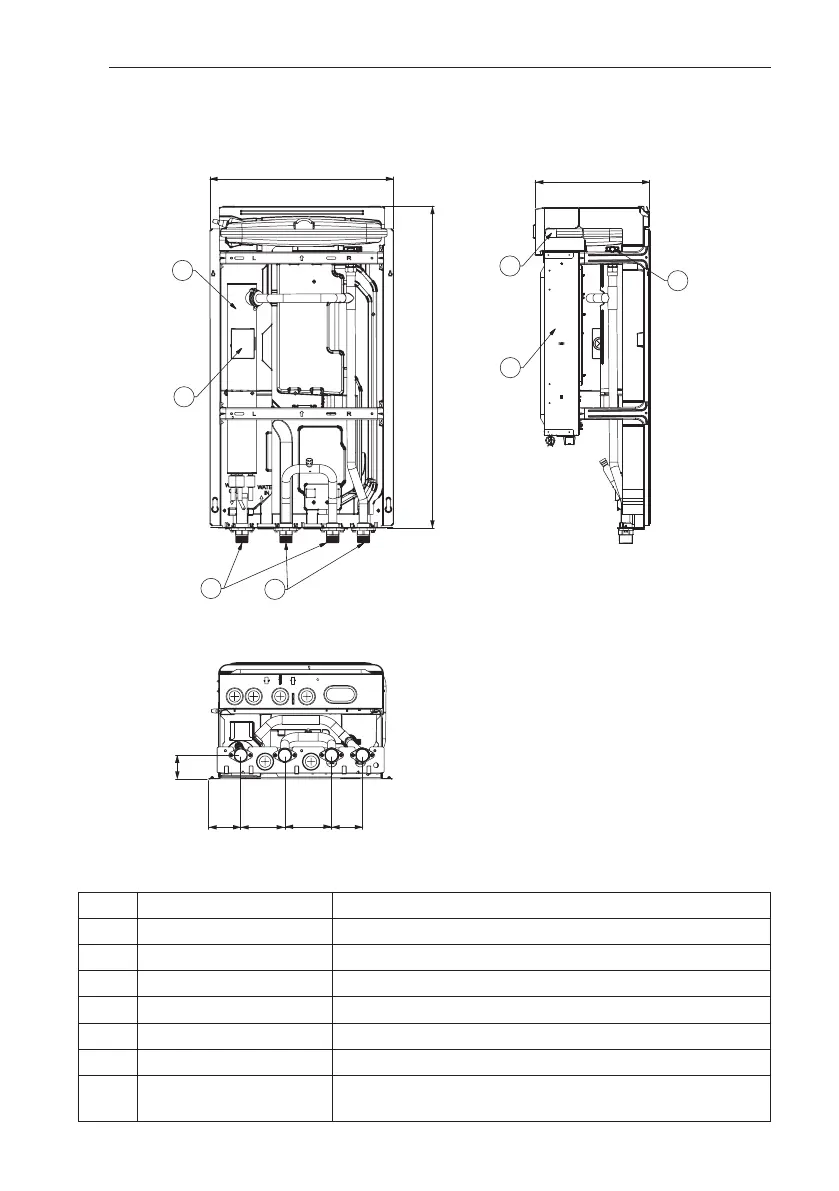

Indoor unit : Internal
No Name Remark
1 Leaving Water Pipe Male PT 1 inch
2 Entering Water Pipe Male PT 1 inch
3 Control Box
PCB and terminal blocks
4
Expansion Tank
Absorbing Volume change of heated water
5 Air Vent Air Pumping when Charging water
6 Backup heater Capacity : 6 kW (1Ø), 9 kW (3Ø)
7 Thermal switch
Cut-off power input to backup heater at 90 °C (manual return at
55 °C)
(Unit : mm)
