Site Preparation and Installation
Liebert
®
Mini-Mate2
™
30

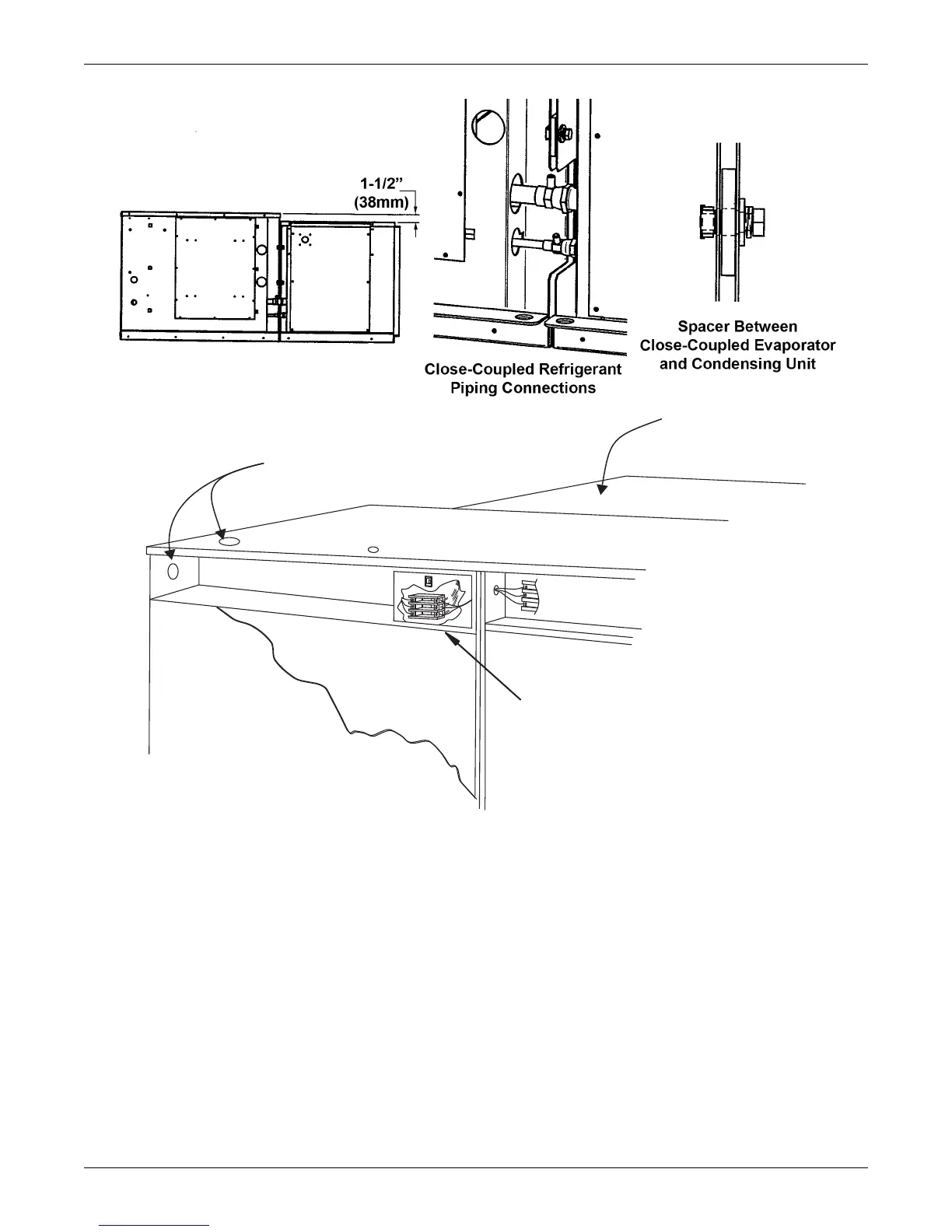

Figure 17 Close-coupled installation
5.6 Indoor Air-Cooled Centrifugal Fan Condensing Unit Installation
5.6.1 Location Considerations
The centrifugal fan air-cooled condensing unit may be located above the dropped ceiling or any remote
indoor area. If noise is of concern, the condensing unit should be located away from personnel. Normal
operating sound may be objectionable if the condensing unit is placed near quiet work areas. Refer to
Table 9 for maximum refrigerant line lengths.
To mount the unit in the ceiling, refer to 5.5 - Installing the Ceiling Units.
5.6.2 Electrical Connections
Refer to 5.5.5 - Electrical Connections for general wiring requirement and cautions. Refer to the
unit’s electrical schematic when making connections. Refer to the unit’s specifications for full load
amp and wire size amp ratings.
Close-Coupled
Centrifugal Air-Cooled
or Water/Glycol
Condenser
Condenser
Evaporator Unit Electric Box
Line Voltage Electrical Power
Supply Entrance (Electric service
not by Emerson)
Single-Point Power Kit Option
Factory-supplied, field-installed
and field-wired
Evaporator
DPN000196
Rev. 0
