Liebert Mini-Mate2 MMD24E - Figure 22 Cabinet Dimensions and Piping Data, Water;Glycol Indoor Condensing Module; Table 20 Net Weight, Indoor Water;Glycol-Cooled Condensing Unit

Site Preparation and Installation
37 Liebert
®
Mini-Mate2
™

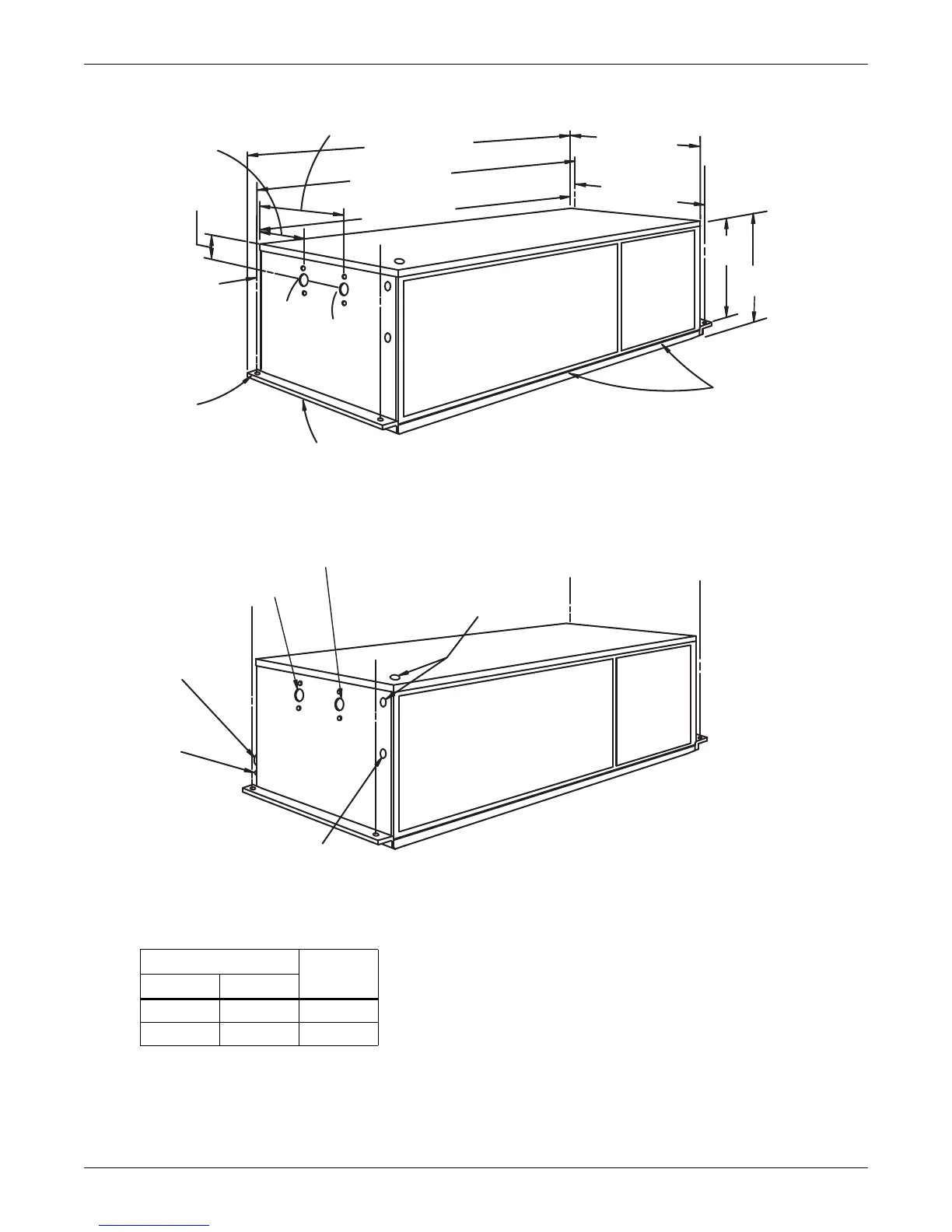

Figure 22 Cabinet dimensions and piping data, water/glycol indoor condensing module
Table 20 Net weight, indoor water/glycol-cooled condensing unit
Model #
Weight
lb (kg)60Hz 50Hz
MC*26W — 175 (79)
MC*38W MC*37W 220 (100)
Source: DPN000208, Rev. 4
12" (305mm)
Threaded Rod
Centers
8-7/16"
(214mm)
3-7/8" (98mm)
Inlet
Outlet
Integral
Hanging
Bracket
Holes for Module
Rigging (typ. 2 each end)
Customer-Supplied
Threaded Rods for
Module Support
from Ceiling (typ. 4)
22-1/2"
(572mm)
14" (356mm)
Overall Cabinet
Dimension
8-7/8" (225mm)
50-1/4" (1276mm)
Overall Dimension
48-1/4" (1225mm)
Threaded Rod Centers
46-1/2" (1181mm)
Cabinet Dimension
20-3/4"
(527mm)
Note:
Unit is spaced evenly in
reference to threaded rod centers
DIMENSIONAL DATA
Cabinet
Dimension
7/8" (22mm) Dia.
Electrical Entrance
for High Voltage
Connection
7/8" (22.2mm) OD CU
Water/Glycol Outlet Connection
Extends 3-1/2" (88.9mm) beyond
panel exterior
7/8" (22.2mm) OD CU
Water/Glycol Inlet Connection
Extends 3-1/2" (88.9mm) beyond
panel exterior
DPN000208
Rev. 4
PIPING CONNECTIONS
Suction Line
Male Quick
Connect
Liquid Line
Male Quick
Connect
7/8" (22mm) Dia.
Electrical Entrance
for Low Voltage
Connection
Minimum Clearance
33" (838mm) this side
for component access
and removal.
