Site Preparation and Installation
Liebert
®
Mini-Mate2
™
34
5.7 Outdoor Air Cooled Condensing Unit Installation
5.7.1 Location Considerations
To ensure a satisfactory air supply, locate air cooled propeller fan condensing units in an environment
providing clear air, away from loose dirt and foreign matter that may clog the coil. Condensing units
must not be located in the vicinity of steam, hot air, or fume exhausts, or closer than 18 inches from a
wall, obstruction, or adjacent unit. Avoid areas where heavy snow will accumulate at air inlet and
discharge locations.
The condensing unit should be located for maximum security and maintenance accessibility. Avoid
ground-level sites with public access. Refer to Table 9 for maximum refrigerant line lengths.
Install a solid base, capable of supporting the weight of the condensing unit. The base should be at
least 2 inches higher than the surrounding grade and 2 inches larger than the dimensions of the
condensing unit base. For snowy areas, a base of sufficient height to clear snow accumulation must be
installed.

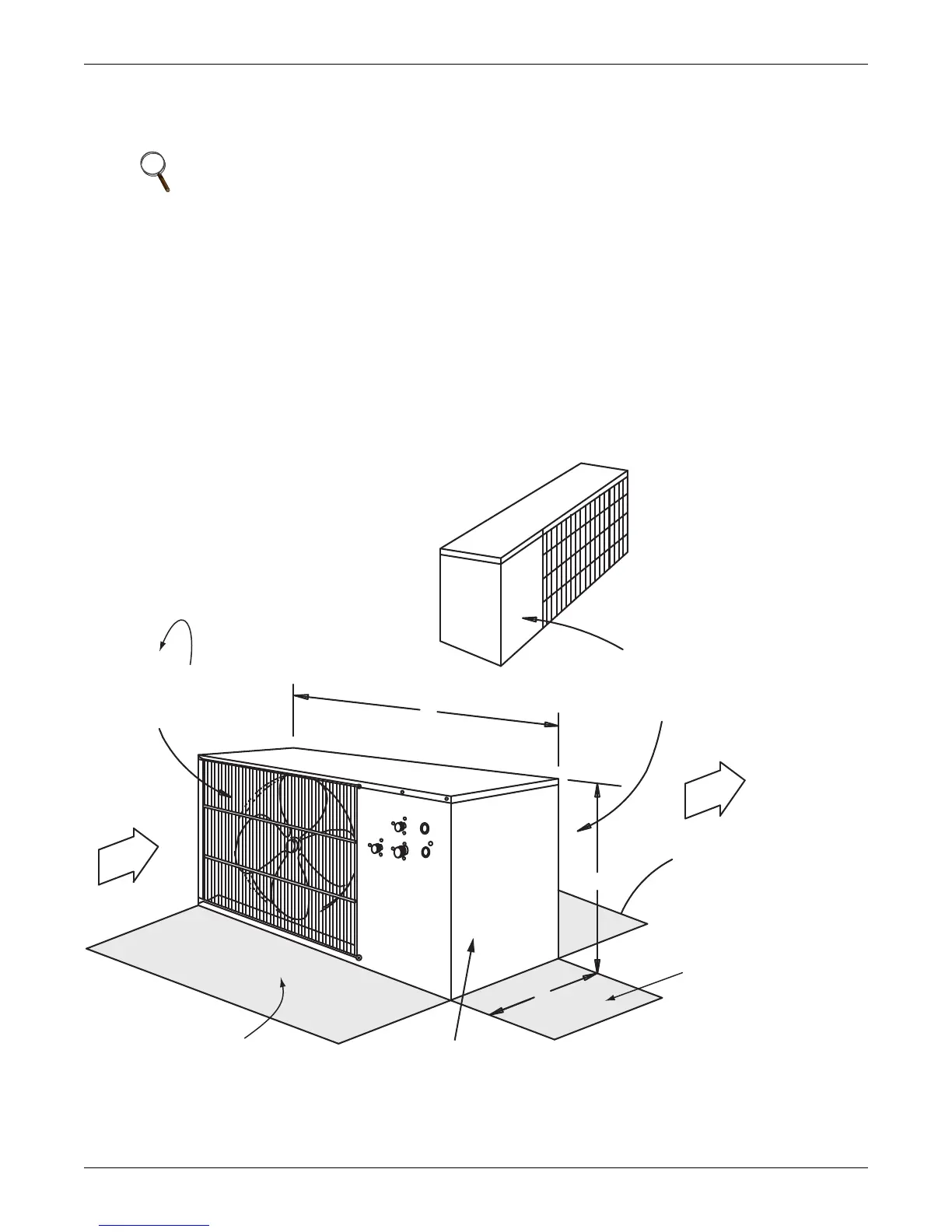

Figure 20 Cabinet and floor planning dimensional data, outdoor condensing unit
NOTE
Follow all national and local building, electrical and plumbing codes.
A
B
C
C
Fan Rotation
CCW
(left side)
Shaded area
indicates a minimum
clearance of 18" (457mm)
for proper air flow.
Shaded area
indicates a minimum
clearance of 18" (457mm)
for proper air flow
Shaded area
indicates a recommended
clearance of 24" (610mm)
for component access and
removal.
DPN000130
Rev. 1
Removable panel for access
to high-voltage and low-voltage
connections and refrigeration
components
Right Air Discharge
Removable (right) panel
for access to
refrigeration component
Left Air Intake
