Site Preparation and Installation
41 Liebert
®
Mini-Mate2
™
5.9.2 Hot Water Reheat Coil
Building hot water can be piped to a factory-installed hot water reheat coil, located downstream of the
cooling coil. A factory-installed solenoid valve opens upon a call for reheat.

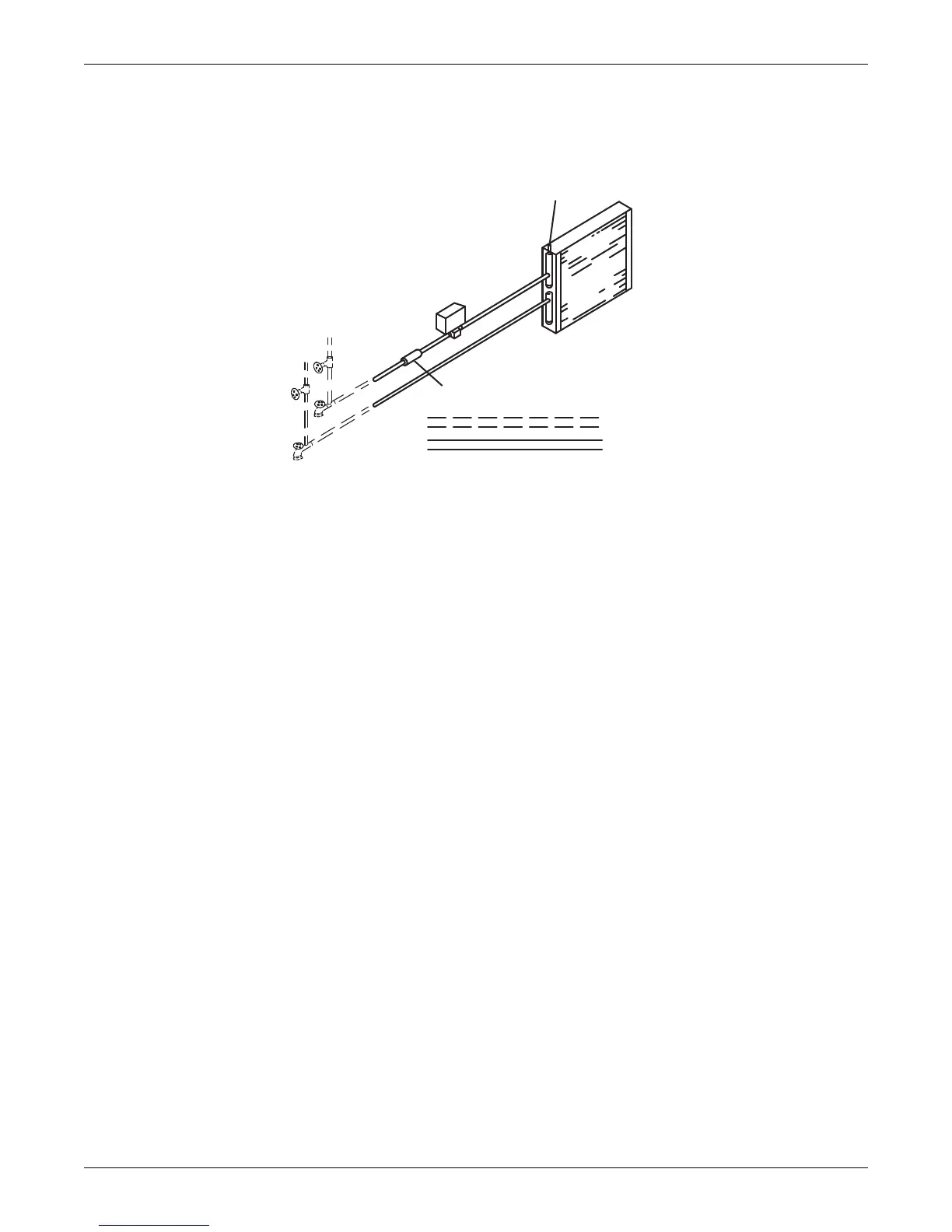

Figure 25 Optional hot water reheat (two-way valve)
Shutoff
Valves *
Hose
Bibs *
Bleed Valve
Hot Water
Reheat
Control
Valve
Water
Return
From Unit
Water
Supply
To Unit
Y-Strainer
Hot Water
Reheat
Coil
DPN000197
Rev. 2
* Components are not supplied
by Liebert but are recommended
for proper circuit operation and
maintenance.
FIELD PIPING
FACTORY PIPING
NOTE: Hot water reheat only available
on chilled water units.
