3. Product Overview HDMI-TPS-RX110AY – User's Manual 11

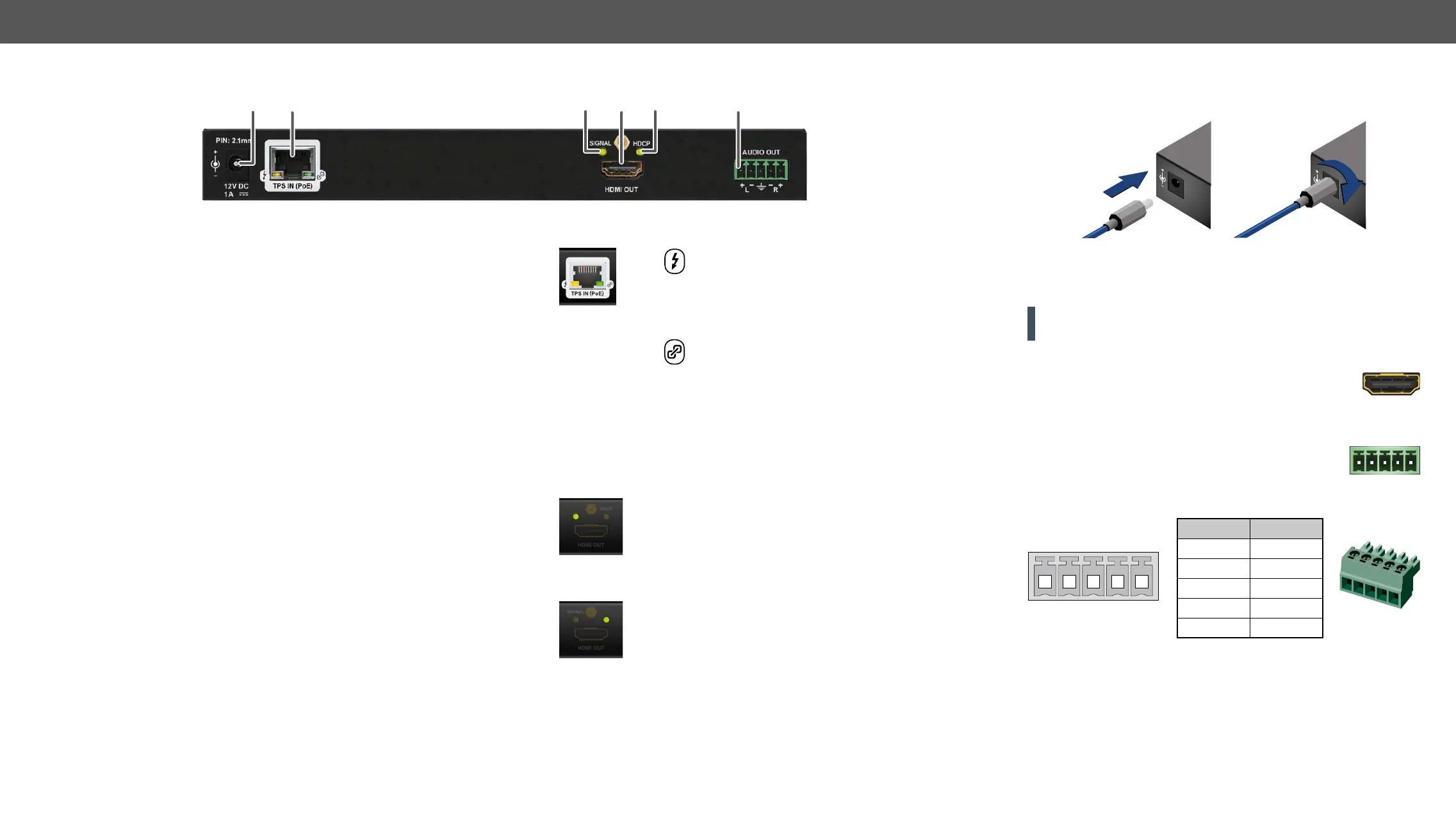

Rear View
1
DC 12V IN
For more details see next section.
2
a twisted pair cable between the
transmitter and the receiver. Remote
powering is also available through
this connector. Maximum CATx
cable distances can be found in
the Maximum Extension Distances
section.
3
SIGNAL status LED
about current state of the HDMI
output signal. See the legend below.
4
HDMI OUT Connect an HDMI cable between the
receiver and the local sink device.
Applied cable shall not be more, than
30 m (when the signal is 1080p) and
20 m (when the signal is 4K).
5
HDCP status LED
about current state of HDCP. See the
legend below.
6
AUDIO OUT 5-pole Phoenix connector for
asymmetric analog audio output. Pin
assignment can be found in the next
section.
2 4 63 51
TPS Input LEDs
Remote power (PoE) is
inactive, device is powered
locally.
ON: Remote power is active.
No TPS link between the
transmitter and receiver.
Device is in low power
mode or Ethernet fallback
mode.
ON: TPS signal is present.
SIGNAL LED for HDMI Output
Output signal is not present or
muted.
ON: Signal is present.
HDCP LED for HDMI Output
Output signal is not HDCP-
encrypted.
Non-HDCP capable device is
connected, encrypted signal is
replaced with red screen.
ON: Output signal is HDCP-encrypted.
SIGNAL
HDCP
Electrical Connections
DC 12V Connection
Locking DC connector
Do not forget to turn the plug clockwise direction before disconnecting
the power adaptor.
WARNING! Always use the supplied 12V power adaptor. Warranty
void if damage occurs due to use of a different power source.
HDMI Connector
The extender provides standard 19 pole HDMI connector
for output. Always use high quality HDMI cable for
connecting sources and displays.
Analog Audio Output
5-pole Phoenix connector is used for balanced analog
audio output. Unbalanced audio signals can be
connected as well. For unbalanced output connect + and ground to
the source and connect – to the ground.
Pin nr. Signal
1
2
3 Ground
4 Right-
5 Right+
Analog audio connector and plug pin assignments
Compatible Plug Type
Phoenix
®
Audio Interface section. Audio cable wiring guide is in the Audio Cable
section.
12V
1A
DC
12V
1A
DC
PIN: 2.1mm
PIN: 2.1mm
1 2 3 4 5
