3. Product Overview HDMI-TPS-RX110AY – User's Manual 15
Serial Interface
Technical Background
Serial data communication can be established via the local RS-232 port (Phoenix connector) or via the TPS

rates are different, the CPU does the conversion automatically between the ports). The RS-232 port can be


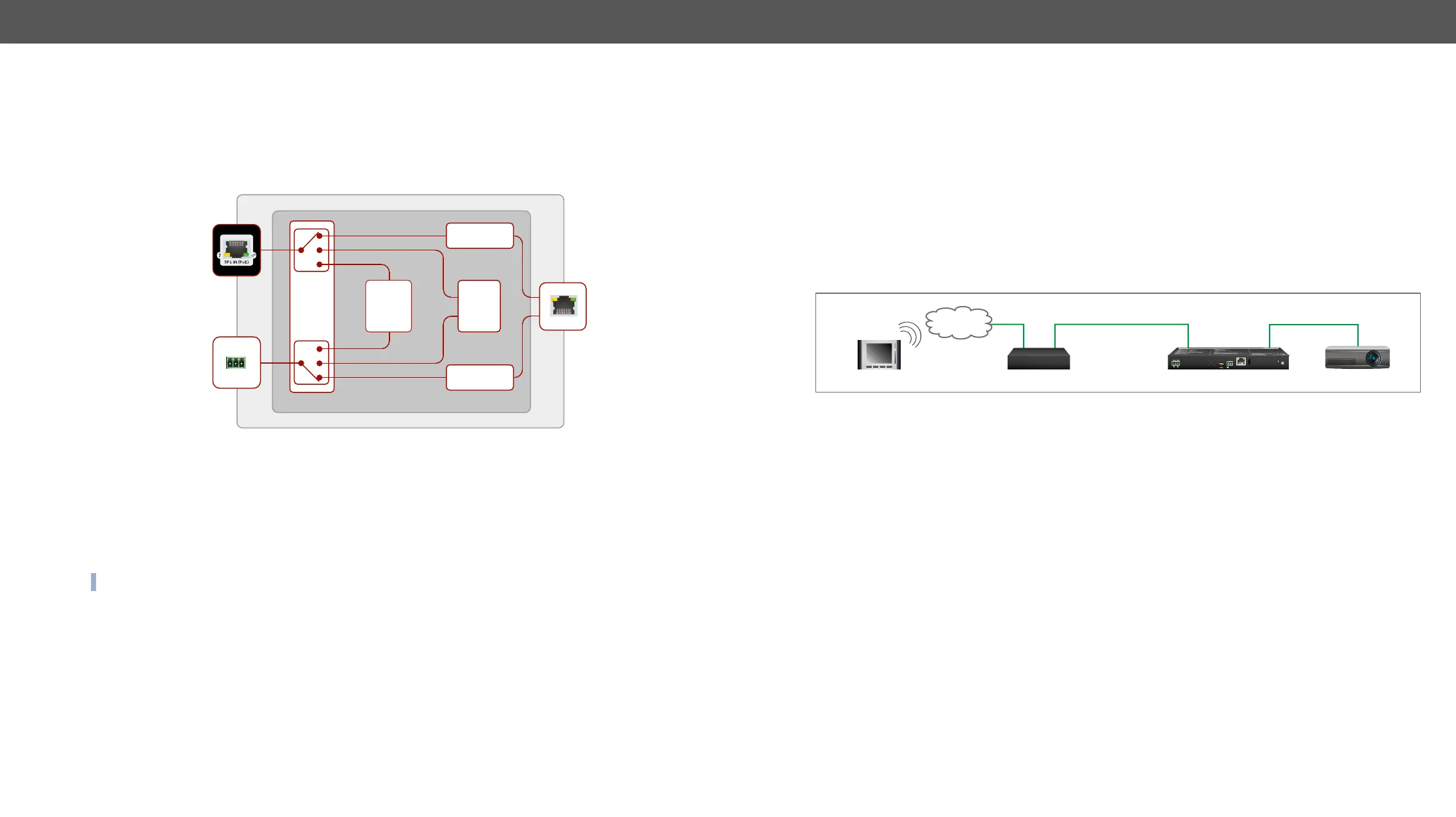

Block diagram of the serial interface

1
Control mode.
2
Pass-through mode.
3
Command Injection mode.
RS-232 section.
Only one mode can be used at the same time: Control mode, or Pass-through mode, or Command Injection
mode. If you choose one of them, TPS serial link and local RS-232 port will operate in the same mode.
Pass-through Mode
In pass-through mode, the given device forwards the data that is coming from one of its ports to another same
type of port. The command is not processed by the CPU. Incoming serial data is forwarded from TPS input port
to local RS-232 port and vica versa inside the receiver.
LAN
port
TPS
serial
link
RS-232
local
CPU
Device
control
Mode
switch
Local RS-232 /
TCP converter
Local
RS-232 /
TPS
converter
Link RS-232 /
TCP converter
2
3
3
1
1
Control Mode
The incoming data from the given port is processed and interpreted by the CPU. The mode allows to control

Command Injection Mode
In this mode, the receiver works as an RS-232 bidirectional converter. The TPS signal is converted to RS-232

E.g. the default Command Injection port number of the local RS-232 port is 8001. If a command is coming
from the TPS interface which addresses to the port no. 8001, it will be transmitted to the Tx pin of the
local RS-232 port. That works in the opposite direction of course and the method is the same on the serial
interface of the TPS port as well.

The Concept
The System controller can send commands to the receiver through the TPS transmitter and is able to remote
control the projector via RS-232.
Settings
▪ System controller: wireless IP connection to the same Ethernet as the transmitter is connected to. Use

certain IP:port address.
▪ Transmitter: set the RS-232 mode to Command Injection on TPS output port. Set the further parameters

transmit the RS-232 data toward the receiver.
▪ Receiver: set the RS-232 mode to Pass-through on RS-232 port.
▪ Projector
cable with the proper wiring.
Projector
TPS transmitterSystem controller
RS-232
TPS IN
LAN
HDMI-TPS-RX110AY
RESET
RS-232
LIVE
FUNCTION
TPS LINK
IR OUT
IR IN
CONTROL RS-232
ETHERNET
TX RX
MAX 30V, 1A
RELAYS
AUDIO OUT
Ethernet




