HDMI-TPS-RX110AY – User's Manual 20
Step 3. Select the unit from the discovered Ethernet devices or under USB devices; when the device is
connected through RS-232 click on the Query button next to the desired serial port to display the
device’s name and serial number. Double click on the receiver or select the device and click on the
Connect button.
ATTENTION!
Change IP Address
To modify IP address settings quickly it is not necessary to enter the device's
the IP address.
In this window you can see only the new settings.
Port Parameters Menu
Video Tab

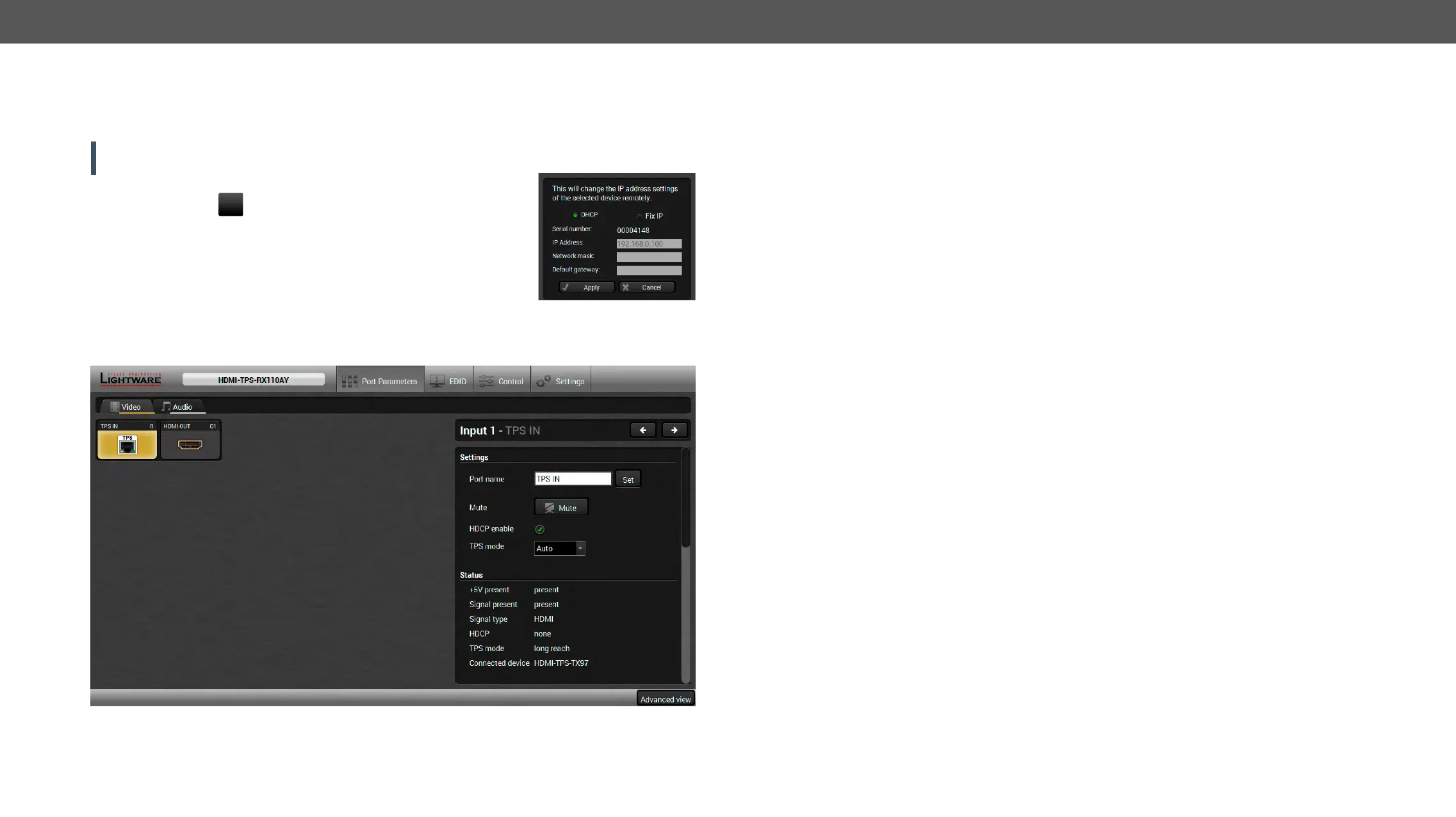

Video tab in Port parameters menu
The most important video related information and settings are available on this tab.
This is the TPS (HDBaseT) input line of the receiver. Clicking on the TPS icon results the settings panel
appering on the right side. You can check the status of the line, signal info and current emulated EDID.
Available Settings:
▪
▪ TPS mode (see details in the TPS Interface section);
▪ Cable Diagnostics and Frame Detector tools (see details in the Frame Detector section);
▪ Reloading factory defaults (see factory default settings in the Factory Default Settings section).
This is the HDMI output line of the receiver. Clicking on the HDMI icon results the settings panel appering on
the right side. You can check the status of the line, and signal and display info.
Available Settings:
▪
▪
▪ HDCP mode: Auto or Always;
▪
▪ Test pattern mode: Off, On, No signal;
▪ Test pattern clock source: 480p, 576p, or Original video signal;
▪
▪ Frame Detector (see details in the Frame Detector section);
▪ Reloading factory defaults (see factory default settings in the Factory Default Settings section).
