Linde 1202 Series - Check Reeving Hose Preload (Optional Equipment)

Model
Roller
diameter
Protrusion
limit
H20/600; H25
(1532 series masts)
3.1 in
(80 mm)
1.5 in
(40 mm)
H25/600, H30, H35
(1533 series masts)
3.5 in
(90 mm)
1.75 in
(45 mm)
Lift Chain Lubrication
NOTE
Lift chains on trucks used in the food industry
must be lubricated with an oil approved for the
food industry.
 Apply Linde chain spray to each chain and
guide surfaces. This should be done every
500 hours or as necessary to maintain a
light film of lubricant on the chains at all
times.
Check Reeving Hose Preload
(optional equipment)
Preload tension must be maintained in any
section of hose which operates over a sheave.
Proper tension is necessary to prevent hoses
from jumping the sheave. The reeving hoses
should be preloaded 0.2 - 0.4 in (5-10 mm)
per meter of original length.

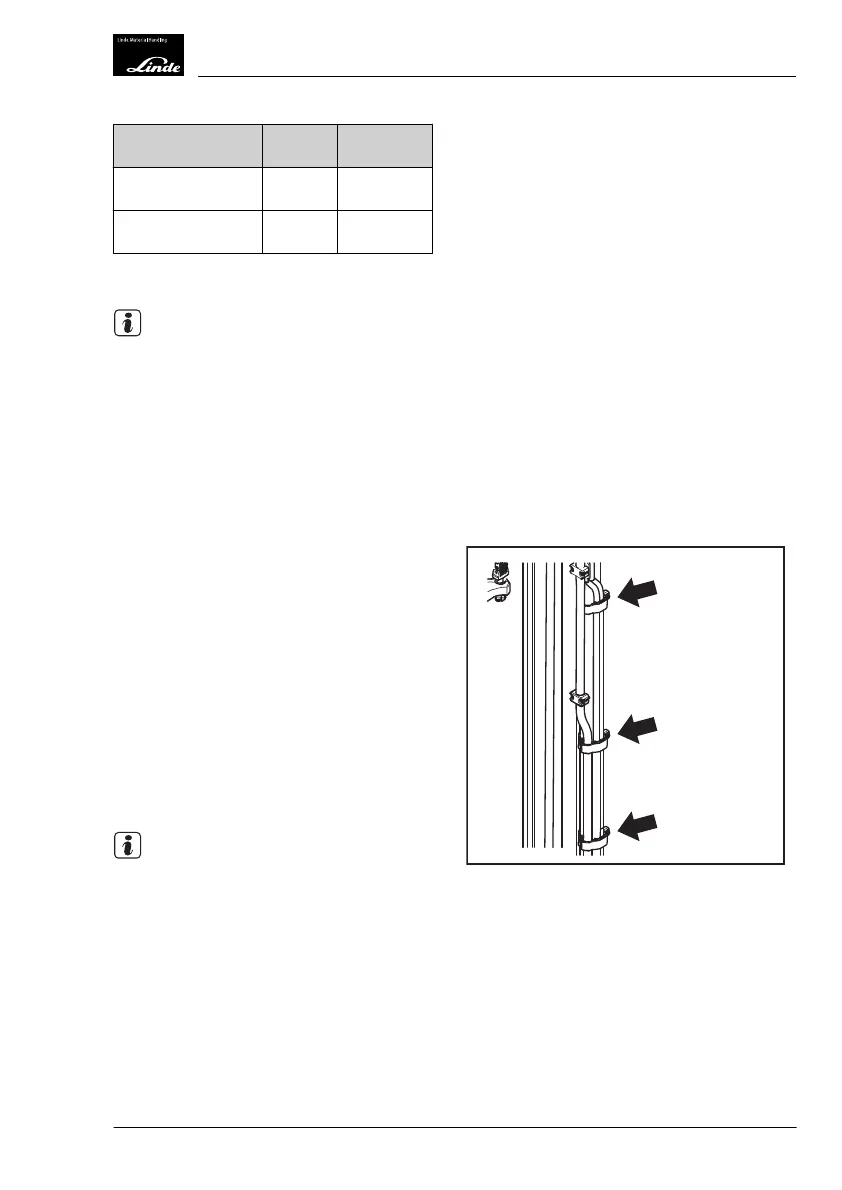

 Loosen the retaining clips, tension the ho-
ses to obtain the required preload, and then
secure the clips. Start at the top and work
excess slack toward the chassis.
NOTE
For double or triple masts, set preload for ho-
ses over the primary cylinder using the clip
on the rear side of the cylinder before setting
preload at the mast hoses.
