Linde 1202 Series - Armrest Controls

Armrest Controls
10
6
11
8
5
21 3
4
9
7
12
14
6
12
5
21 3 4
13
7
810
11
9
A
B
1202 08112020-02 Rv02

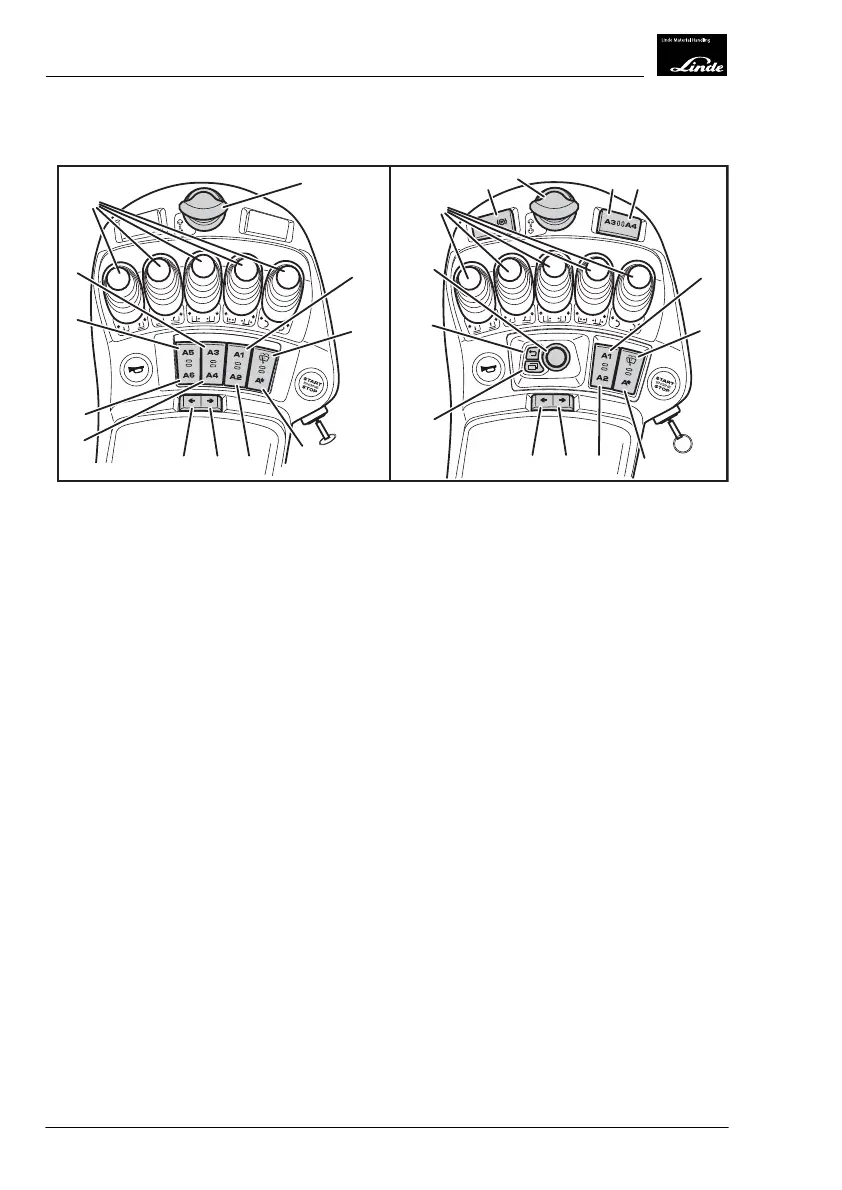

A STANDARD DISPLAY  B PREMIUM DISPLAY
1 Left-hand turn signal (optional equipment)  1 Left-hand turn signal (optional equipment)
2 Right-hand turn signal (optional equip-
ment)
 2 Right-hand turn signal (optional equip-
ment)
3 Push button (A2) for optional equipment  3 Push button (A2) for optional equipment
4 Push button (A
★)
for activating combina-
tions of accessory equipment
 4 Push button (A
★)
for activating combina-
tions of accessory equipment
5 Push button for windscreen wiper func-
tions− front windscreen wiper, rear win-
dow wiper and roof panel wiper
 5 Push button for windscreen wiper func-
tions− front windscreen wiper, rear win-
dow wiper and roof panel wiper
6 Push button (A1) for optional equipment  6 Push button (A1) for optional equipment
7 Hydraulic control levers  7 Push button (A4) for optional equipment
8 Push button (A3) for optional equipment  8 Push button (A3) for optional equipment
9 Push button (A5) for optional equipment  9 Direction selector lever (single-pedal
trucks only)
10 Push button (A6) for optional equipment  10 Push buttons for electric parking brake
(optional equipment)
11 Push button (A4) for optional equipment  11 Hydraulic control levers
12 Direction selector lever (single-pedal
trucks only)
 12 Rotary-push button for operating the pre-
mium display unit
   13 "Back" button for operating the premium
display unit
   14 "Favorite" button for operating the premi-
um display unit
3
Overview
Armrest Controls
30 Operating Instructions-1202 series LP 12028011590US-11/2022 - 04
