Right-hand traction motor 1M1
Connector 1X8 for LH traction motor 1M2
1 Brush switch 6B3
2 Brush switch 6B4
3 Thermal switch 160 °C 1B6
4 Thermal switch 160 °C 1B6
5 Thermal switch 80 °C 1B4
6 Thermal switch 80 °C 1B4
7 Not used
8 Not used

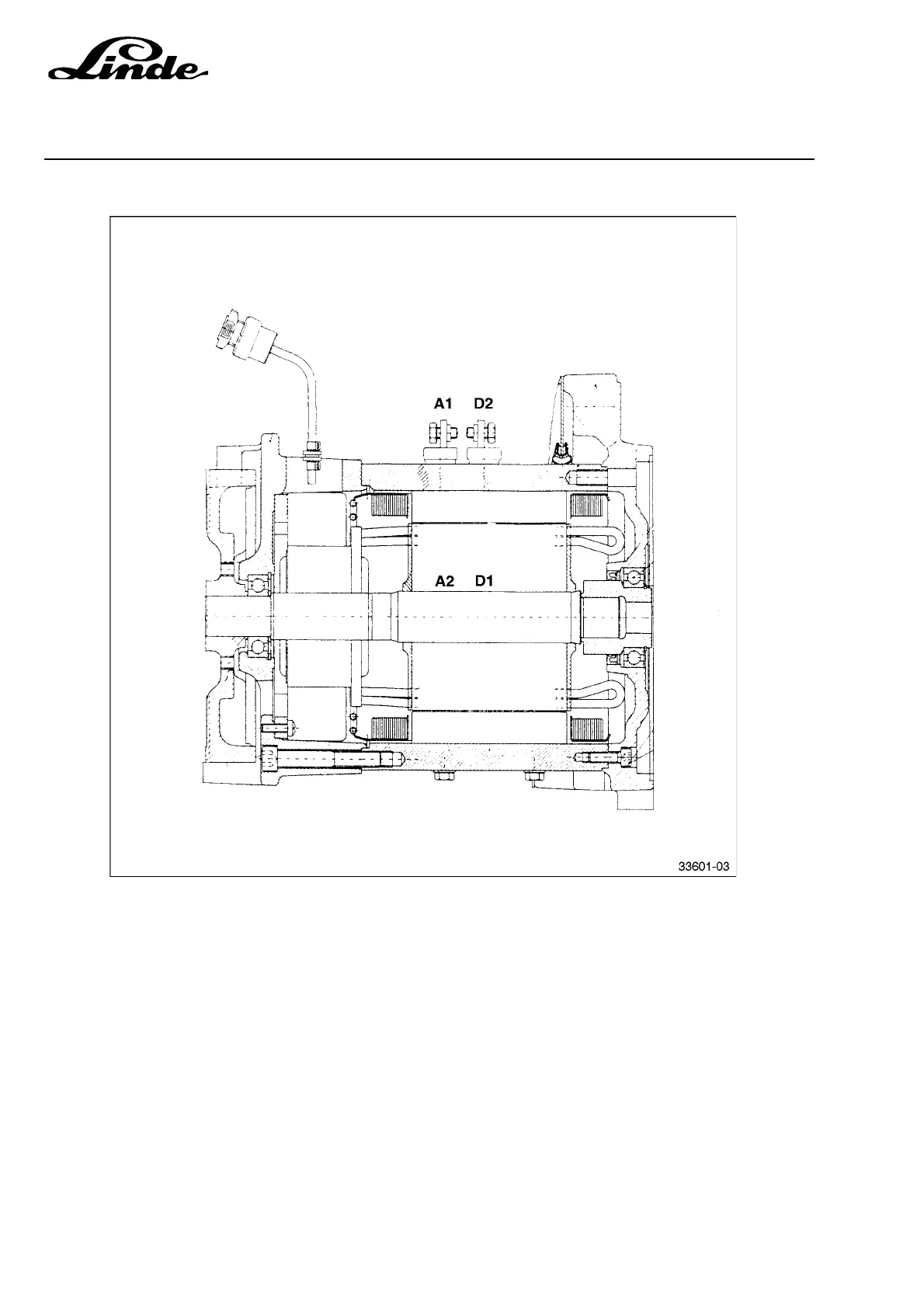

Armature terminals A1 and A2
Field terminals D1 and D2
Connector 1X7 for RH traction motor 1M1
1 Brush switch 6B1
2 Brush switch 6B2
3 Thermal switch 160 °C 1B7
4 Thermal switch 160 °C 1B7
5 Thermal switch 80 °C 1B5
6 Thermal switch 80 °C 1B5
7 Not used
8 Not used
