Linde E30 - Removing and Installing the Torsion Bar Springs

Service Training
Page 4
Section 2.3
2.3.2.1.1 REMOVING AND INSTALLING THE TORSION BAR SPRINGS
The number of torsion bar springs installed in the truck depends on the version of the cabin. When the cabin
is retrofitted to a different cabin version, the number of torsion bar springs must be changed, otherwise the
cabin will be too difficult to open or close too easily.
- Remove the electrical system cover.
- Dismantle the contactor support assembly and pull it aside until the spring pack is accessible.
- Open the cabin until the weight is full removed from the torsion bar springs (all springs are flat).
- Fix the overhead guard in this position with the aid of a crane and a sling.
- Remove the clamping plates on the right and left of the spring pack.
- Install the correct number of torsion bar springs.
- Install the correct fishplates and correct number of washers.
- Fasten fishplates at the left and right of the spring pack.
- Release the cabin from the crane.

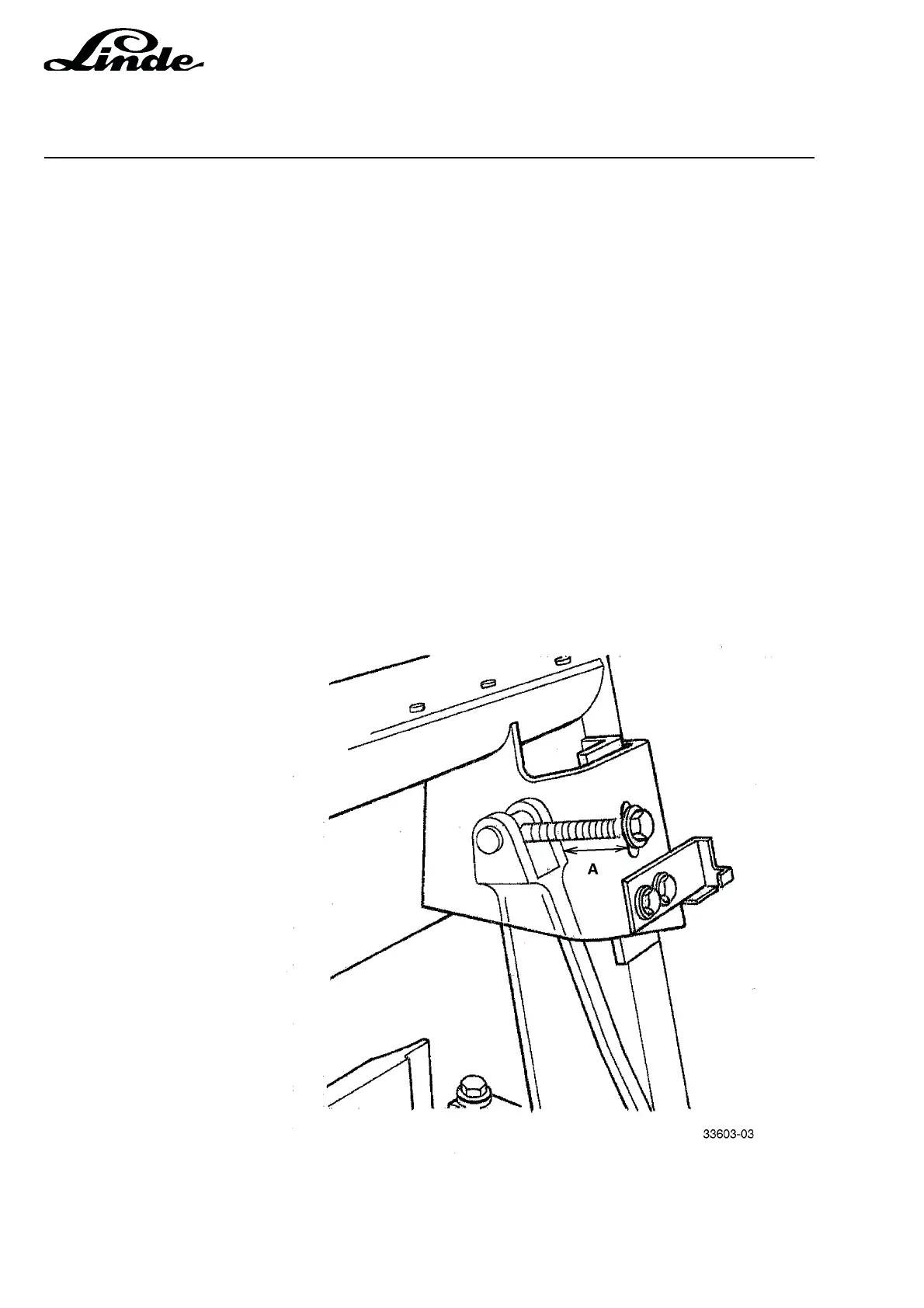

- A fine adjustment of the spring pack can be done with the adjusting screw on the tensioning lever on the
right-hand side of the cabin. Measure distance A for the adjustment.
NOTE: Distance A is measured vertically from the rear edge of the lever to the inner edge of the roof
bracket.
Lever adjustment:
Cab Model Distance A
1 40 mm
2 40 mm
3 35 mm
4 35 mm
5 25 mm
NOTE: The cabin should be able to be opened and closed without too much effort.
