Linde E30 - Installation of the Main Circuit Fuses

Service Training
Section 2.6
Page 23

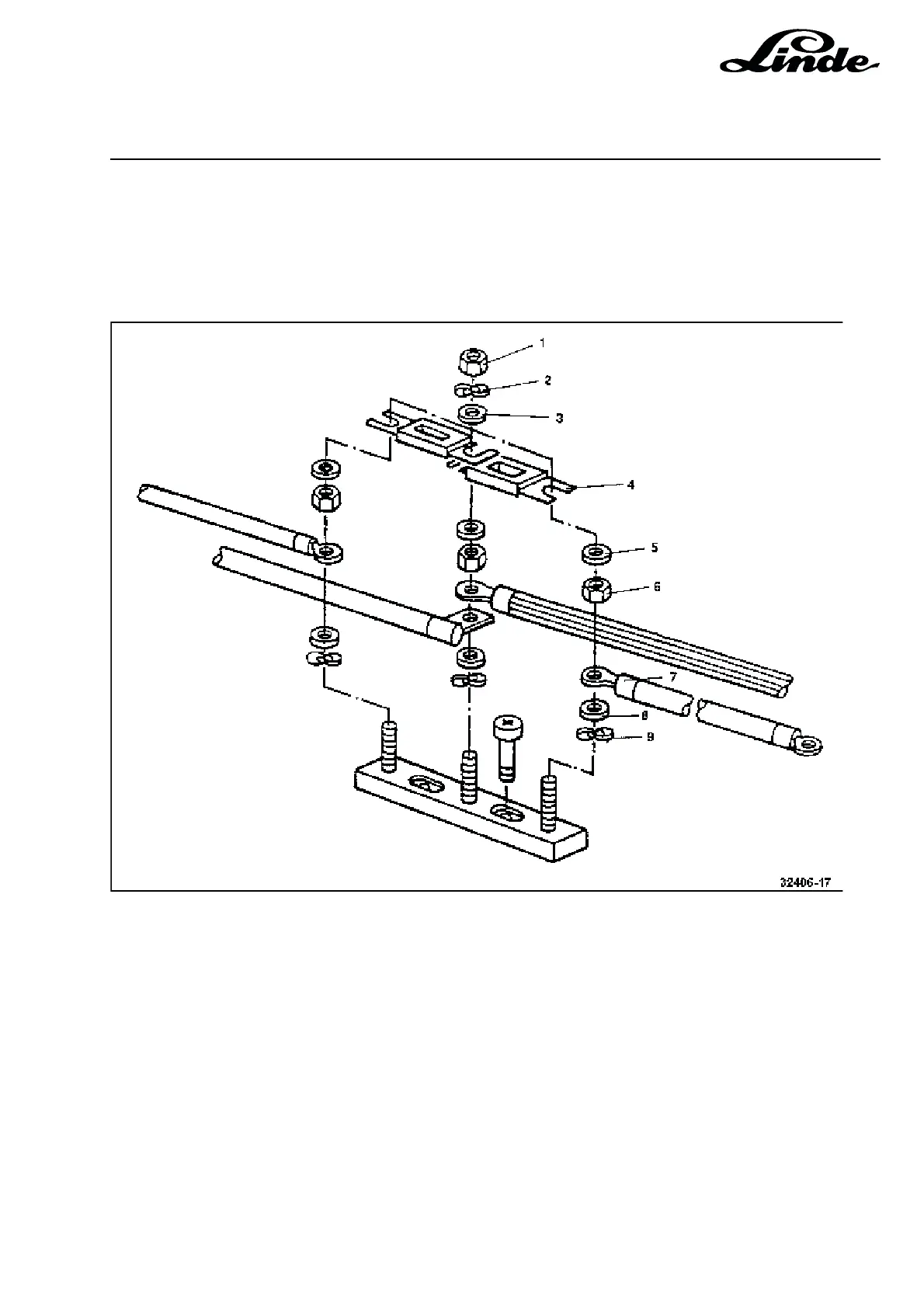

1,6 Nut
2,9 Lock washer
3,5,8 Brass washer
4 Fuse
7 Cable
2.6.3.3 INSTALLATION OF THE MAIN CIRCUIT FUSES
Carry out the installation of the main circuit fuses (plate fuses) according to the following illustration.
The two plate fuses must each be mounted with brass washers (3) on the top and bottom. Subsequently,
torque the hexagonal nut (1) to 20 Nm.
