Linde E30 - Fan Method of Operation from Series 7;95

Service Training
Section 2.6
Page 69

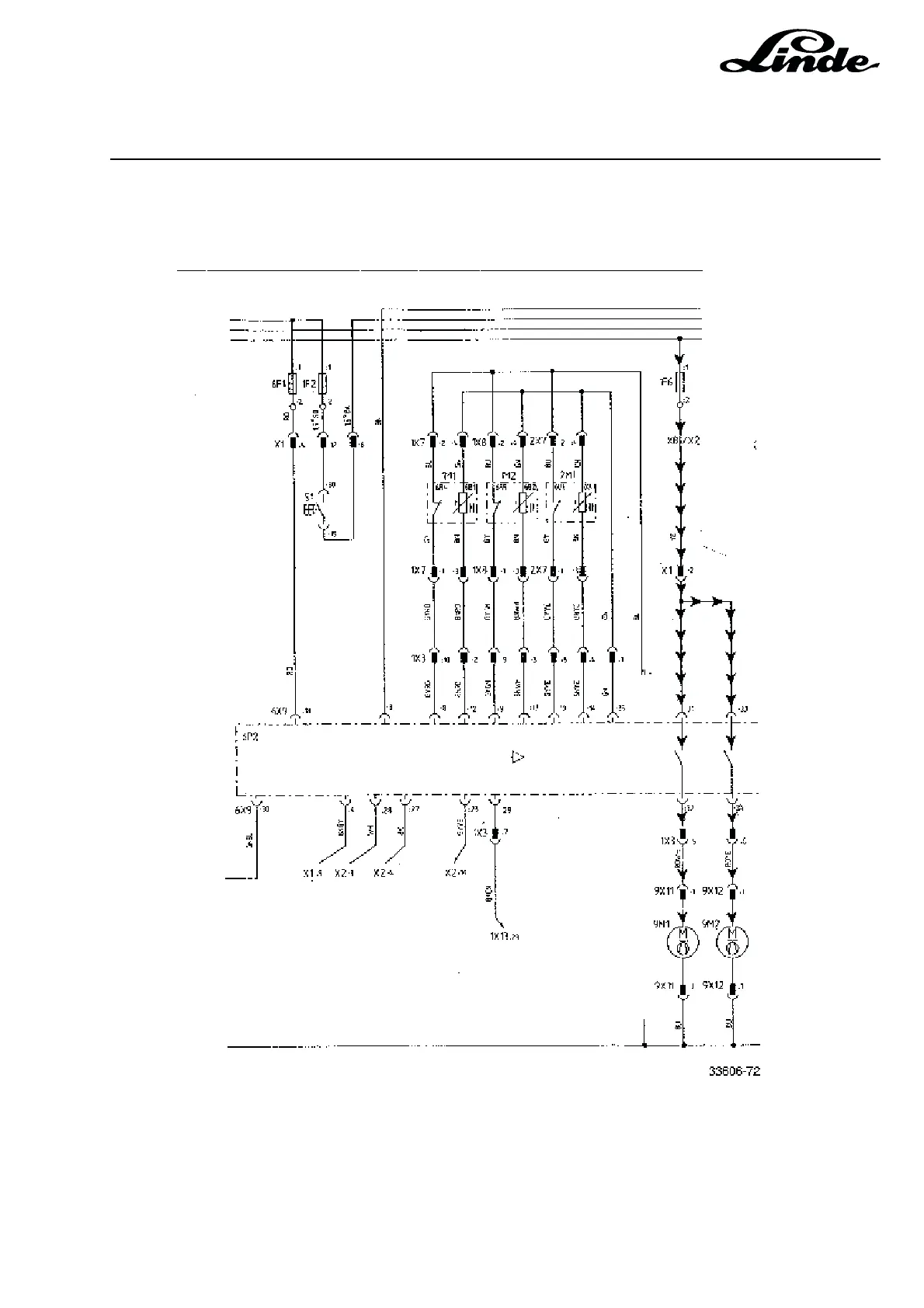

2.6.8.2 FAN METHOD OF OPERATION FROM SERIES 7/95
The fans 9M1 and 9M2 used for cooling the traction and pump motors are supplied with power on the positive
side with 24 V by voltage converter U1 via fuse 1F6. When the temperature of the traction motors or pump
motors exceeds 80 °C, the combined instrument 6P2 applies +24 Volt to the two fans 9M1 and 9M2.
