Linde E30 - Renewing the Seat Switch

Service Training
Page 2
Section 2.3
2.3.1.1 RENEWING THE SEAT SWITCH
- Pull out the lower fastener on the driver’s seat gaiter.
- Push the gaiter up.
- Remove the socket head screw (2) and washer (1).
- Renew the microscwitch (9) after disconnecting the cable tie (5).

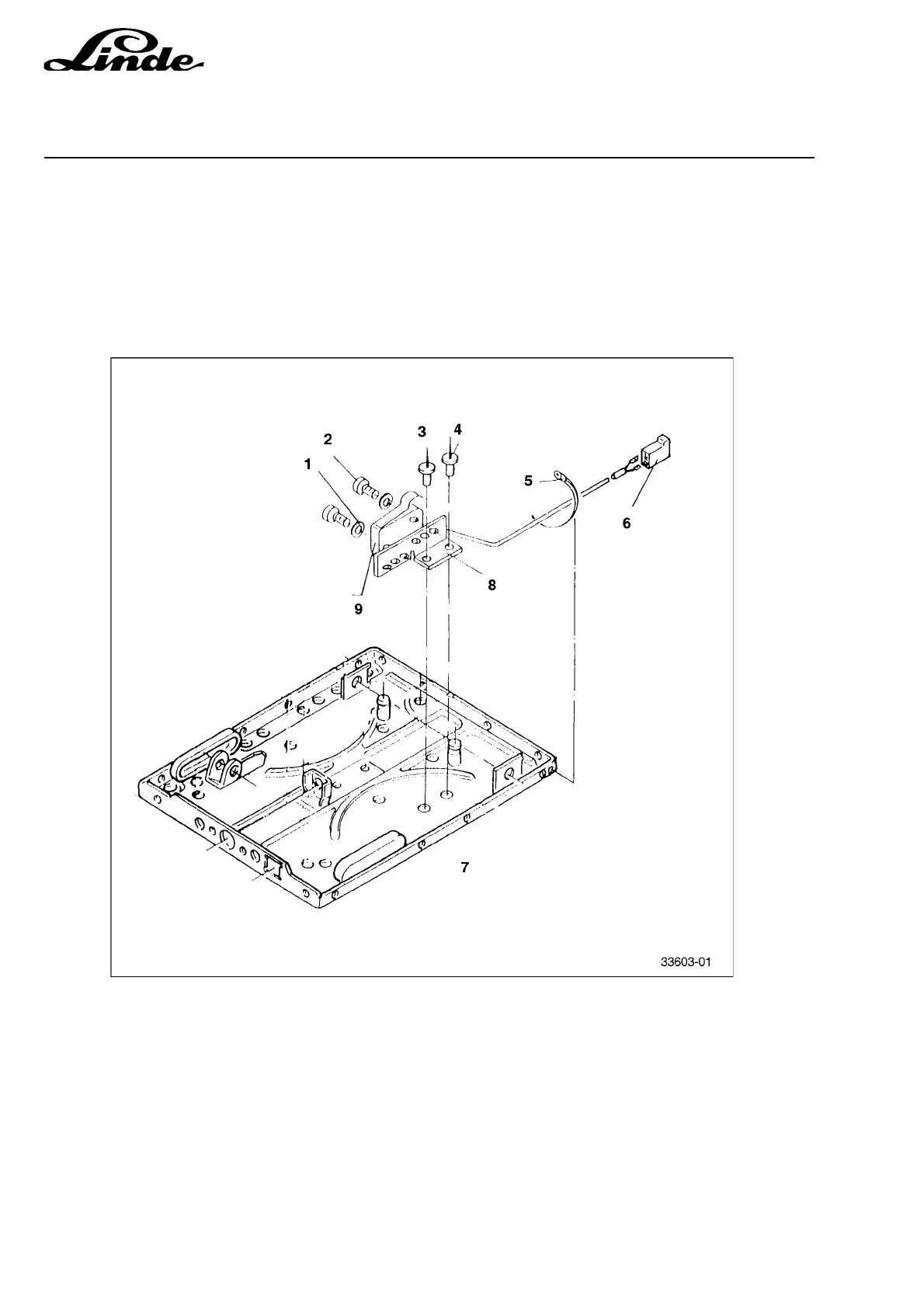

1 Washer
2 Socket head screw
3 Holding plug
4 Holding plug
5 Cable tie
6 Cable connector
7 Base plate
8 Bracket
9 Microswitch
