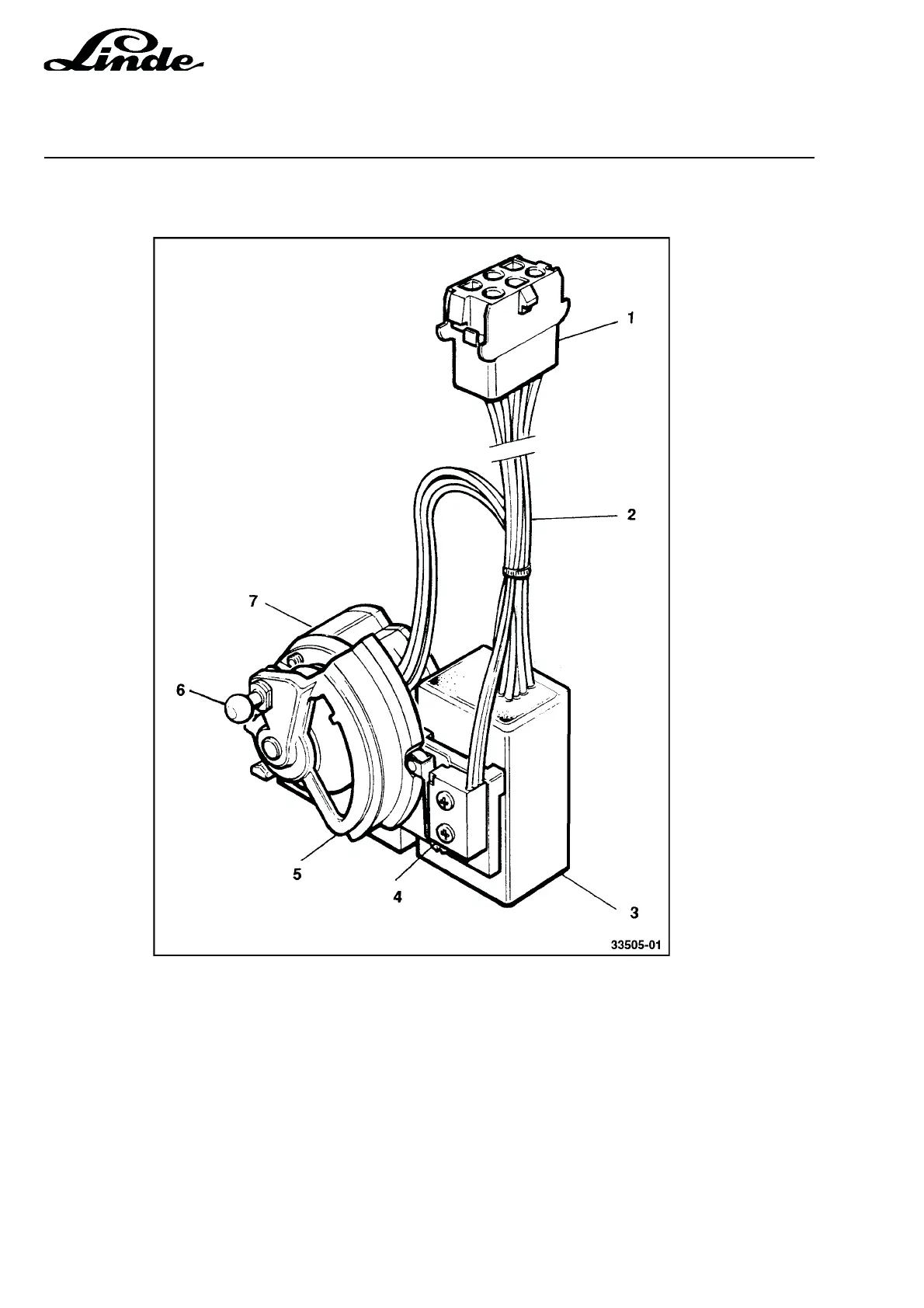

DESCRIPTION

1 Connector

2 Cable harness

3 Transducer

4 Microswitch

5 Control cam

6 Ball

7 Potentiometer
