Service Training
Section 2.6
Page 17

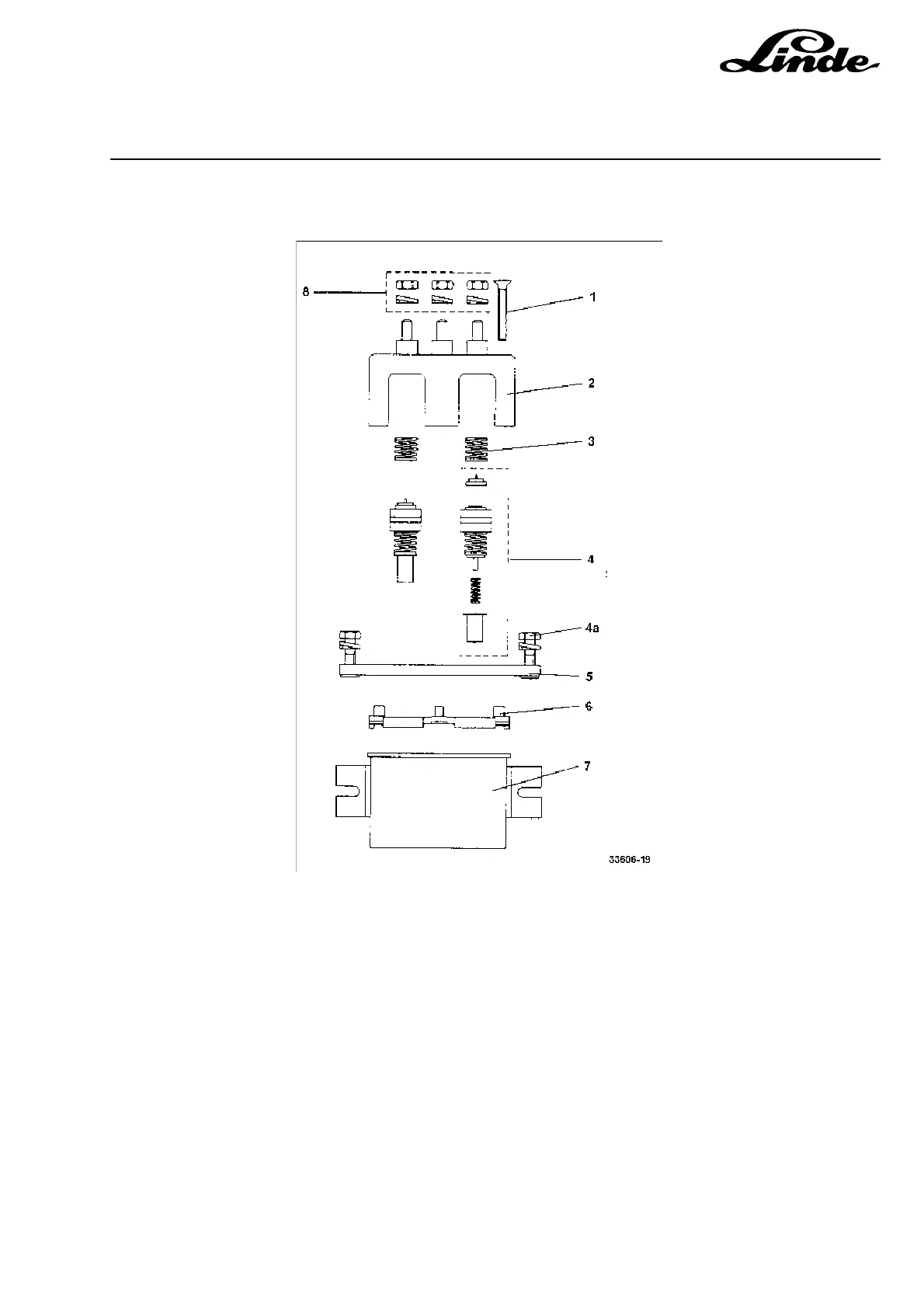

CONTACTOR TIP RENEWAL
- Remove the hexagonal nuts (8), disconnect the electric cables.
- Remove the hexagonal nuts (4a) on the tip plate (5) and disconnect the electric cables.
- Remove the Phillips screws (1) and take off the cover (2). (Note the position of the + mark.)
- Remove the movable tip (4) along with the tip spring (3).
- Remove the tip plate (5).
- Renew the plastic part (6).
- Install new tip plate (5).
- Install a new tip (4) along with a new tip spring (3).
- Renew the fixed contacts on the cover (2).
- Install the cover (2), ensuring that the + mark is correctly positioned.
NOTE: The contactor tip kit consists of items 3, 4, 5 and 6 and the fixed tips in the cover.
