IN-WALL® Slide-out Service Manual
6. Pull motor up and tip the bottom of the motor
out of the notch to remove it (Fig. 28).
7. Place new motor into the H-column, making
sure that the wiring is facing the back of the
H-Column.
NOTE: Look into the column and note the orientation
of the coupler and set screw holes in the
bearing block. Rotate the drive shaft on
the motor to approximately align with the
coupler before sliding the new motor into
the column.
8. While applying pressure to the top of the motor,
push on the room, which will slowly rotate the
torque shaft so the coupler and torque shaft can
line up with the motor shaft. Once they are lined
up, the motor will drop into place (Fig. 29).
9. Reattach the wiring harness.
10. Push the wipe seal back into position (Fig. 30).
11. Fasten the wipe seal to the H-column with fast-
bonding adhesive.
12. Replace the bulb seal (Fig. 30).
13. Replace the motor retention screw on the
outside of the H-column.

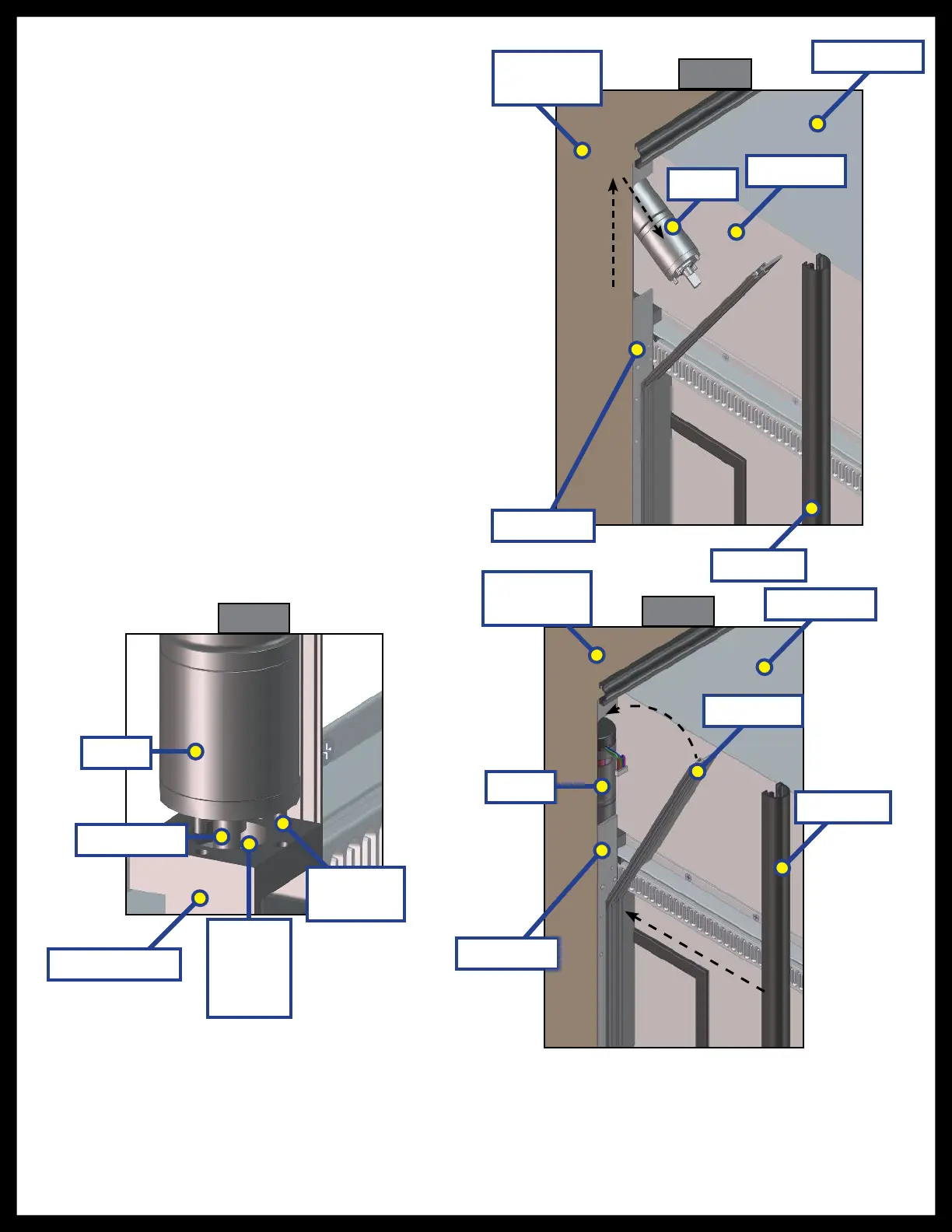

Fig. 28
Fig. 29
Fig. 30
Motor
Motor
Drive Shaft
Bearing Block
Coupler
(Inside
Bearing
Block)
Set Screw
Pins
Inside Wall
of Coach
Inside Wall
of Coach
Slide Room
Slide Room
Wipe Seal
Wipe Seal
H-Column
H-Column
Bulb Seal
Bulb Seal
Motor
