Lippert Components In-Wall Slide-Out User Manual

Rev: 06.14.2016
Page 16
IN-WALL® Slide-out Service Manual
Without Motor Notch (Old Style)
NOTE: There MUST be access to both the interior and exterior of the coach to perform this procedure.
1. Extend the slide-out to halfway out of the coach.
2. Adequately support the slide room, but do not lift it.
3. From the exterior, slide the bulb seal down to access the motor retention screw (Fig. 31).
4. Remove the motor retention screw (Fig. 31).
5. Remove the screws out of the H-column from top to bottom (Fig. 32).
6. Unplug the wiring harness from the motor.

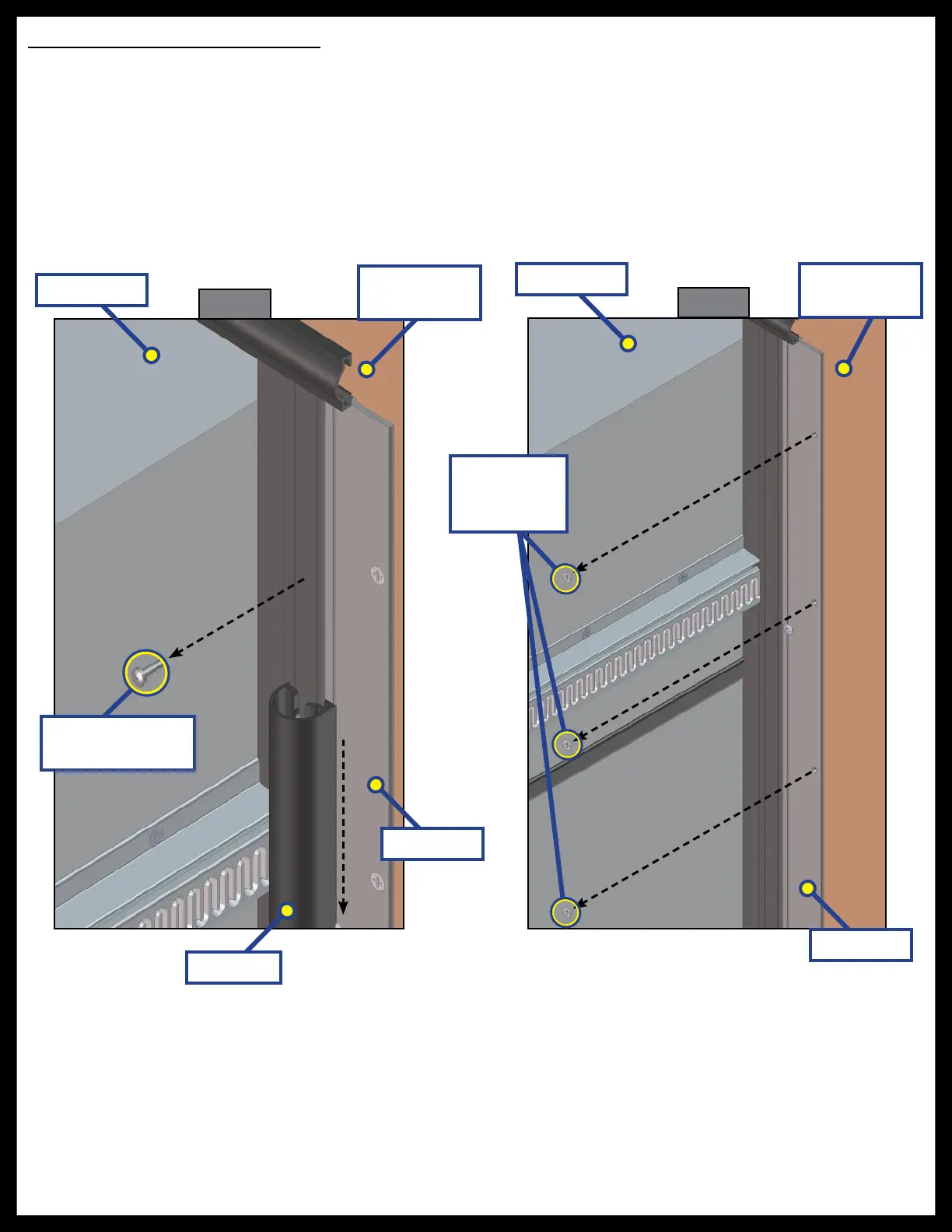

Fig. 31
Fig. 32
Slide Room
Slide Room
Outside Wall
of Coach
Outside Wall
of Coach
Motor Retention
Screw
Bulb Seal
H-Column
H-Column
H-Column
Attachment
Screw
