Lippert Components In-Wall Slide-Out User Manual

Rev: 06.14.2016
Page 7
IN-WALL® Slide-out Service Manual

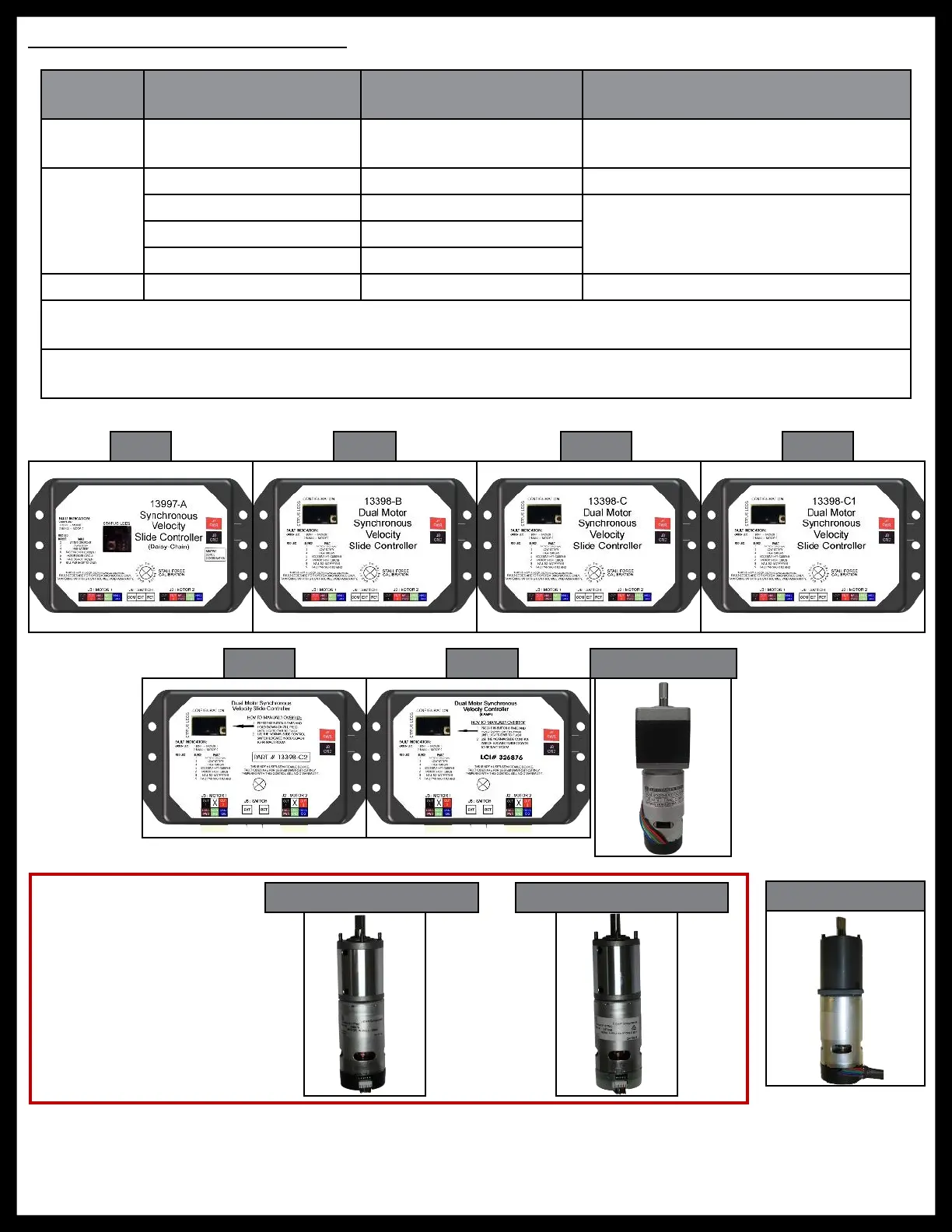

Motor and Controller Compatibility
Part # Controller Version
Controller
Replacement
Motor(s) Used
239657 A (Daisy Chain) (Fig. 8) A Only
Round-Square (Fig. 14), Round-
Round (Fig. 15A)
211852
B (Fig. 9) B/C2* Only Round Square (Fig. 14)
C (Fig. 10) C/C2* Only
Round-Round (Fig. 15A, 15B), Round-
Square Plate (Fig. 16)
C1 (Fig.11) C1/C2* Only
C2 (Fig. 12) C2
326876 8 Amp (Fig. 13) 8 Amp Only Round-Round (Fig.15B)
NOTE: Always replace the motor in the system with the same motor except the Round-Square Plate
(Fig. 16), which is obsolete. That motor will be replaced with the Round-Round (Fig. 15A, 15B).
NOTE: (*) denotes that (2) new motor harnesses MUST be ordered, and re-wiring instructions MUST be
used. See page 13.
Fig. 8 Fig. 9 Fig. 10 Fig. 11
Fig. 12 Fig. 13
Fig. 14 - 229466
Fig. 15A - 236575, 300:1
Fig. 16 - Obsolete
Fig. 15B - 287298, 500:1
NOTE: Ensure that a 300:1
motor is replaced with a
300:1 motor (Fig. 15A),
and that a 500:1 motor
is replaced with a 500:1
motor (Fig. 15B).
