Lippert Components In-Wall Slide-Out User Manual

Rev: 06.14.2016
Page 25
IN-WALL® Slide-out Service Manual
IN-WALL
®
SLIDE-OUT COMPONENTS
SLIDEOUTS
A
D
E
B
C

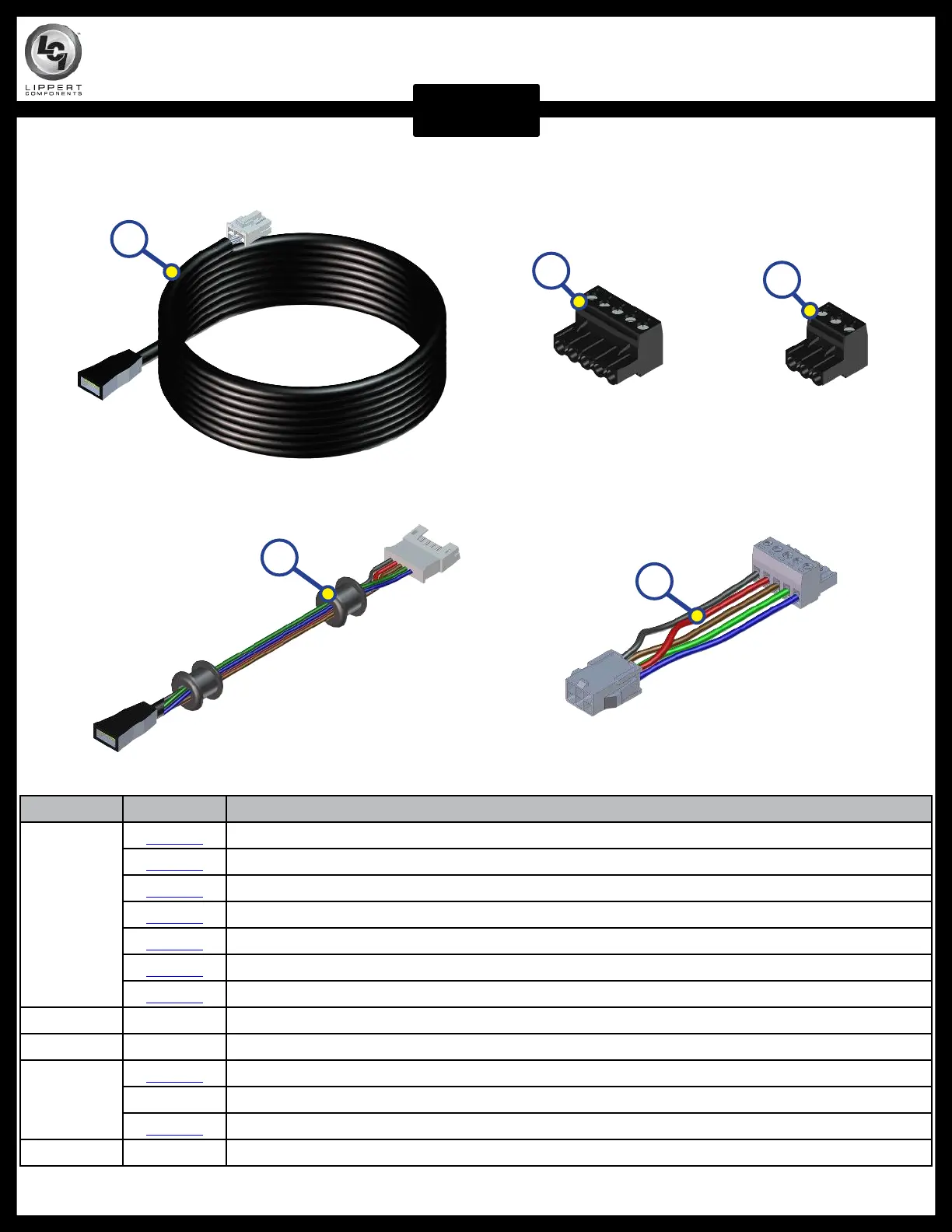

Callout Part # Description
A
238744 5 ft. Controller to Motor Harness
238990 10 ft. Controller to Motor Harness
247768 15 ft. Controller to Motor Harness
229755 20 ft. Controller to Motor Harness
238991 25 ft. Controller to Motor Harness
229756 30 ft. Controller to Motor Harness
238992 35 ft. Controller to Motor Harness
B 229758 Harness Connectors 5 Wires
C 229759 Harness Connectors 3 Wires
D
241834 5 ft. Interconnect Harness
241835 6 ft. Interconnect Harness
241836 8 ft. Interconnect Harness
E 258760 Slide Controller 6" Pigtail Harness (For use with B and C-1 Controllers with (A) harness)
