IN-WALL® Slide-out Service Manual

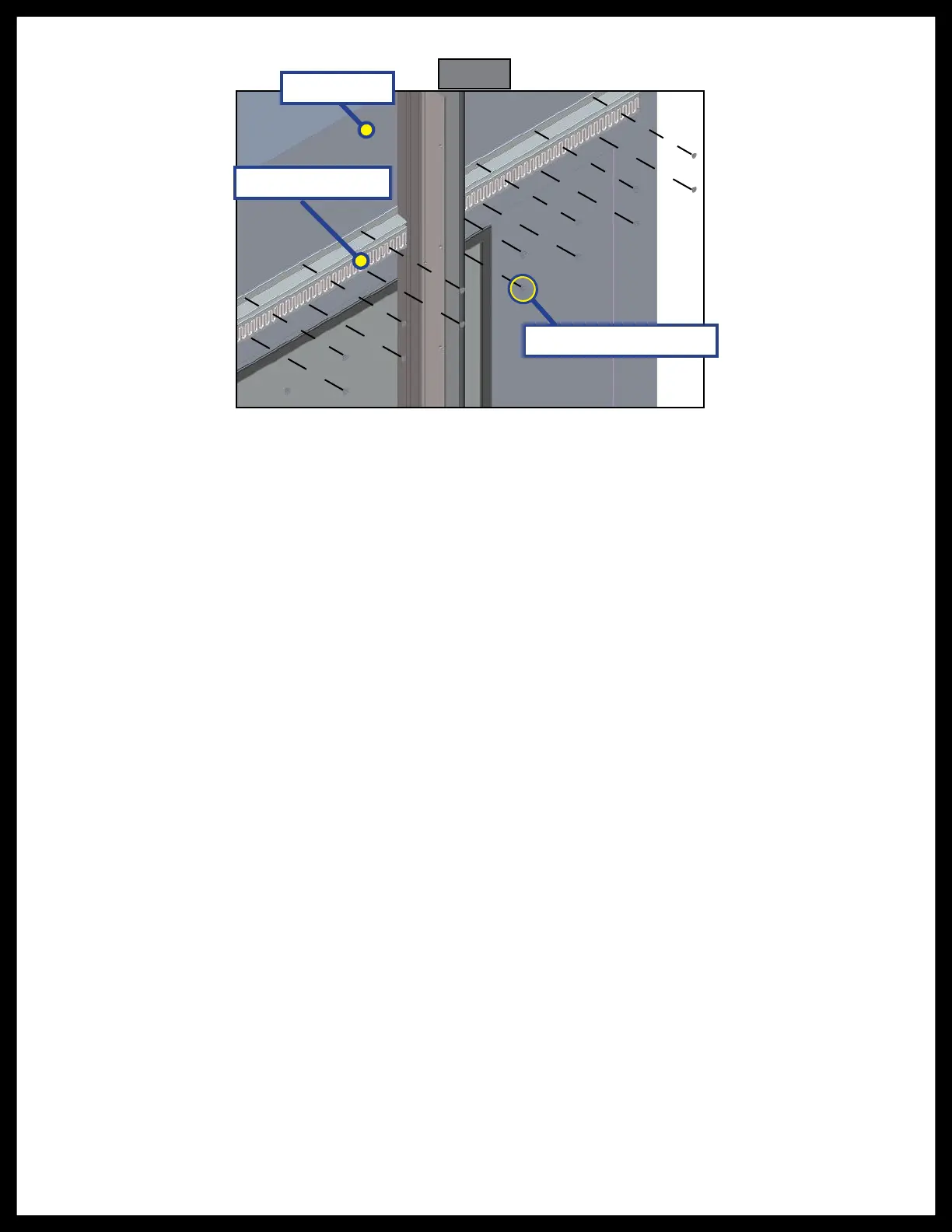

11. Remove all screws from the gear racks (Fig. 40).
Upper Gear Rack
#10 Pan Head Screws
Slide Room
Fig. 40
12. You may need to pry the gear racks away from the sides of the slide room with a flathead screwdriver
or putty knife. Do this carefully so you don’t damage the finish on the side of the slide room.
13. Carefully slide the ends of the gear racks past the bulb seal on the T-molding.
14. Pull the full system out and set aside.
NOTE: LCI recommends that inspection and repair of the assembly be done on a clear workbench to
prevent further damage to the system.
