CHAPTER 6: SPARE PARTS

6-54

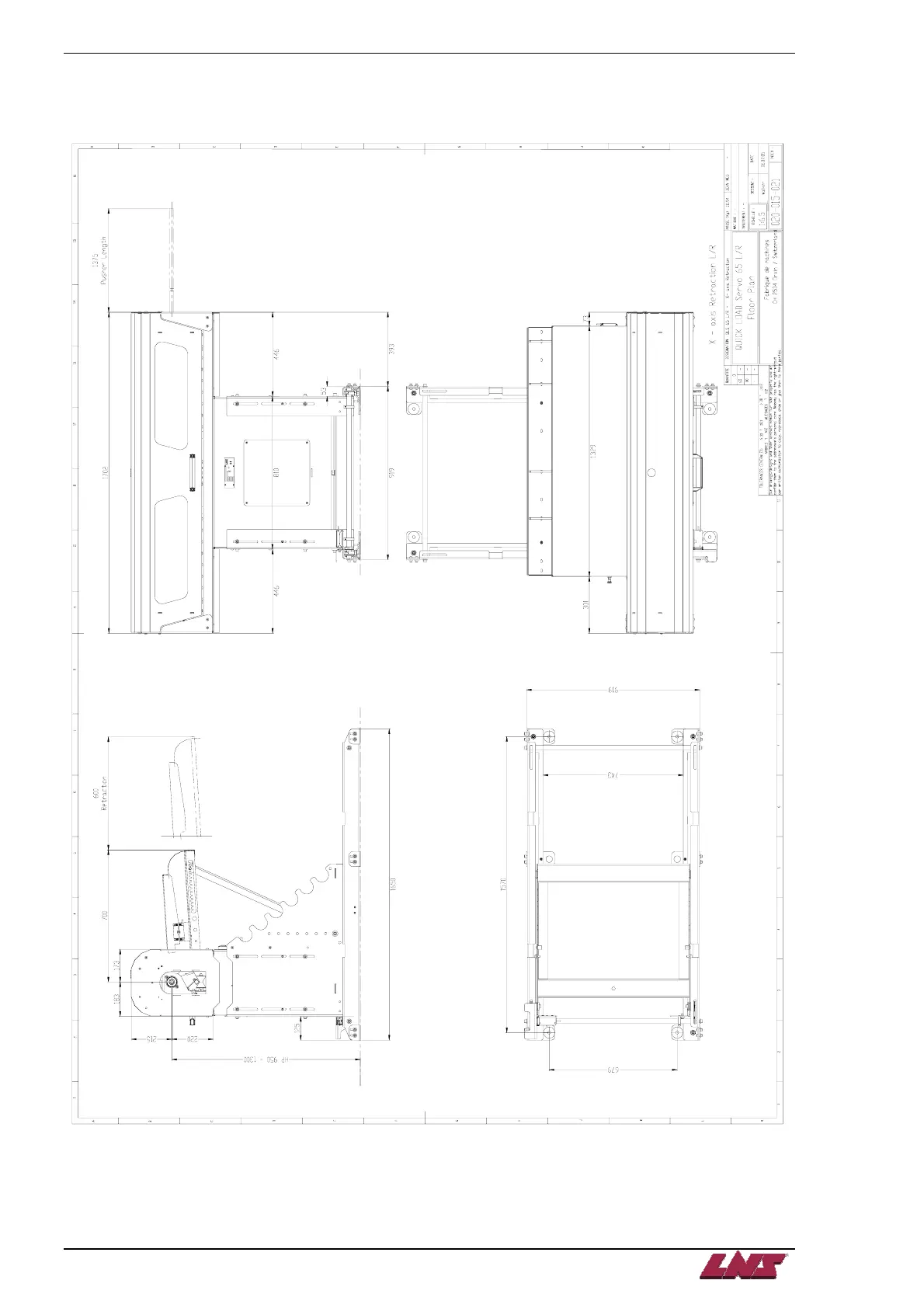

020.015.021 Assembly QLS 65 left/rear – transversal retraction

QUICK LOAD SERVO 65/80

Table of Contents

Default Chapter2
- Table of Contents2
Chapter 1 Alarms4
- Switches and Cells List5
- A01 - Emergency Stop Line Open6
- A02 - Main Access Cover Open7
- A03 - Magazine Protection Grid Open8
- A04 - Bar Feeder Retracted or Not Locked in Its Working Position9
- A11 - Measuring Cell SQ3 Signal Defective10
- A12 - Home Position Proximity Switch SQ5 Signal Missing11
- A15 - Safety Time for Loading Channel up and down Motion Elapsed12
- A16 - Safety Time for Diameter Adjustment Elapsed13
- A21 - Measuring Cell SQ3 Activated too Early14
- A22 - Signal A2 "Lathe in Automatic Mode" Interrupted During Loading Cycle15
- A23 - Safety Time for Loading Profiled Bar Elapsed16
- A24 - Safety Time for Top-Cut Positioning Elapsed17
- A25 - Lathe DID Not Resume Its Production Cycle18
- A26 - Clamping Device Closed Prior to Completing the Feed out19
- A27 - Clamping Device Opened During Production Cycle Without Lathe Auto Mode20
- A28 - Parts Counting Parity Error by M-Code Quantity and Automatic Part Counting21
- A30 - Bar Stock Loading Error22
- A41 - Servo Amplifier / PLC Communication Fault23
- A42 - Servo Drive Alarm24
- A43 - Amplifier Battery Low25
- A44 - Servo Motor Not Ready26
- A45 - Servo Motor Positioning Error During Sequence27
- A50 - Servo Amplifier Firmware Not Compatible with PLC28
- Bar Feeder Software Sequence of Events29
- Mitsubishi Servo Amplifier Alarm List30
Chapter 238
Common Issues38
- Vibrations39
- Servo Motor Following Error During Sequence 940
- Part Feed out Accuracy41
Chapter 344
Procedures44
- Alignment Procedure45
- Pusher Changeover Procedure49
- Belt Tension Adjustment52
- Home Position Proximity Switch SQ5 Adjustment53
- Diameter Adjustment Motor Proximity Switch - SQ454
- Measuring Cell Adjustment - SQ355
- Pusher Reversing Distance57
- Reference Procedure58
- Calibration of the Loading Table60
Chapter 462
Software62
- Software / PLC Versions63
- Software Update64
- Battery Replacement66
Chapter 5 Maintenance68
Monthly Maintenance69
Annual Maintenance69
Chapter 6 Spare Parts70
Recommended Spare Parts List71
Mechanical Assemblies72
Base80
Crossing Slide89
Loading Mechanism92
Protections102
Foot104
Loading Magazine106
Retraction111
Pusher114
Accessories & Options120
Floor Plans122
