LNS Quick Load Servo 65 - Alignment Procedure

3- CHAPTER 3: PROCEDURES
3-2
Alignment Procedure
Conditions:
- Bar feed power on.
Procedure:
Step 1: Position the bar feed as close as possible to the rear of the lathe. The distance between the front of the
bar feed and the back of the spindle should be as small as possible.
Note: If obstacles prevent the bar feed from being positioned within 200 mm of the back of the
spindle an extension will be required.
Step 2: Level the bar feed in the x and y axis using a torpedo level. The level can be placed on the linear belt rail
to verify the y-axis and on the retract rails to verify the x-axis. Use the leveling screws on the retract to
adjust unit to level.

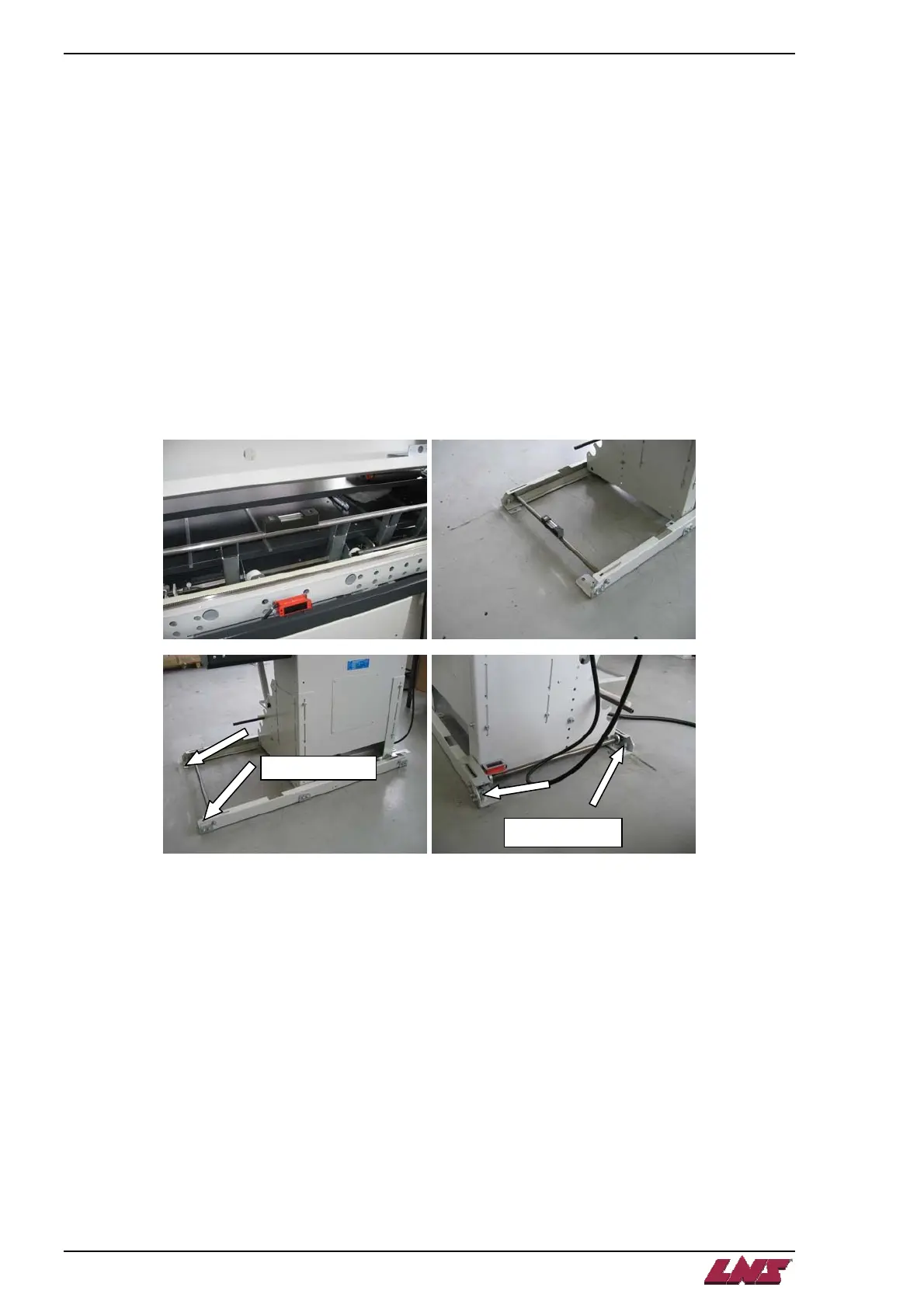

Leveling screws
Levelin
g
screws
QUICK LOAD SERVO 65/80
