CHAPTER 1: ALARMS
QUICK LOAD SERVO 65/80
1-5

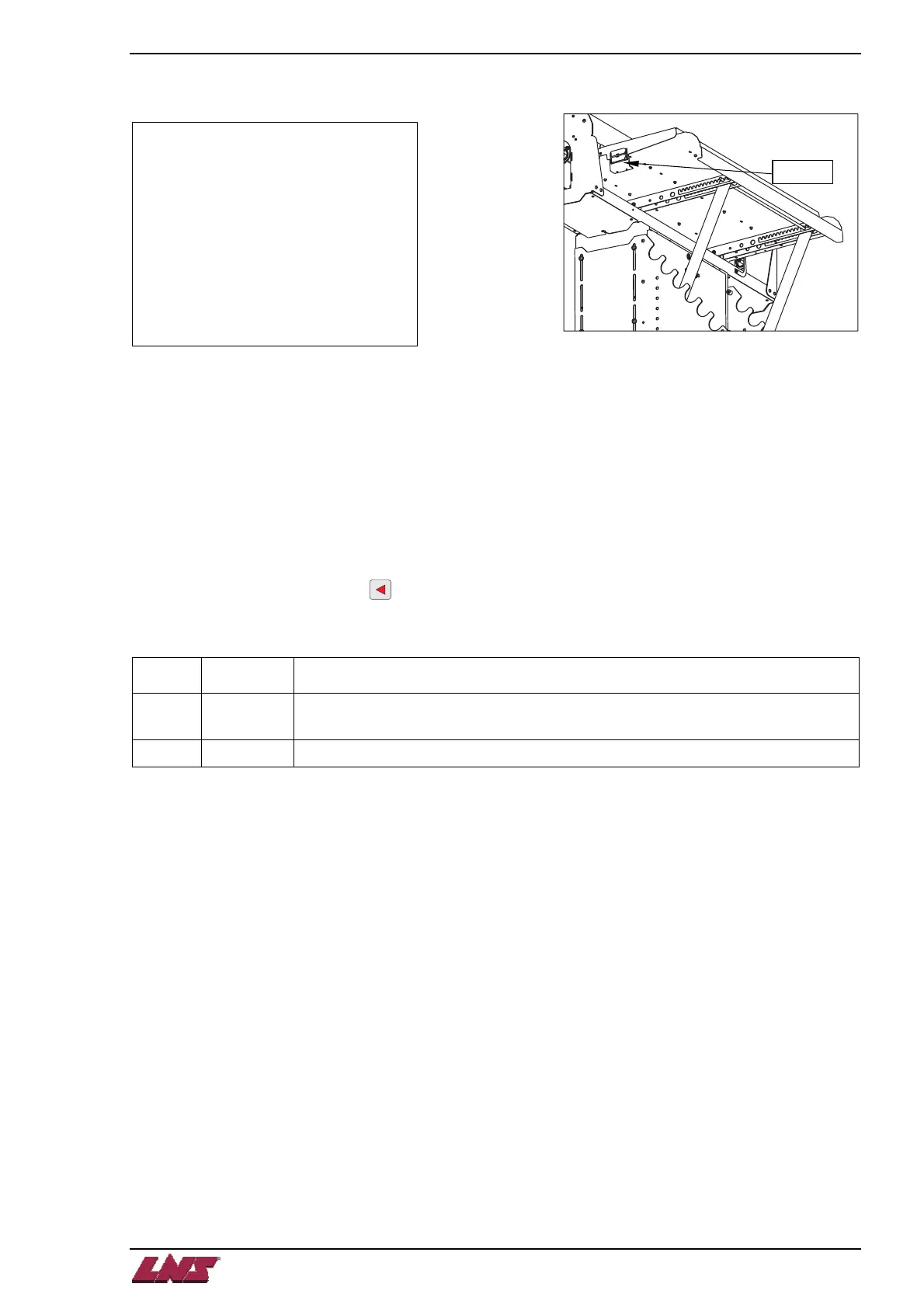

A03 – Magazine protection grid open
SQ11
MAGAZINE PROTECTION
GRID OPEN!
CLOSE GRID TO RESUME
OPERATIONS
A03
Description:
The « magazine protection grid open » occurs whenever the PLC does not detect input (I18 – SQ11). The
problem is generated when the protection grid on the bar feeder is open, or if the switch is defective.
Solution:
In the working screen, press the
key on the remote control. Press the key corresponding to Page
Down until the INPUTS page is displayed:
Case Input Solution
1 SQ11 = 0
• Close the protection grid.
• Check that the SQ11 switch is adjusted correctly.
2 SQ11 = 1 Press the STOP button on the remote control to reset the alarm.
