LNS Quick Load Servo 65 - Switches and Cells List

CHAPTER 1: ALARMS 1-2

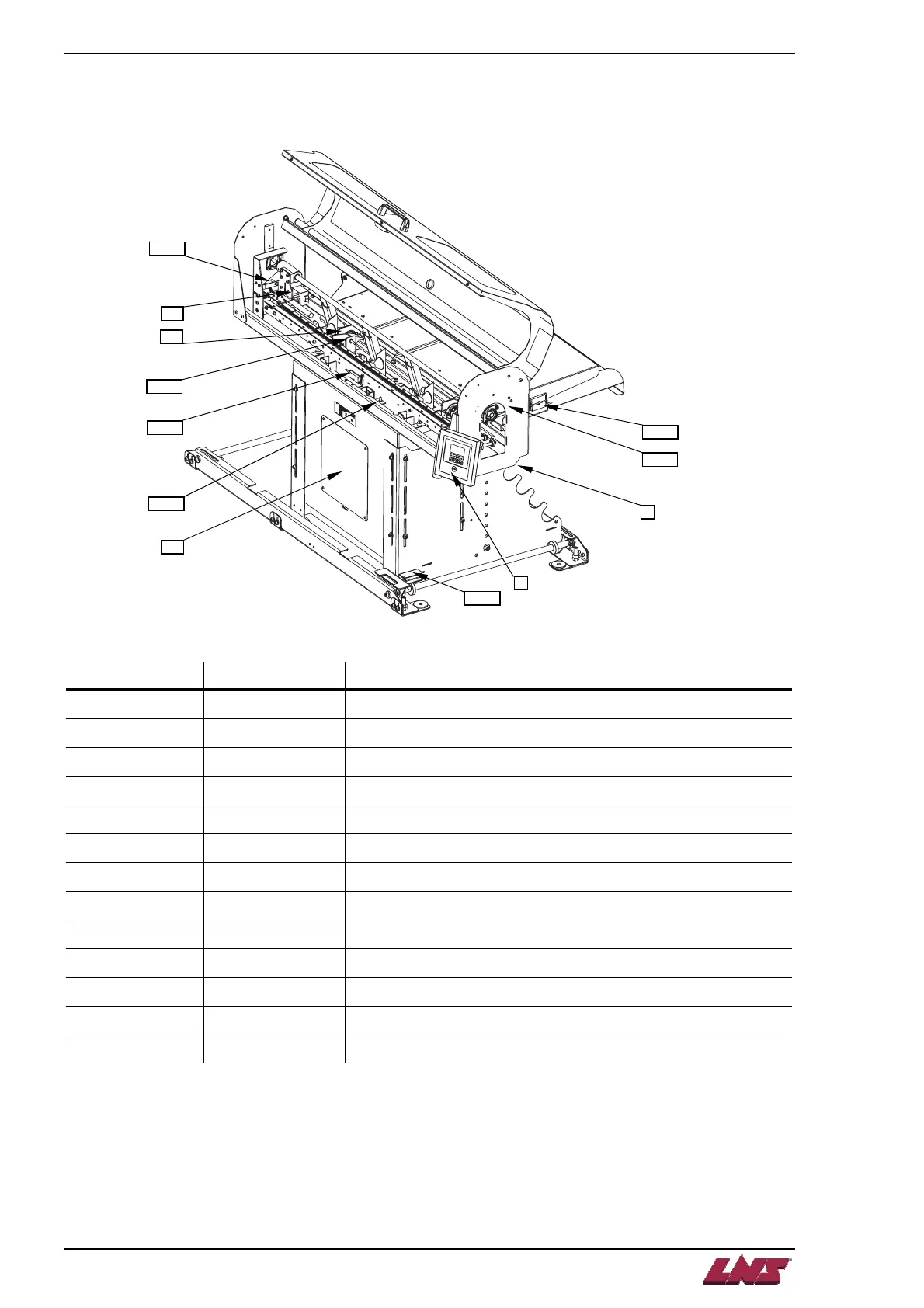

Switches and cells list
S
Q
5
M1
S
Q
10
M3
S
Q
4
S
Q
1
A
S
Q
11
S
Q
12
S
Q
3
B
M2
Designation Part No. Description
A 4.869 Remote control station
B - Electrical cabinet (not shown here)
M 1 4.706 Servo motor
M 2 4.839 Loading table motor
M 3 4.838 Diameter selection fingers motor
QS 1 4.242 Main disconnect switch
SQ 1 4.391 Proximity switch, loading table in lower position
SQ 3 4.474 Positioning optical cell
SQ 4 4.391 Proximity switch, diameter selection fingers in origin position
SQ 5 4.391 Pusher in home position switch
SQ 10 4.763 Cover closed safety switch
SQ 11 4.763 Magazine cover closed safety switch
SQ 12 4.763 Retraction system safety switch
QUICK LOAD SERVO 65/80
