LNS Quick Load Servo 65 - Software Update

CHAPTER 4: SOFTWARE
QUICK LOAD SERVO 65/80
4-3
Software Update
Conditions:
- Bar feed power on.
Procedure:

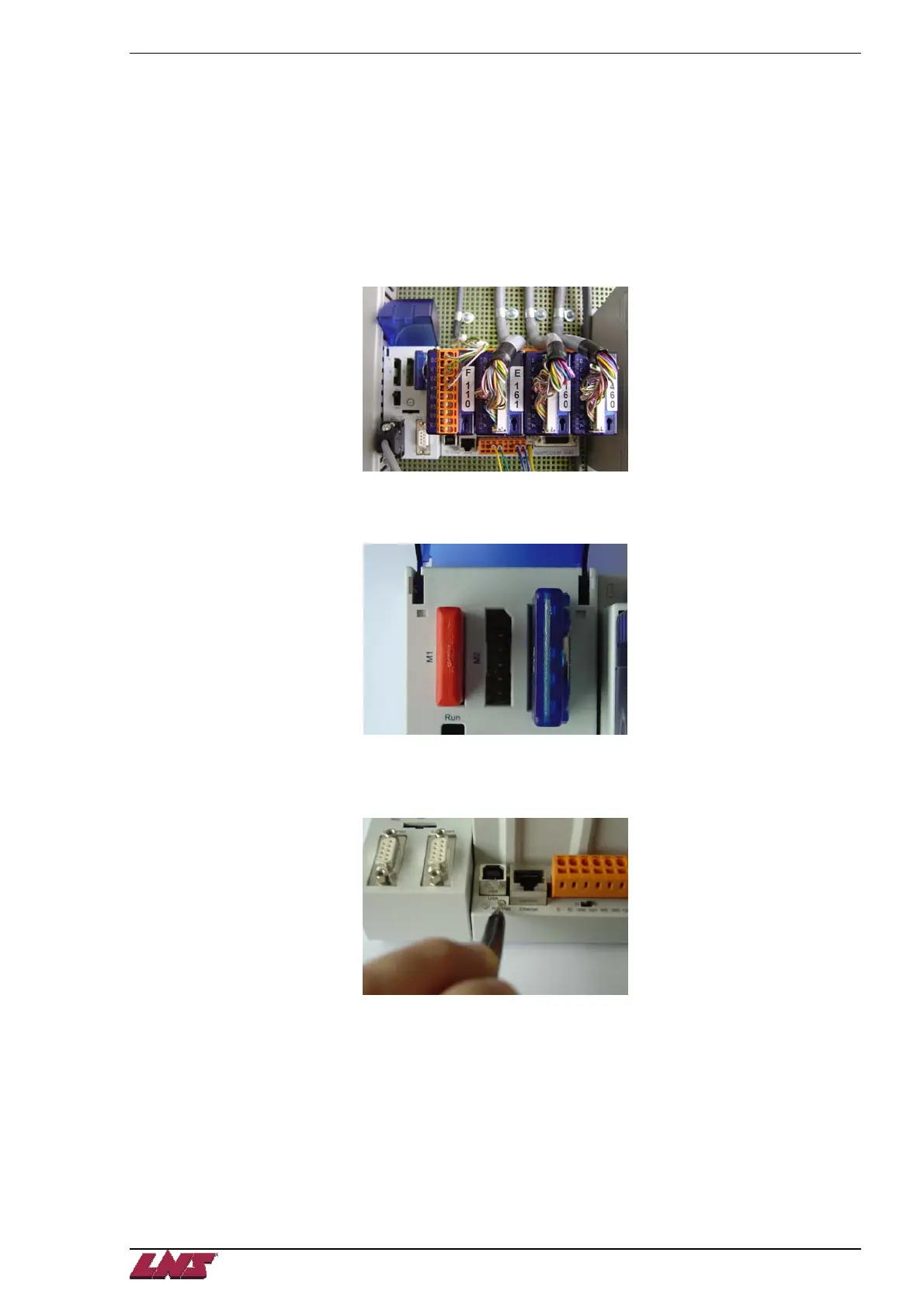

Step 1: In the electrical cabinet, open the PLC cover.
Step 2: Insert the card containing the new software in the "M1" labeled bay. A chamfer avoids any bad insertion.
Step 3: With a sharp object, press on the little button labeled Run/Halt for approx. 3 seconds, until the LED located
at its left blinks.
