13 Operating with Interlock
(not part of standard
LR810 installation kit)
The interlock feature is used to ensure that the bucket or forks are in the
correct position for weighing.
Interlocking is an optional feature which can be enabled when the LR810 is
installed.
When working with interlock enabled, you carry out weighing in the normal
way, except that the bucket or forks of the machine must be in the correct
position before a weight can be measured.

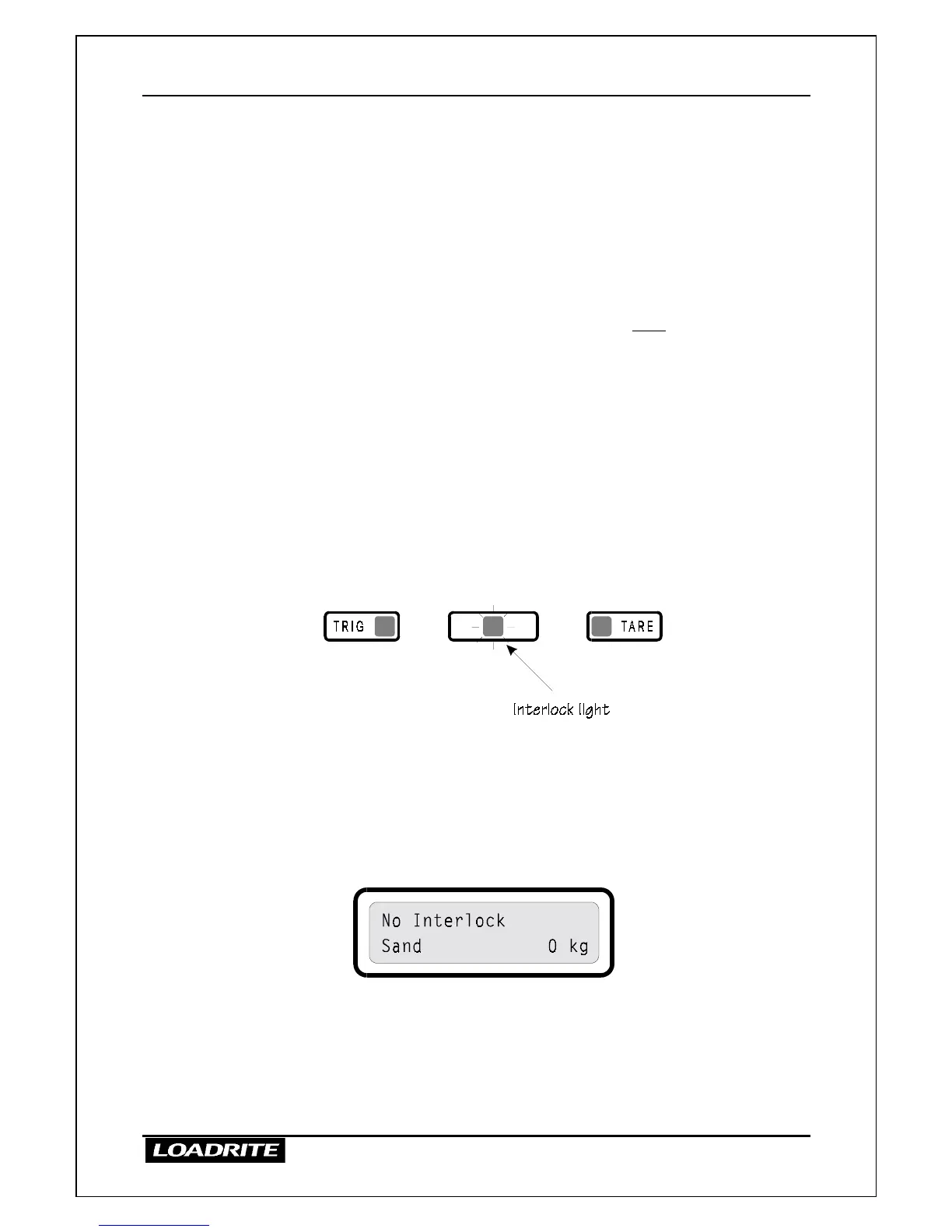

The correct position is indicated when the interlock light (centre light on the
LR810) is on.
>
>>
>
To weigh with interlocking
1. Make sure the LR810 is Ready.
2. Operate the bucket to pick up the load.
3. Move the bucket to the correct lifting position.
The interlock light comes on.
4. Lift the load smoothly until the LR810 beeps and the TRIG light
comes on.
5. You can then add or subtract the load as normal.
If you attempt to weigh when the interlock light is not on, the LR810
displays a message and no weight is measured.
.
