Operating additional equipment
Connecting Loewe sound system
Setup
The arrangement of speakers and TV set can look like the illustration
below:
The front and surround speakers should be installed symmetrically to the
TV set and to your sitting position.
You can place the subwoofer anywhere on the floor. We recommend
placing it in front asymmetrically next to the TV set.
If a centre speaker is used, it should be placed centrally below the TV set.
For the settings in the sound components wizard enter the distances of
the centre speaker, and the front and surround speakers to your sitting
position. This guarantees a natural spatial image of the sound.
TV set
Connecting
Switch off all devices before connecting.
The subwoofer is connected to the TV set via the AUDIO LINK interface.
Use the AUDIO LINK cable provided with the subwoofer.
Front
left
Surround
left
TV speaker
as centre
Subwoofer
Front
right
Surround
right

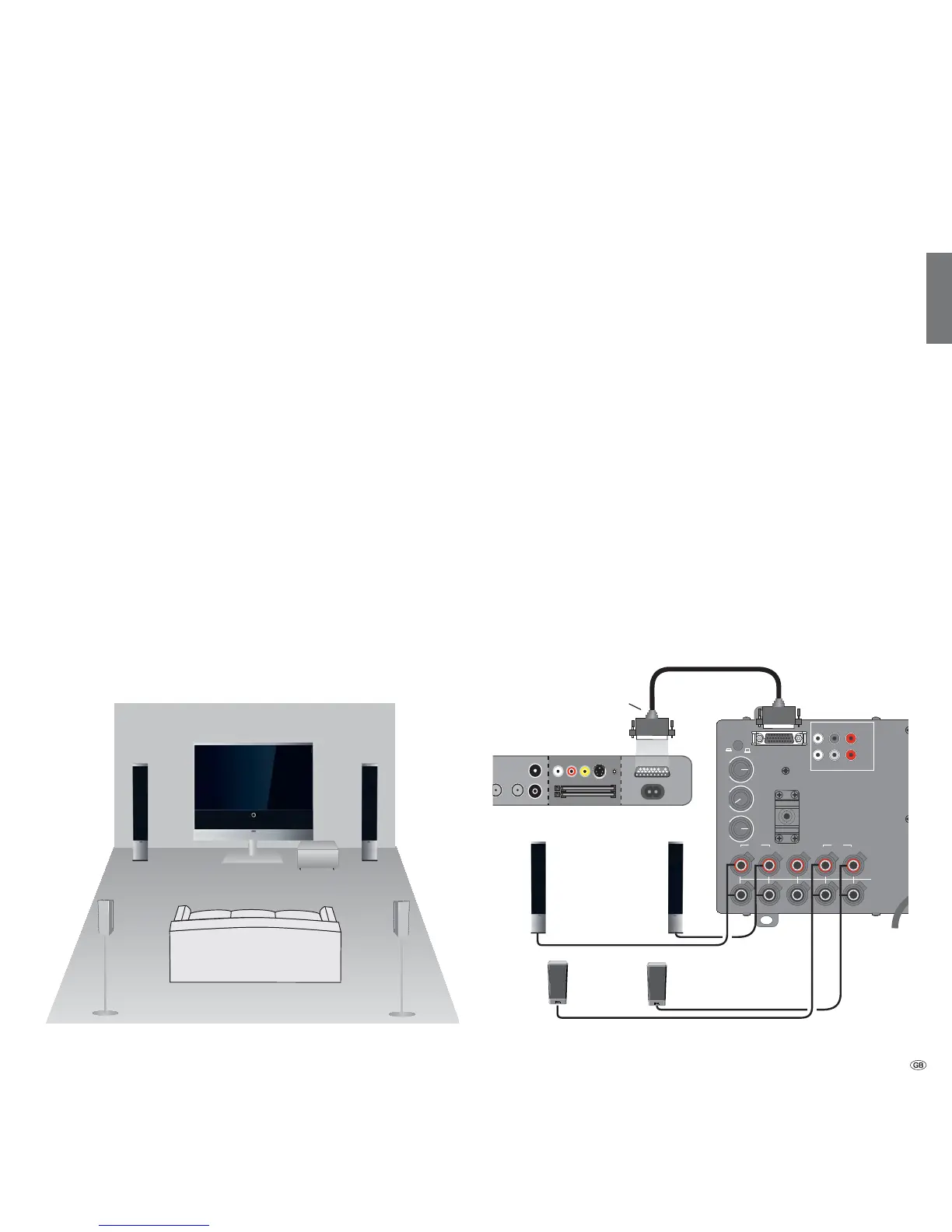

Installation example for a Loewe sound system Connecting Loewe sound systems to the TV set
AUDIO LINK cable
Reference Sound
Subwoofer
