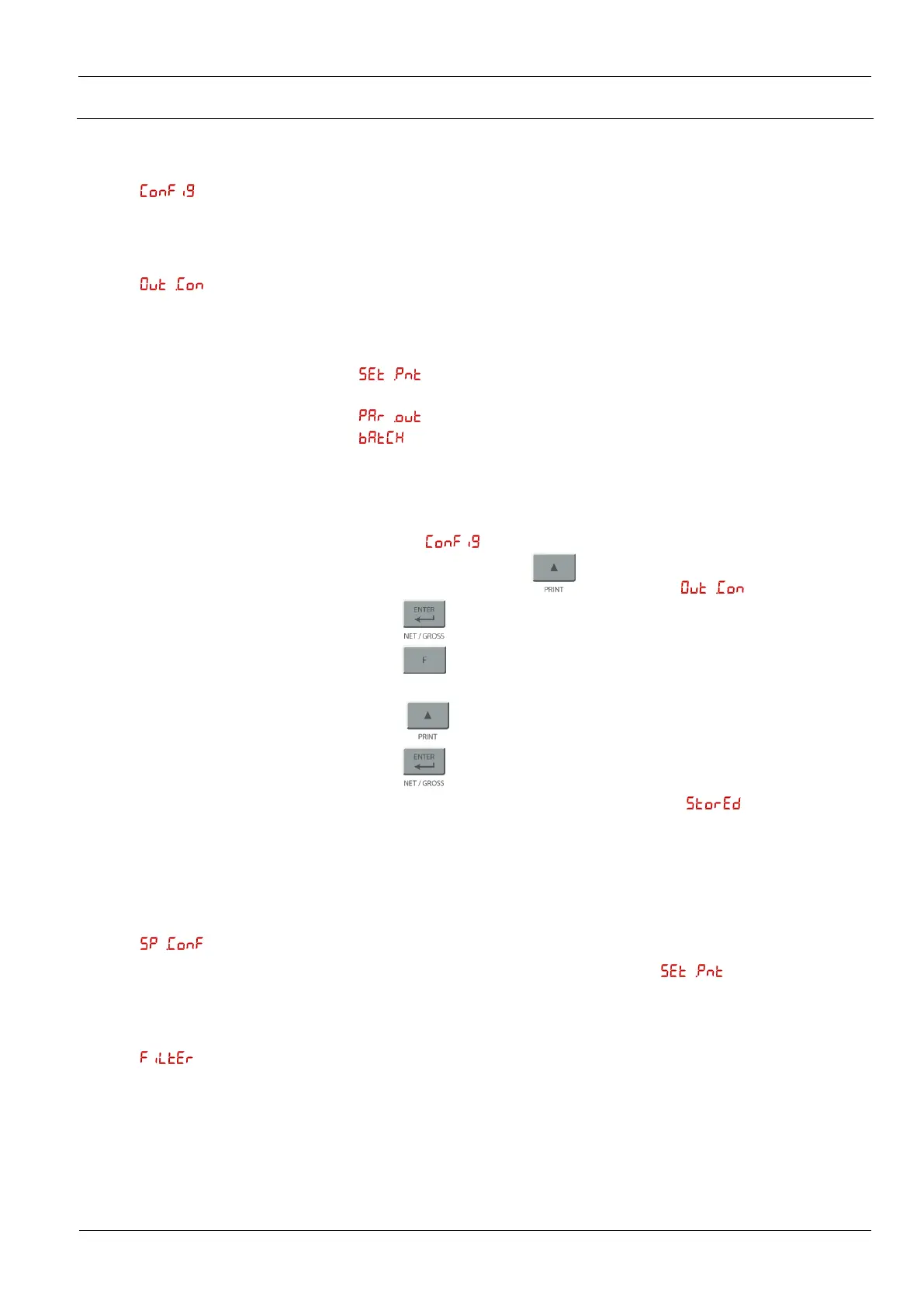

5.5 Parameterization of the instrument
5.5.1 Access to the
configuration menu
( )
Follow the instructions in section 5.4.2,
5.5.2 Output configuration
( )
This menu allows you to set the operating mode of the instrument outputs.
There are three operating modes:
 (default): setpoint mode. See paragraph 5.6 for the use and
configuration of the setpoint
 : to use the 8 outputs as a parallel output.
 : to use the instrument as a batcher. See chapter 6 for the use of
the instrument as a doser.
To change the operating mode:
 Enter the menu as described in paragraph 5.3.2.
 Scroll through the button until the menu .
 Press to enter.
 Press at any time to cancel and return to the previous menu.
 The display will show the actual operating mode. To change it use the
button until the desired item is not displayed.
 Press to confirm.
 At this point the instrument will show the letters and the procedure
is finished.
5.5.3 Configuration of
setpoint modality
intervention
( )
Active menu if the instrument is in setpoint mode ( ). See paragraph 5.6
for complete setpoint configuration.
5.5.4 Filter configuration
( )
In this menu you can set the digital filter (rolling average number of samples to
calculate the data weight to show to display and to be transmitted via Fieldbus).
It is possible set one of the following values: 1, 4, 8, 16, 32, 64.
To change the filtering value:
