MAINTENANCE MANUAL OF ENGINE
100

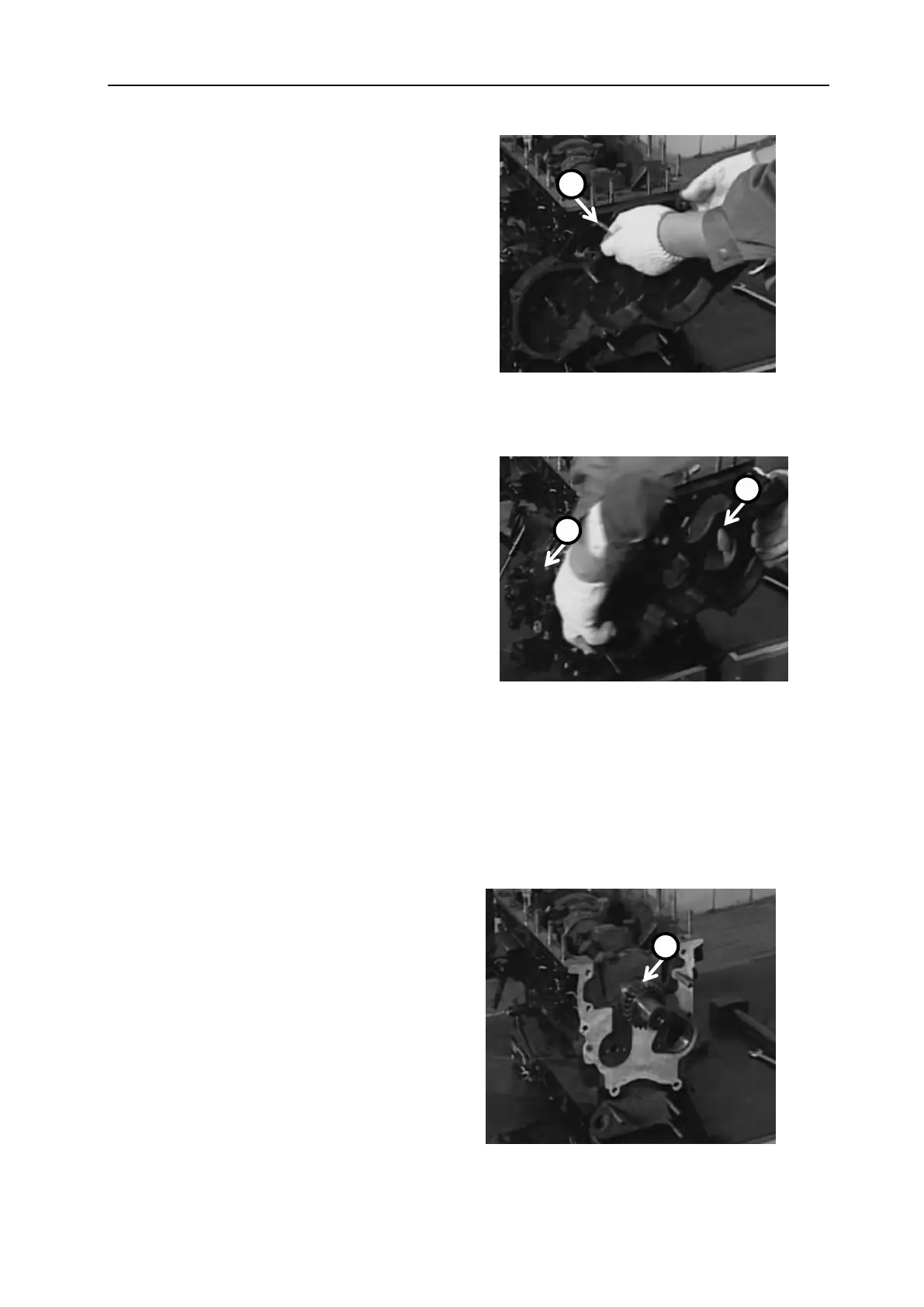

16. Dismantle the set bolt A for the timing gear
chamber.
A- Bolt
17. Dismantle the timing gear chamber A and fuel
injection pump B.
A-Timing gear chamber
B-Fuel injection pump
Attention: The timing gear chamber is connected
with the fuel injection pump, and they are not sepa-
rated.
Prior to removal of the fuel injection pump and if
no maintenance is required for the fuel injection
pump, it is able to make a mark on the fuel injection
pump and timing gear chamber, respectively, to fa-
cilitate subsequent installation.
18. Dismantle the crankshaft gear A.
A-Crankshaft gear
A
A
B
A
