Lovol KM/4L22 User Manual

MAINTENANCE MANUAL OF ENGINE
28

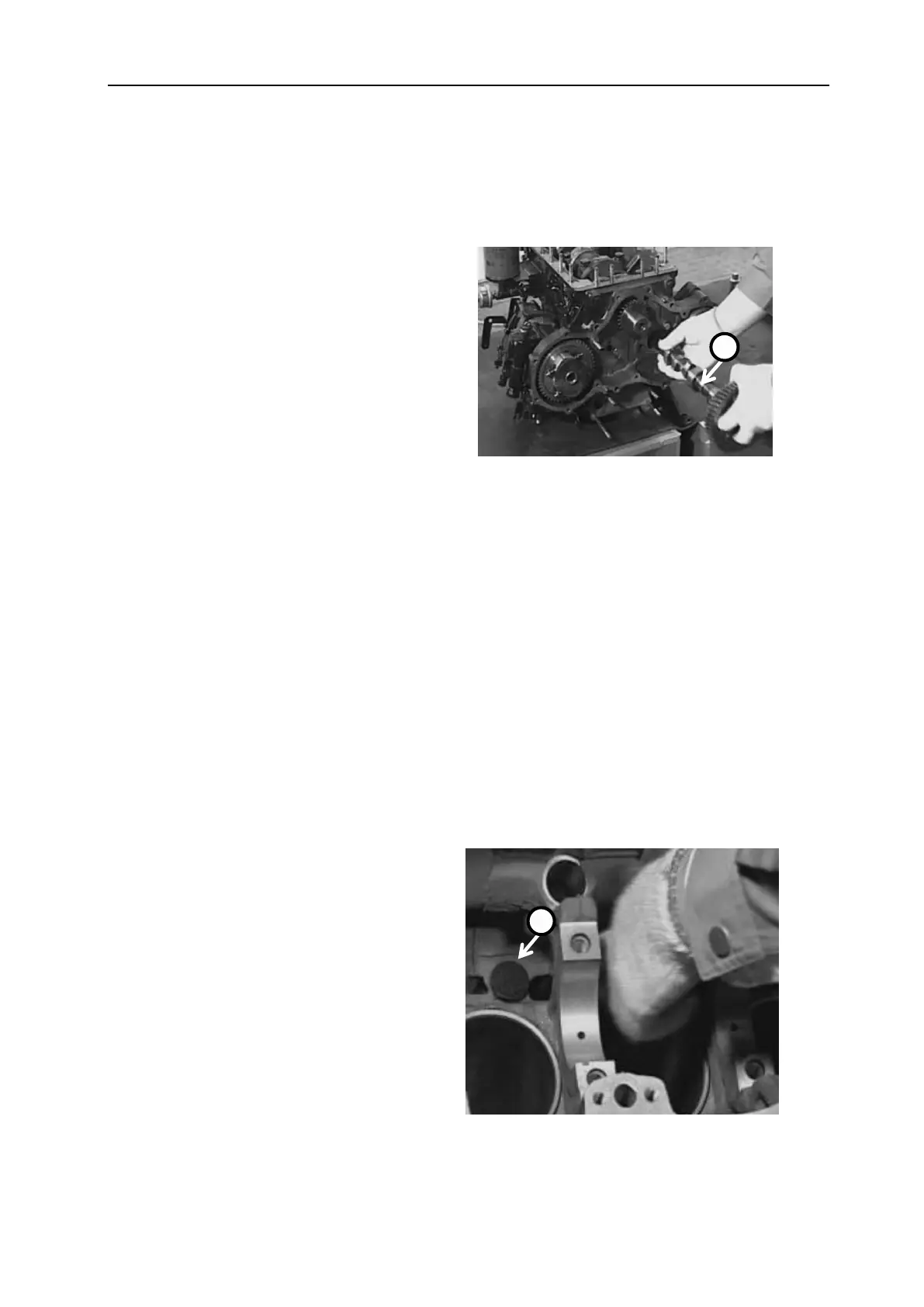

3.4 Dismantling the camshaft assembly
1. Dismantle the timing gear (see Section 7.3,
Chapter 7 of Part II).
2. Dismantle the camshaft (A).
A-Camshaft
3.5 Dismantling the valve tappet
1. Dismantle the crankshaft assembly (see Section
3.1, Chapter 2 of Part II).
2. Dismantle the piston-connecting rod assembly
(see Section 3.2, Chapter 2 of Part II).
3. Dismantle the valve tappet.
A-Valve tappet
