11. Monitoring
11-8
SV-iC5

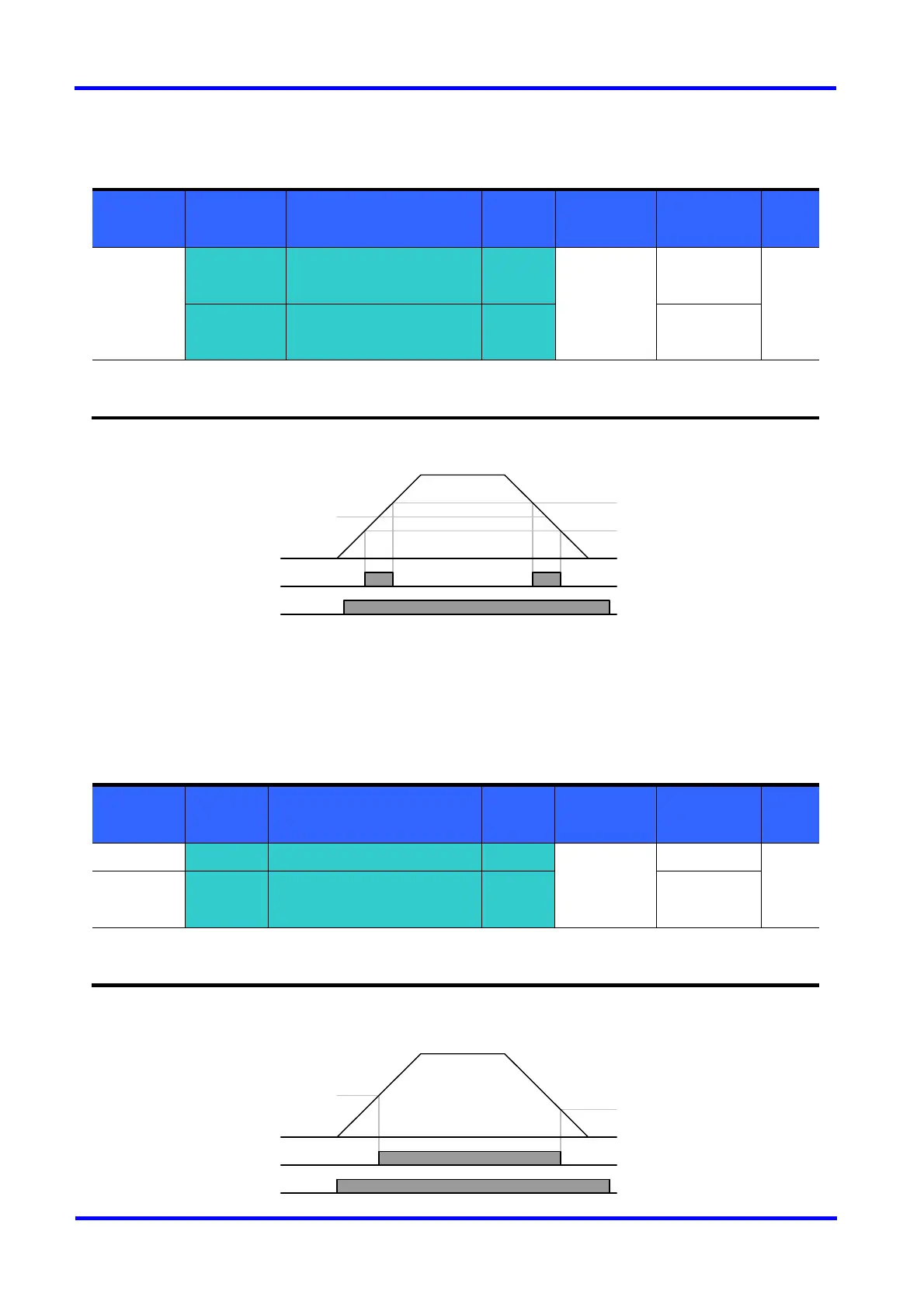

2 : FDT-3
 It activates when run frequency meets the following condition.
 Active condition: Absolute value (FDT level - run frequency) <= FDT Bandwidth/2
Group LED Display Parameter Name
Set
value
Min/Max
range
Factory
default
Unit
I/O group
I52
[Frequency Detection
level]
-
0/400
30.0
Hz
I53
[Frequency Detection
Bandwidth]
- 10.0
 It cannot be set above F21- [Max frequency].
 When setting I52 and I53 to 30.0Hz and 10.0 Hz, respectively
3 : FDT-4
 Become active when run frequency meets the following condition.
 Active condition
Accel time: Run Frequency >= FDT Level
Decel time: Run Frequency > (FDT Level – FDT Bandwidth/2)
Group
LED
Display
Description
Set
value
Min/Max
range
Factory
default
Unit
I/O group I52 [Frequency Detection level] -
0/400
30.0
Hz
I53
[Frequency Detection
Bandwidth]
- 10.0
 Cannot be set above F21- [Max Frequency].
 When setting I52, I53 to 30.0 Hz and 10.0Hz, respectively.
Freq.
MO
Run
command
25Hz
30Hz
35Hz
Freq.
MO
Run
command
25Hz
30Hz
