1. Basic information and precautions
1.1 Important precautions
Unpacking and
inspection
 Inspect the inverter for any damage that may have occurred during shipping. To verify the
inverter unit is the correct one for the application you need, check the inverter type, output
ratings on the nameplate and the inverter is intact.
 Type of the inverter
SV 004 iC5 - 1 F
LS
Inverter
Motor rating Series Name
-
Input EMI Filter option
004 0.4 [kW]
Single phase
standard inverter
(200V)
1
Single
phase
F
Built-in
Filter
008 0.75 [kW]
-
N/A
015 1.5 [kW]
022 2.2 [kW]
 Accessories
If you have found any discrepancy, damage, etc., contact your sales representative.
Preparations of
instruments and
parts required
for operation
Instruments and parts to be prepared depend on how the inverter is operated. Prepare equipment
and parts as necessary.
Installation To operate the inverter with high performance for a long time, install the inverter in a proper place in
the correct direction and with proper clearances (Refer to 2. Installation, P 2-1).
Wiring Connect the power supply, motor and operation signals (control signals) to the terminal block. Note
that incorrect connection may damage the inverter and peripheral devices (Refer to 3. Wiring,
P 3-1).

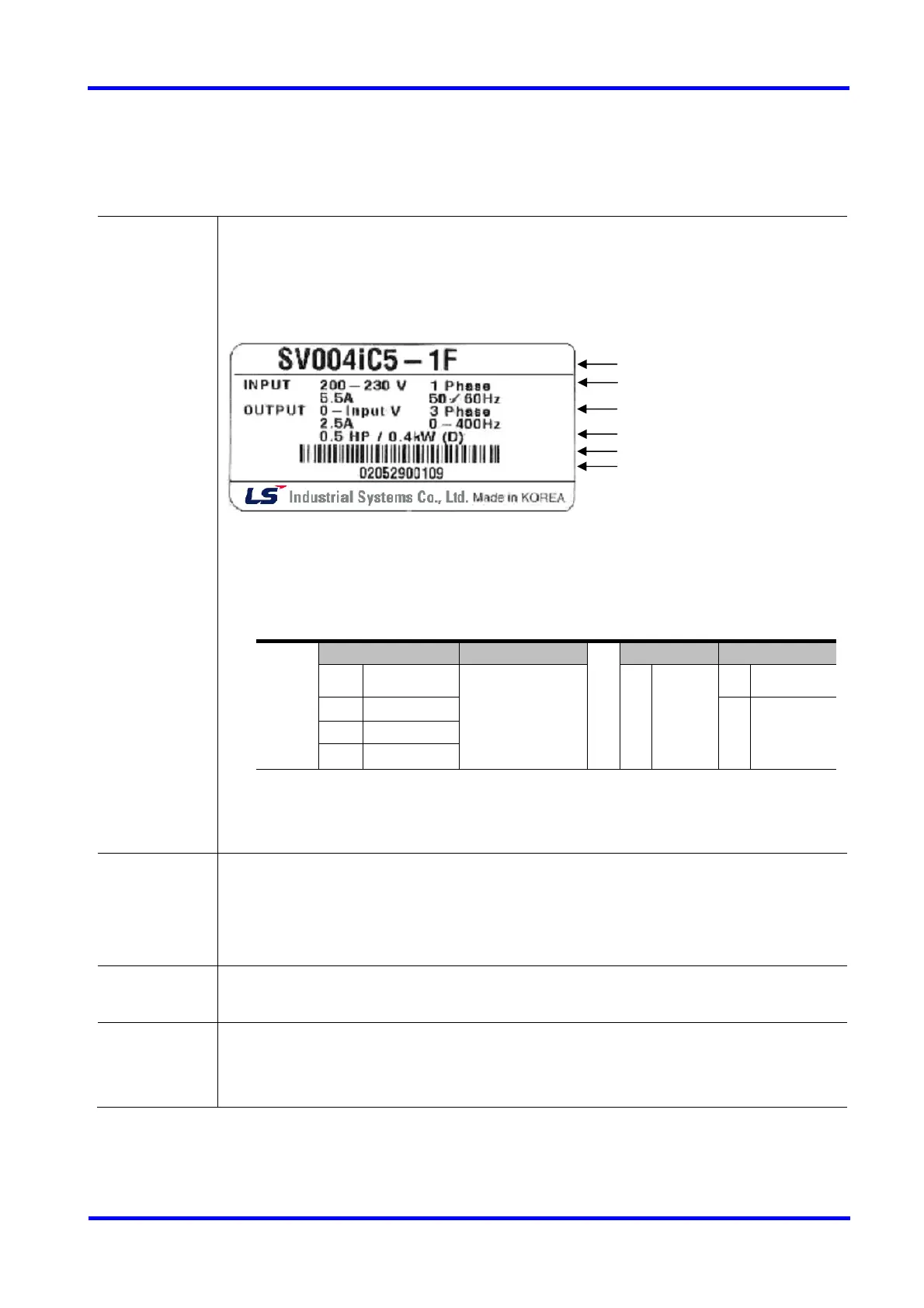

Inverter Type
Output Power Rating
Input power Rating
Inverter Capacity (HP/kW)
Bar Code
Serial Number
