3. Wiring
3-1 SV-iC5
3. Wiring

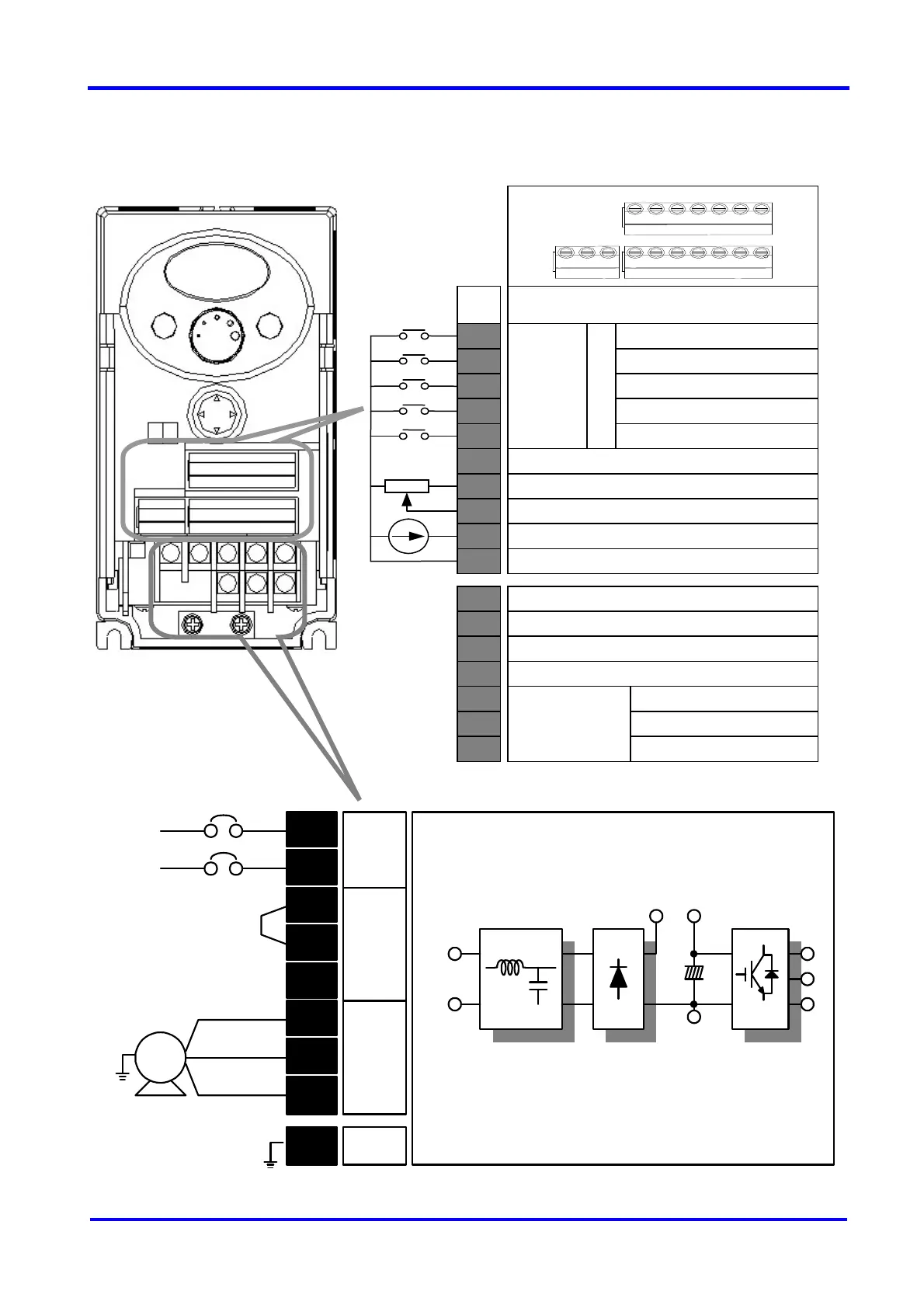

3.1 Terminal wiring
L1
L2
P
P1
N
U
V
W
Single phase AC
input
200V ~ 230V
AC line
voltage
input
Terminal
for
Inverter
DC P/S
Terminal
for
motor
Common
bar
L1
L2
P P1
N
U
V
W
CLASS B
EMI FILTER
(Option)
Motor
G
Earth
Ground
P1
P2
P3
P4
P5
CM
P24
VR
V1
I
MO
30A
30B
30C
Termi-
nal
Features
Multi-
function
input
terminal
Common Terminal for P1-P5, AM, P24
24V power for P1-P5
Initial setting
FX : Forward run
RX : Reverse run
BX : Emergency stop
JOG : Jog operation
RST : Fault reset
12V power supply for potentiometer
0-10V Analog Input terminal
0-20mA Analog Input terminal
AM
Multi-function Analog output terminal ( 0 ~ 10V)
CM
Common terminal for AM terminal
EXTG
Multi-function open collector output terminal
Ground T/M for MO
A contact output
B contact output
30A 30B Common
Multi-
function relay
output terminal
30A 30B 30C
MO EXTG P24 P1 P2 CM P3
P4 P5 VR V1 CM I AM
