5. Programming keypad
5-5
SV-iC5

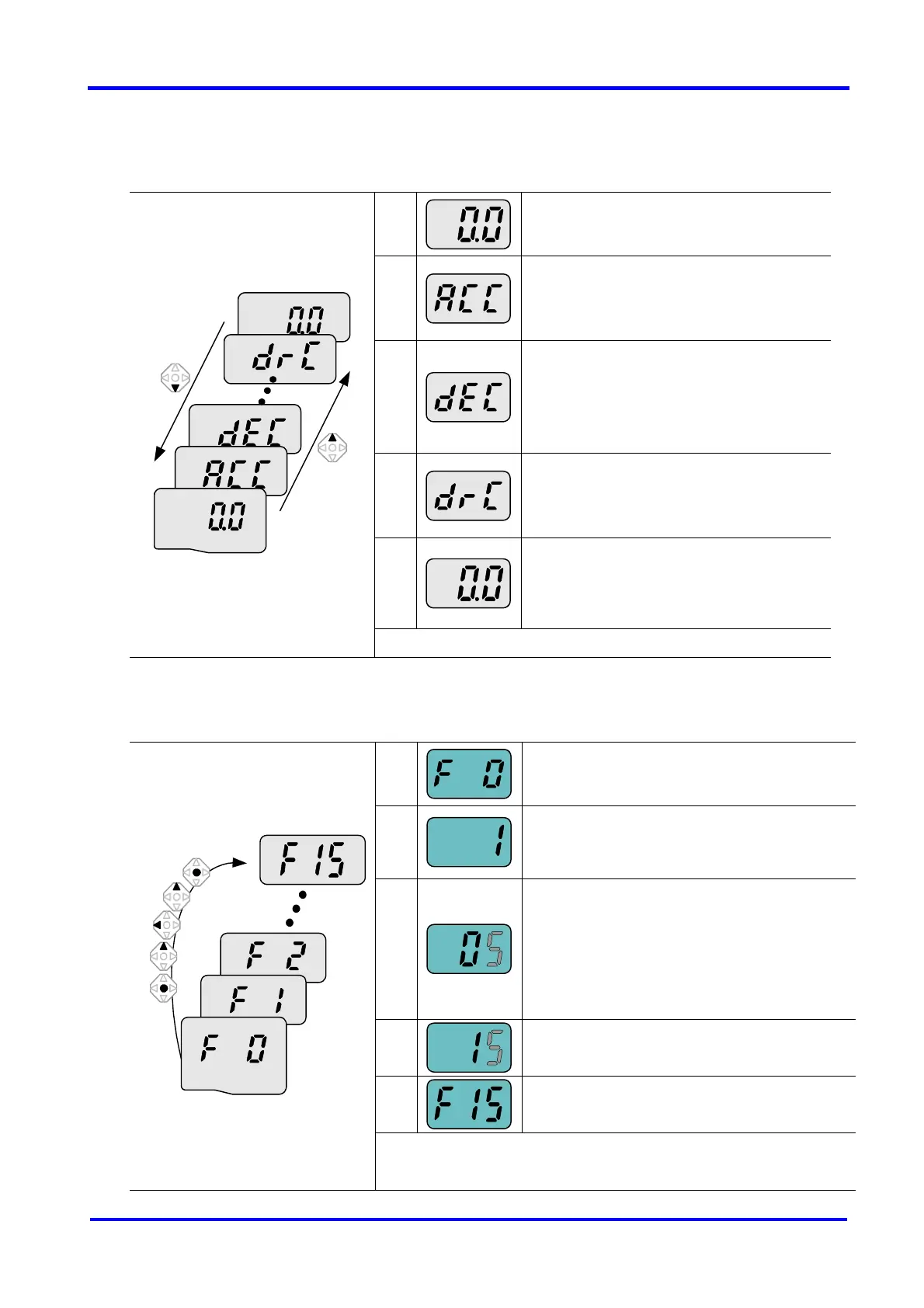

5.4 How to change the codes in a group
Code change in Drive group
Drive group
Drive groupDrive group
Drive group
1
-. In the 1
st
code in Drive group “0.0”, press the
Up () key once.
2
-. The 2
nd
code in Drive group “ACC” is
displayed.
-. Press the Up () key once.
3
-. The 3
rd
code “dEC” in Drive group is
displayed.
-. Keep pressing the Up () key until the last
code appears.
4
-. The last code in Drive group “drC” is
displayed.
-. Press the Up () key again.
5
-. Return to the first code of Drive group.
♣
Use Down () key for the opposite order.
Code change in Function group 1
When moving from the “F 0” to the “F 15” directly
Function
group 1
1
-. Press the Prog/Ent () key in “F 0”.
2
-. 1 (the code number of F1) is displayed. Use the
Up () key to set to 5.
3
-. “05” is displayed by pressing the Left (⊳) key
once to move the cursor to the left. The numeral
having a cursor is displayed brighter. In this case, 0
is active.
-. Use the Up () key to set to 1.
4
-. 15 is set.
-. Press the Prog/Ent () key once.
5
-. Moving to F 15 has been complete.
♣
Function group 2 and I/O group are settable with the same setting.
