5. Programming keypad
5-10
SV-iC5

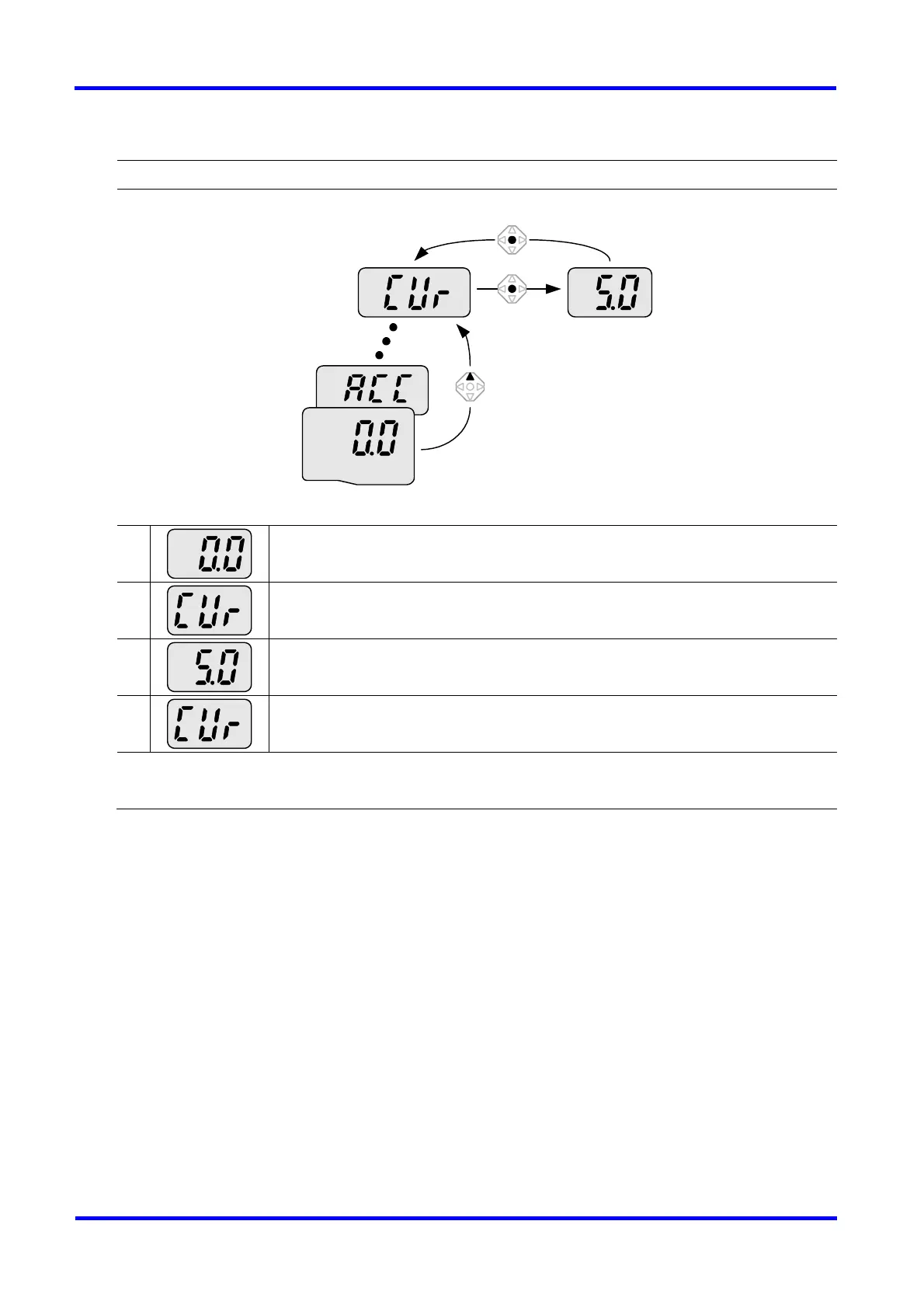

5.6 Monitoring of operation status
Monitoring output current in Drive group
Drive group
1
-. In [0.0], continue pressing the Up () or Down () key until [Cur] is displayed.
2
-. Monitoring output current is provided in this parameter.
-. Press the Prog/Ent () key once to check the current.
3
-. Present output current is 5.0 A.
-. Press the Prog/Ent () key once to return to the parameter name.
4
-. Return to the output current monitoring code.
♣
Other parameters in Drive group such as dCL (Inverter DC link current) or vOL (Inverter output voltage) can
be monitored via the same method.
