2. Installation
2-1
SV-iC5
2. Installation
2.1 Installation precautions
CAUTION
Handle the inverter with care to prevent damage to the plastic components. Do not hold the inverter by the front
cover. It may fall off.
Install the inverter in a place where it is immune to vibration (5.9 m/s
2
or less). The inverter is under great influence
of ambient temperature.
Install in a location where temperature is within the permissible range (-10~50°C)
.
Maximum Surrounding Air
Temperature is 50°C. Models SV004iC5-1, SV004iC5-1F, SV008iC5-1, and SV008iC5-1F can be used in
Ambient 40°C. (UL 508C)
`

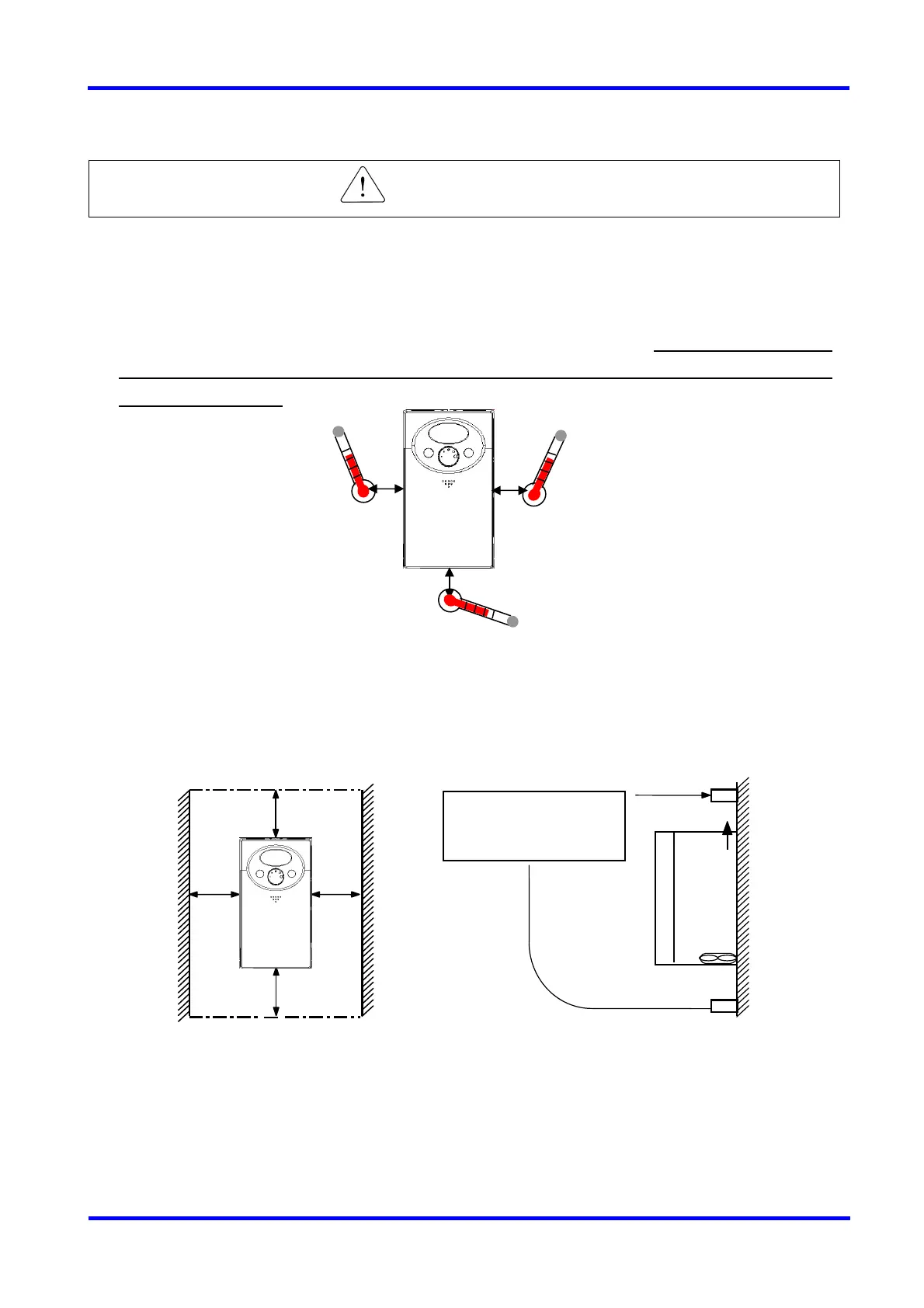

<Ambient Temp Checking Location>
The inverter will be very hot during operation. Install it on a non-combustible surface.
Mount the inverter on a flat, vertical and level surface. Inverter orientation must be vertical (top up) for proper heat
dissipation. Also leave sufficient clearances around the inverter.
Protect from moisture and direct sunlight.
Do not install the inverter in any environment where it is exposed to waterdrops, oil mist, dust, etc. Install the
inverter in a clean place or inside a “totally enclosed” panel which does not accept any suspended matter.
5cm
Min
10cm Min
5cm
Min
10cm Min
Leave space enough to
allow cooled air flowing
easily between wiring
To Next Page
