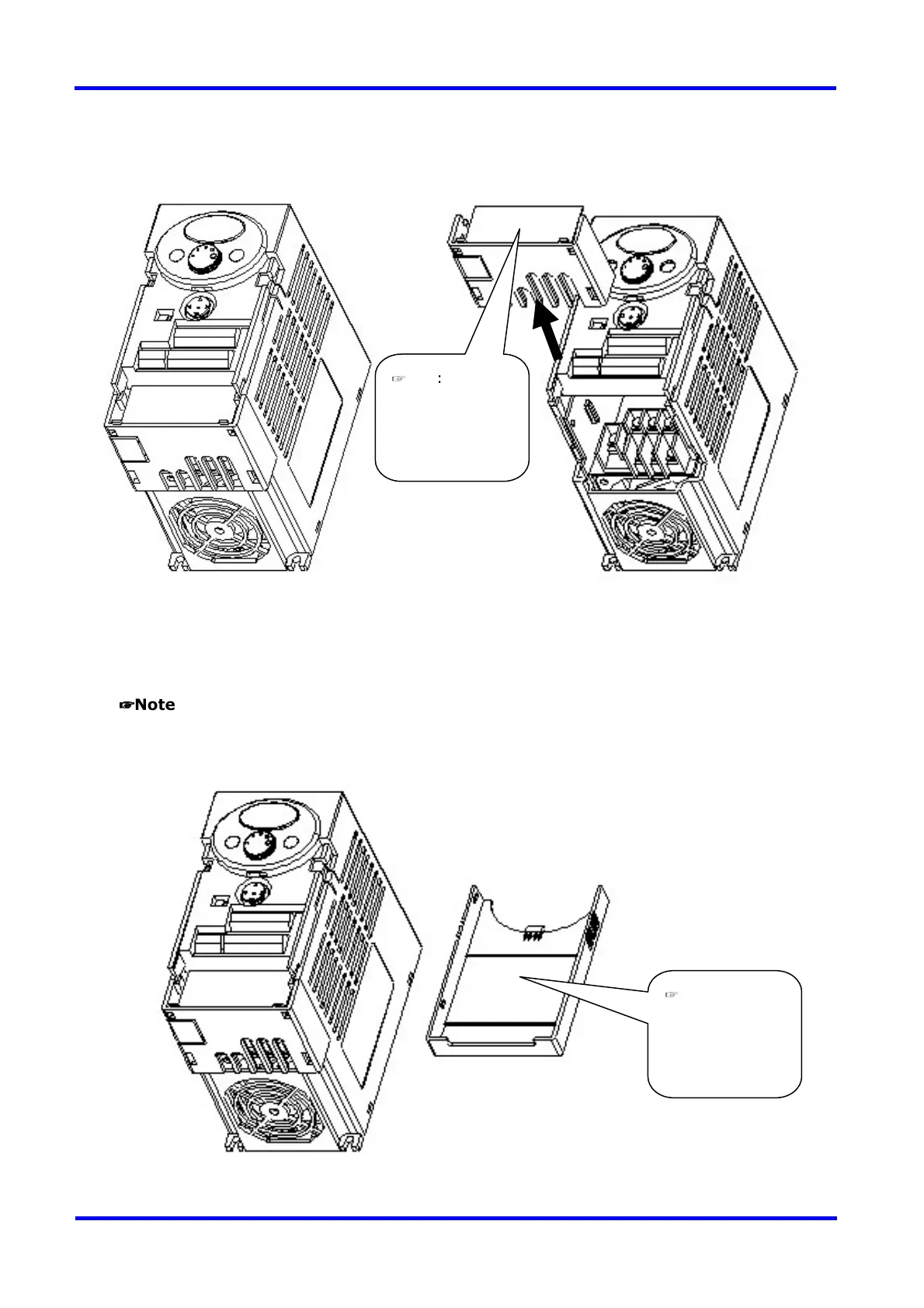

Removal for wiring input power and terminals: After removing the front cover, lift
the bottom cover up to disconnect.
To access control terminals: after finishing power terminal wiring, reinstall the
bottom cover and then start wiring control terminals.
☞
☞☞
☞
Note : Use the recommended size of the cable as indicated in this manual ONLY.
Using larger size cable may lead to mis-wiring or damage the insulation.
☞
Note: Input
Power Terminals
name is labeled
☞
Note: Control
Terminals name
is labeled here.
