LS Industrial Systems SV iC5 Series User Manual

9. Basic functions
9-7 SV-iC5

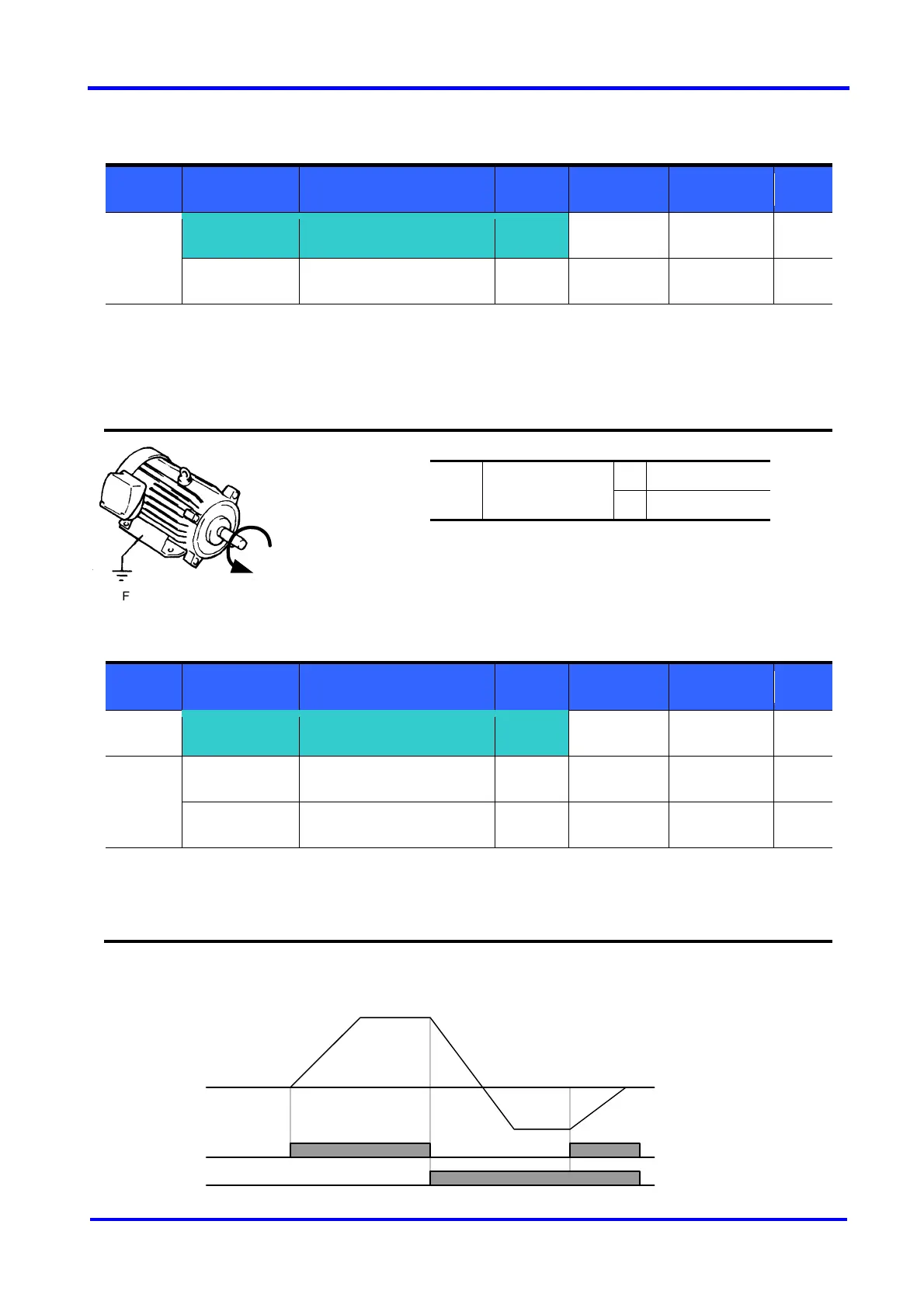

9.3 Run Command setting
 Run via the Run and STOP/RST key
Group LED Display Parameter Name
Set
Value
Min/Max
Range
Factory
Defaults
Unit
Drive
group
drv
[Drive mode]
(Run/Stop mode)
0
0/3 1
drC
[Direction of motor rotation
select]
- F/r F
 Set
drv
– [Drive mode] to 0.
 Motor starts to accelerate by pressing the Run key while run frequency is set. Motor decelerates to stop by
pressing the STOP/RST key.
 Selecting rotation direction is available at drC - [Direction of motor rotation select] when run command is
issued via Run key on keypad.
drC [Direction of motor
rotation select]
F Forward
R Reverse
 Run command setting 1 via FX and RX terminals
Group LED Display Parameter Name
Set
Value
Min/Max
Range
Factory
Defaults
Unit
Drive
group
drv
[Drive mode]
(Run/Stop mode)
1
0/3 1
I/O group
I20
[Multi-function input terminal
P1 define]
0 0/24 0
I21
[Multi-function input terminal
P2 define]
1 0/24 1
 Set
drv
– [Drive mode] to 1.
 Set I20 and I21 to 0 and 1 to use P1 and P2 as FX and RX terminals.
 “FX” is Forward run command and “RX” Reverse run.
 Operation will stop when both FX and RX terminals are turned ON or OFF.
FX : Counter clockwise
FX
RX
Frequency
