5. Programming keypad
5-4
SV-iC5

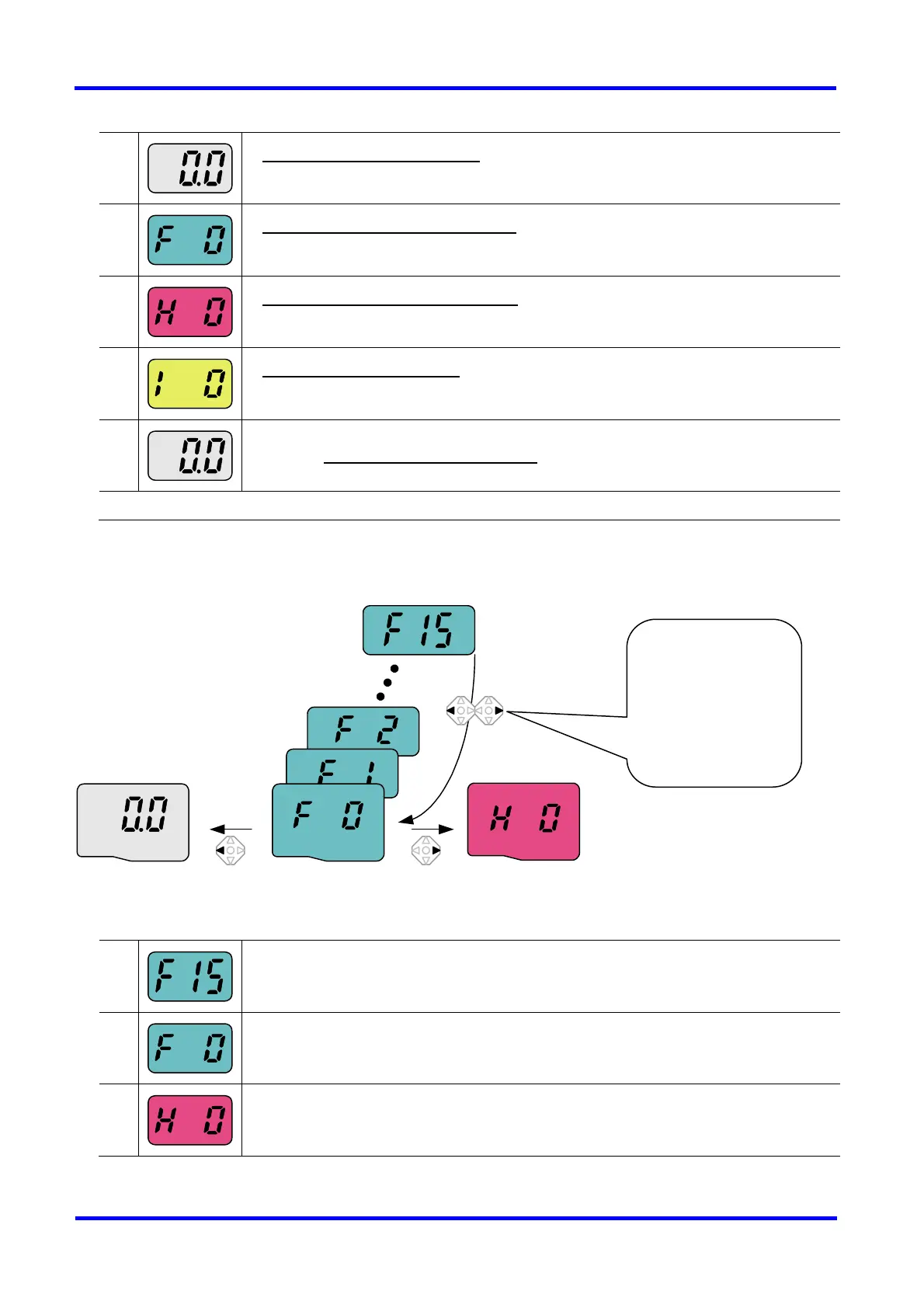

How to move to other groups at the 1
st
code of each group.
1
-. The 1
st
code in Drive group “0.0” will be displayed when AC input power is applied.
-. Press the right arrow () key once to go to Function group 1.
2
-. The 1
st
code in Function group 1 “F 0” will be displayed.
-. Press the right arrow () key once to go to Function group 2.
3
-. The 1
st
code in Function group 2 “H 0” will be displayed.
-. Press the right arrow () key once to go to I/O group.
4
-. The 1
st
code in I/O group “I 0” will be displayed.
-. Press the right arrow () key once again to return to Drive group.
5
-. Return to the 1
st
code in Drive group “0.0”.
♣
If the left arrow key (⊳) is used, the above will be executed in the reverse order.
How to move to other groups from any codes other than the 1
st
code
When you would like to move from the F 15 to function group 2
1
-. In F 15, press the Left (⊳) or Right arrow () key. Pressing the key goes to the first code of
the group.
2
-. The 1
st
code in function group 1 “F 0” is displayed.
-. Press the right arrow () key.
3
-. The 1
st
code in function group 2 “H 0” will be displayed.
Function
group 1
Function
group 2
Drive group
Pressing left or
right arrow key in
any code will return
to first code of
each group.
