11. Monitoring
11-10
SV-iC5
11: Command Loss
Become active when frequency command is lost.
12: During run
Become active when run command is given and the inverter generates output voltage.
13: During stop
Activated during stop.
14: During constant run
Activated during nominal operation.
15: During speed searching
Refer to Page 10-12 Speed search operation.
16: Wait time for run signal input
This function becomes active during normal operation and that the inverter waits for active run
command from external sequence.
17: Fault relay output
The parameter set in I56 is activated.
For example, if setting I55, I56 to 17 and 2, respectively, Multi-function output relay will become
active when trip other than “Low voltage trip” occurred.

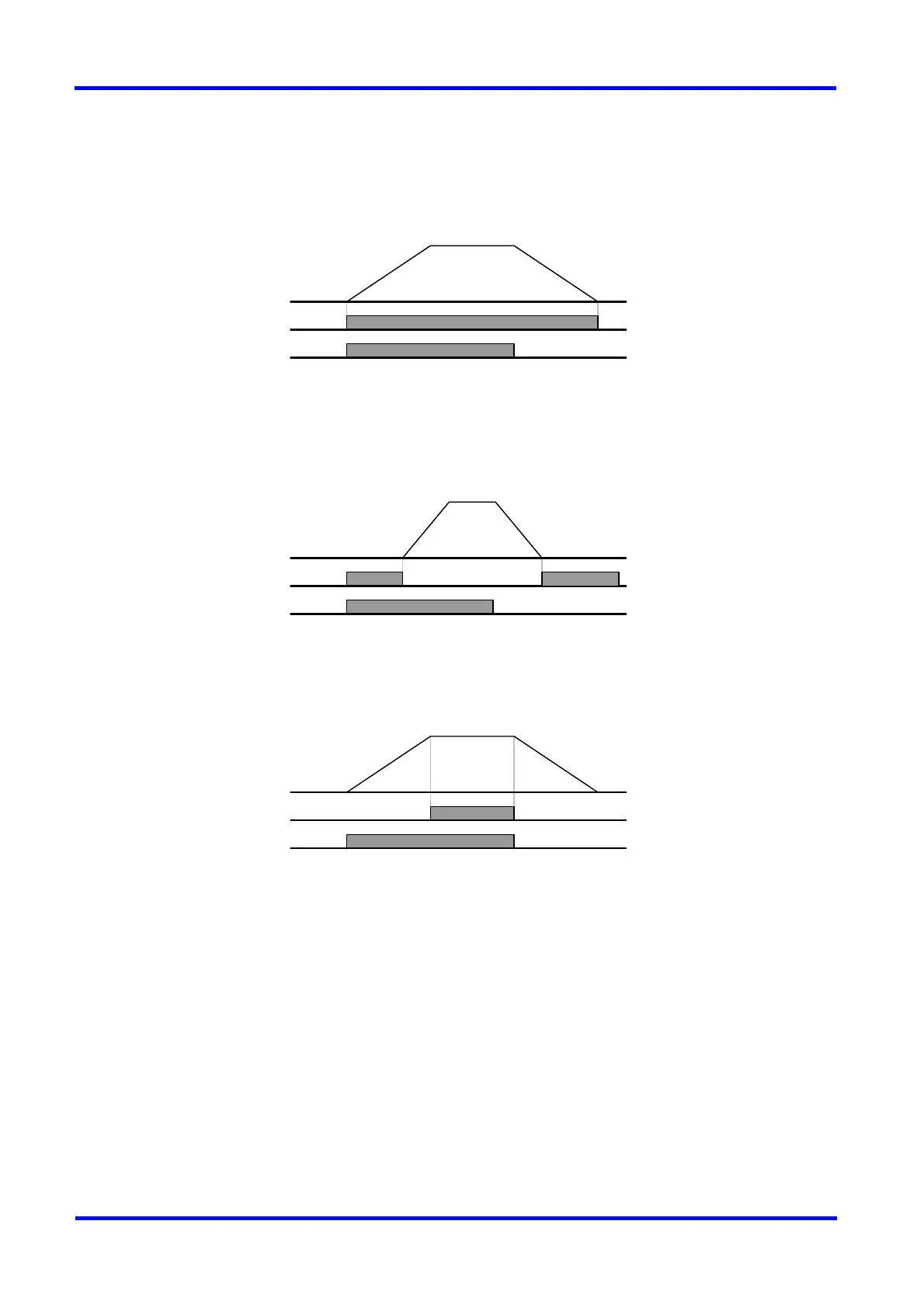

Freq.
MO
Run
command
Freq.
MO
Run
command
Freq.
MO
Run
command
