LS Industrial Systems SV iC5 Series User Manual

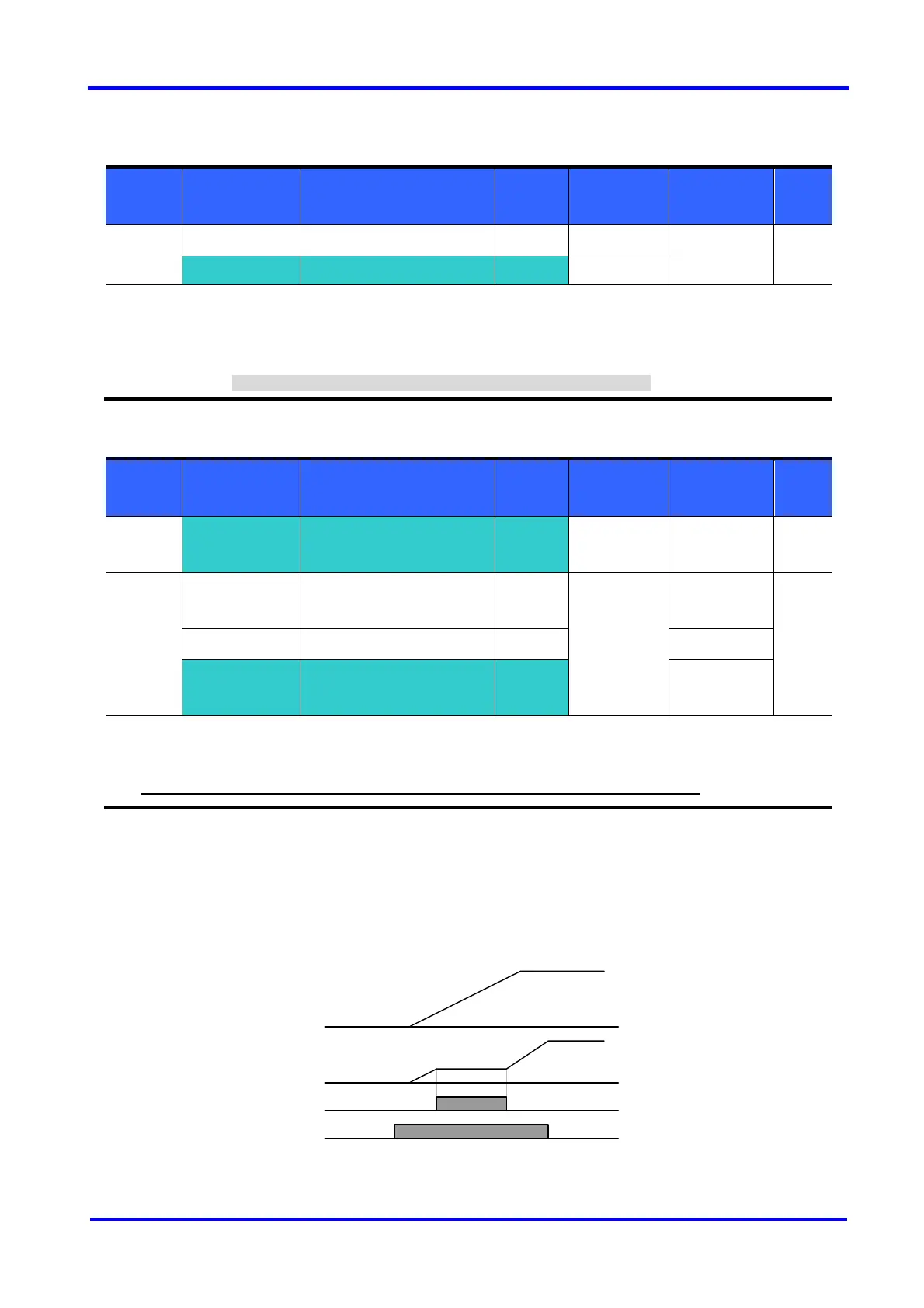

9. Basic functions
9-5 SV-iC5
 Frequency setting via Potentiometer on the keypad + 0-10V input
Group LED Display Parameter Name
Set
Value
Min/Max
Range
Factory
Defaults
Unit
Drive
group
0.0 [Frequency Command]
- - - Hz
Frq [Frequency Mode] 7 0/8 0
 Set Frq – [Frequency Mode] to 7 {Potentiometer on the keypad + 0-10V input}.
 Relative code: I 1 - I 5, I6 - I10
 Refer to P 9-4 Frequency setting via potentiometer on the Keypad + 0-20mA input for the setting.
 Analog Hold
Group LED Display Parameter Name
Set
Value
Min/Max
Range
Factory
Defaults
Unit
Drive
group
Frq [Frequency Mode] 2/7 0/8 0
I/O group
I20
[Multi-function input terminal
P1 define]
-
0/24
0
~ ~
I24
[Multi-function input Terminal
P5 Define]
23 4
 This setting becomes activated when Frq – [Frequency Mode] is set to 2-7.
 Set one of the Multi-function input terminals to 23 to activate Analog Hold operation.
 When I24 –[Multi-function input terminal P5 define] is set to 23,
Freq.
P5
Run
command
Freq. setting
