5 -19

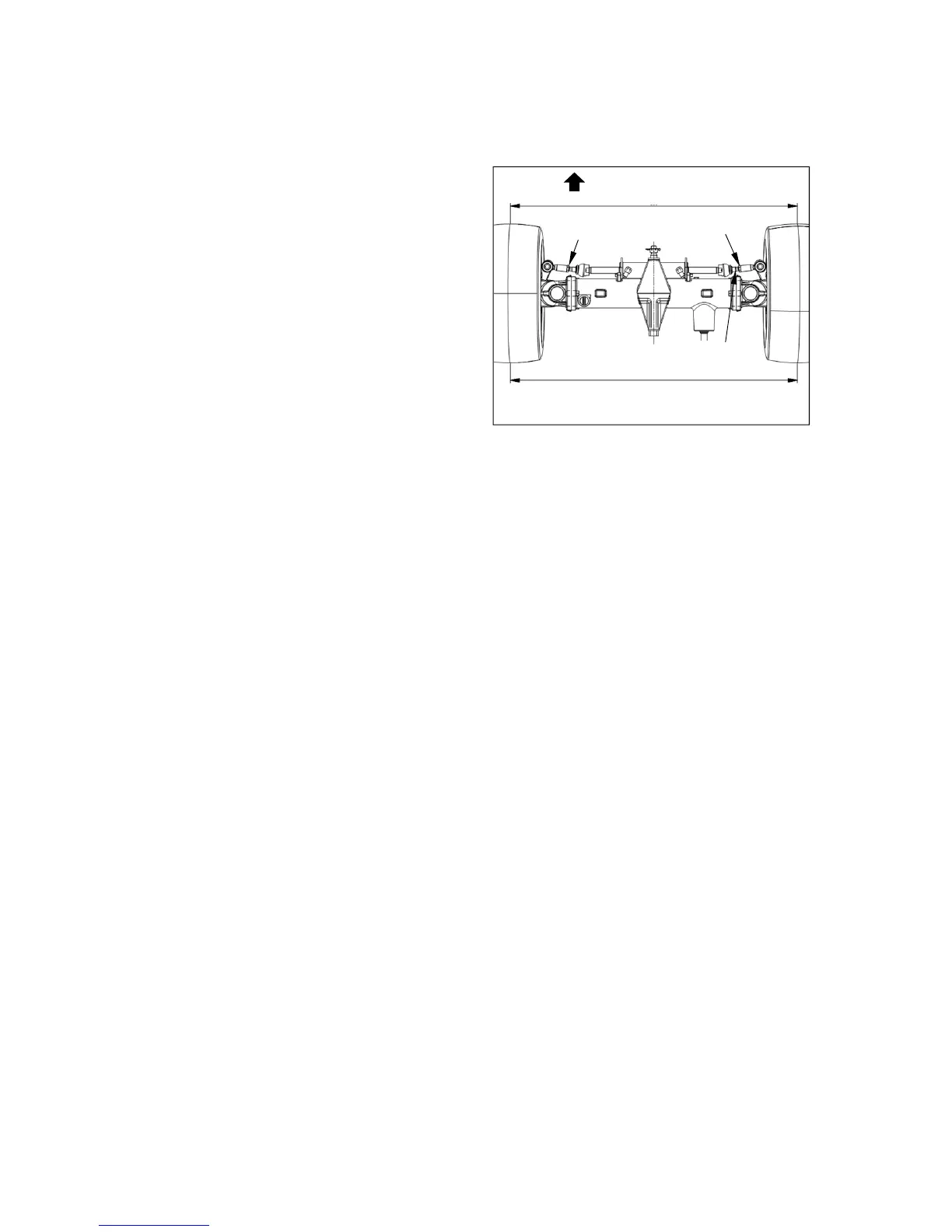

(5) Toe-in
z Check Toe-in of the front wheel and if needed,
adjust it as below.
Normal value : B - A = 0~8 mm (0~0.3 in.)
z Loosen lock-nuts of the tie-rod (both side).
z Fix steering cylinder and turn adjuster counter-
clockwise, the toe-in (“B-A”) shall be increased.
z Turn adjuster of the other side to the same
displacement.
z After adjusting Toe-in, tighten the lock-nuts.
z If possible, Contact your authorized local dealer.
A
Lock-nut
Lock-nut
FRONT
B
Adjuster
