LS tractor MT125 User Manual

1 -18
Gear Neutral

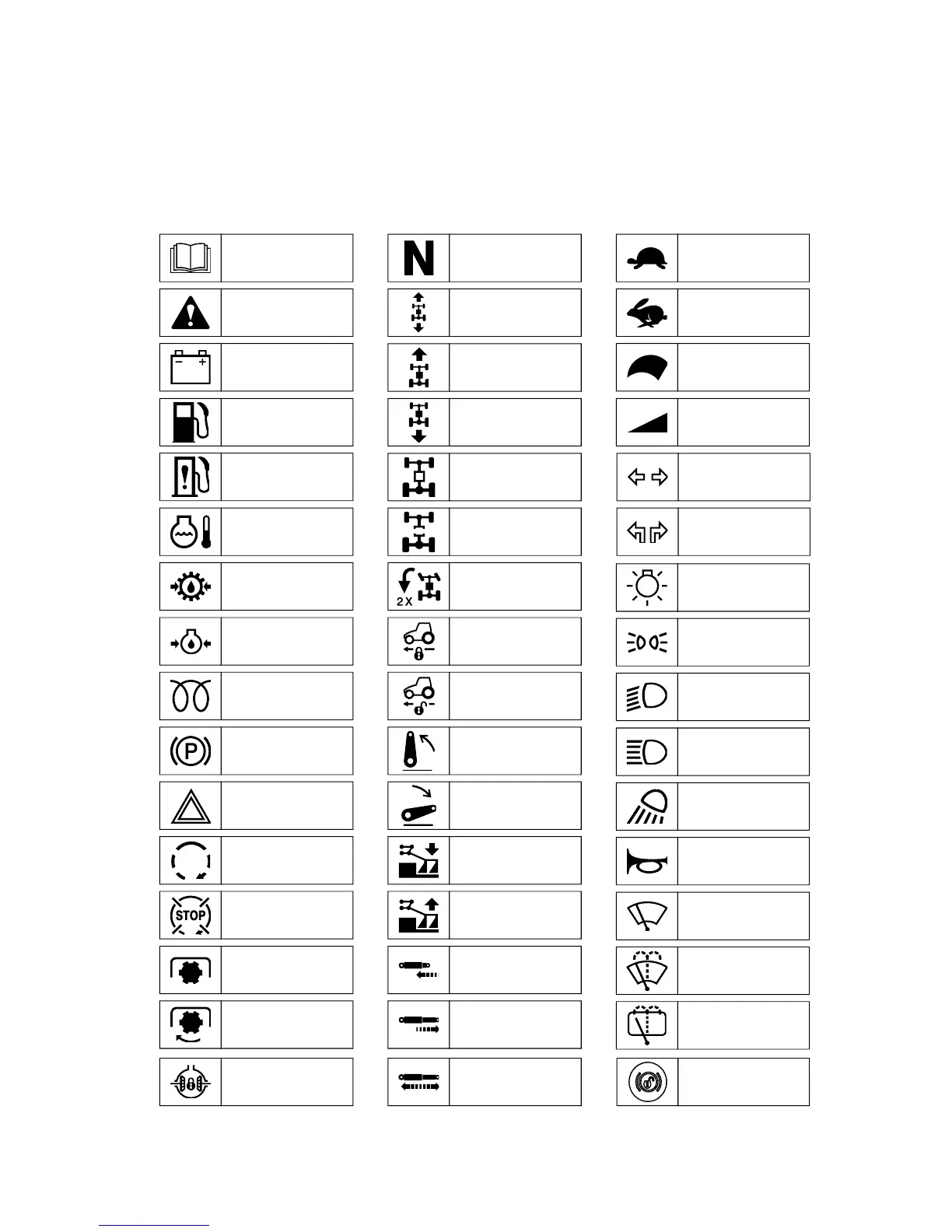

The followings show the symbols and its meaning used for the tractor.
1-5. Symbols
Low speed
High speed
Engine speed
control (throttle)
Engine speed
control (throttle)
Position control
(Up)
Position control
(Down)
Draft control
(Deep)
Draft control
(Shallow)
Forward/Rearward
Forward
Backward
4WD disconnection
4WD connection
Quick turn
(Optional)
Parking brake
Turn signal
light
Headlights
(downward)
Side lights
Headlights
(upward)
Work light
Light switch
Emergency lights
Cylinder rod
(shorten)
Cylinder rod
(extend)
Window wiper
Window wiper
/ Washer (front)
Window wiper
/ Washer (rear)
Cruise drive
(Optional)
Cruise drive release
(Optional)
Fuel level
Refer to User’s
Manual.
Fuel filter
Battery charging
Caution!
Transmission
oil pressure
Engine oil pressure
Engine coolant
temperature
Diesel engine
preheat
horn
Engine stop
PTO in operation
PTO stop
Engine start
Direction
indicating light
Cylinder rod
(floating)
Differential lock
device
Unlatched brake
pedal

LS tractor MT125 Specifications

General

Engine Power	24.7 HP
Transmission	Hydrostatic
Drive	4WD
Transmission Speeds	Infinite (2-range)
PTO Speed	540 RPM
Hydraulic System	Open center
3-Point Hitch	Category I
Tire Size (Front)	18x8.5-10
Tire Size (Rear)	26x12-12
Engine Type	Diesel
Fuel Capacity	6.6 gal
