3 -2

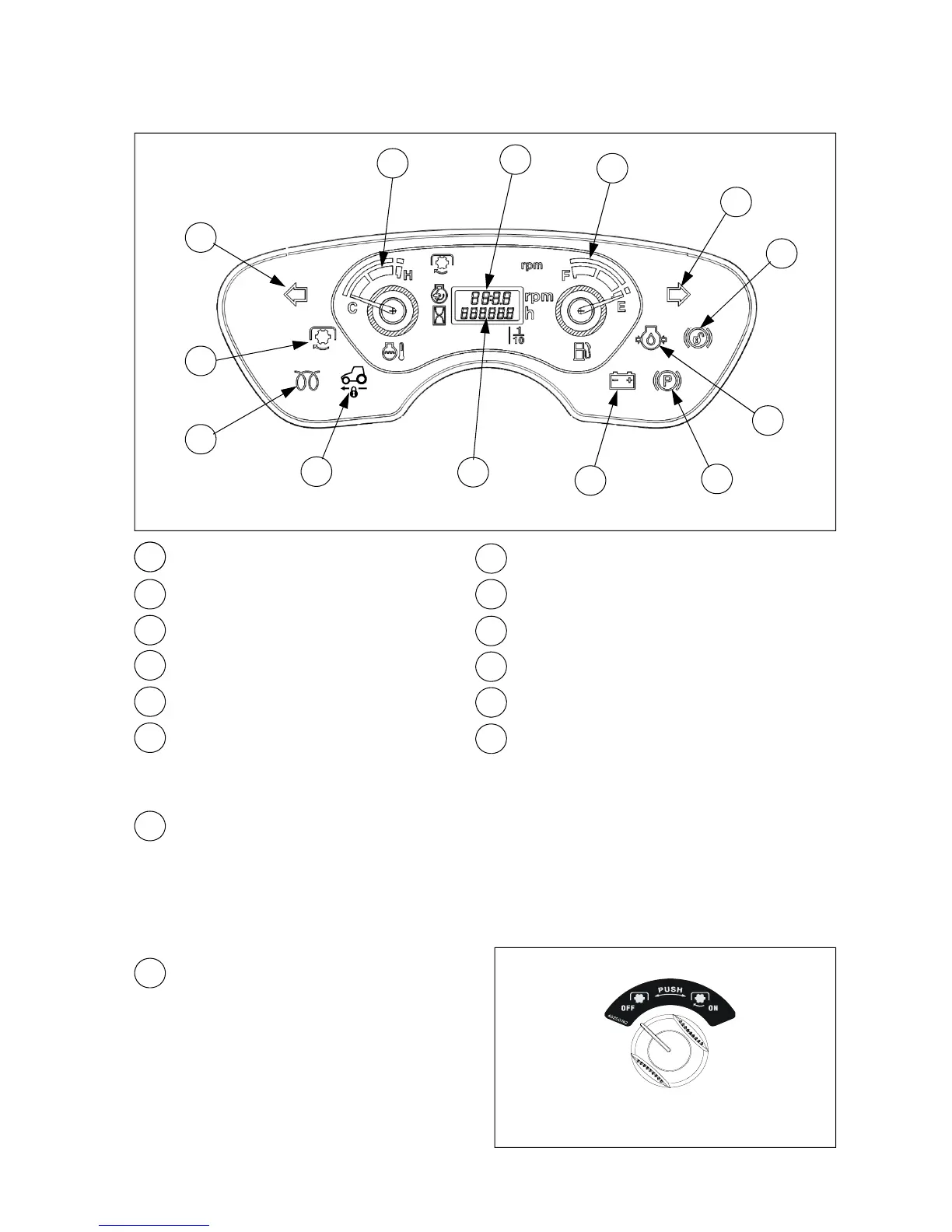

(1) Instrument panel
1
2
6
7
8
9
10
11
12
3
4
5
21
Turn signal indicator (Left / Right)
3
Cold start aid indicator
2
PTO operation indicator
4
Cruise drive indicator
5
Engine coolant temperature gauge
6
Tachometer
7
Hour meter
8
Fuel level gauge
9
Battery charging indicator
12
Engine oil pressure indicator
10
Parking brake indicator
11
Brake pedals not latched indicator (Not used)
1
Turn signal indicator (Left / Right)
z When turning the turn signal light switch to the
left/right direction, the front/rear turn signal
lights are blinked. At this time, this indicator
shall blink simultaneously.
1
2
PTO operation indicator
z When turning PTO switch ON while the engine
is running and PTO lever (if fitted) is engaged,
the PTO shaft shall rotate and this indicator
shall be turned on.
PTO switch
540/2933
