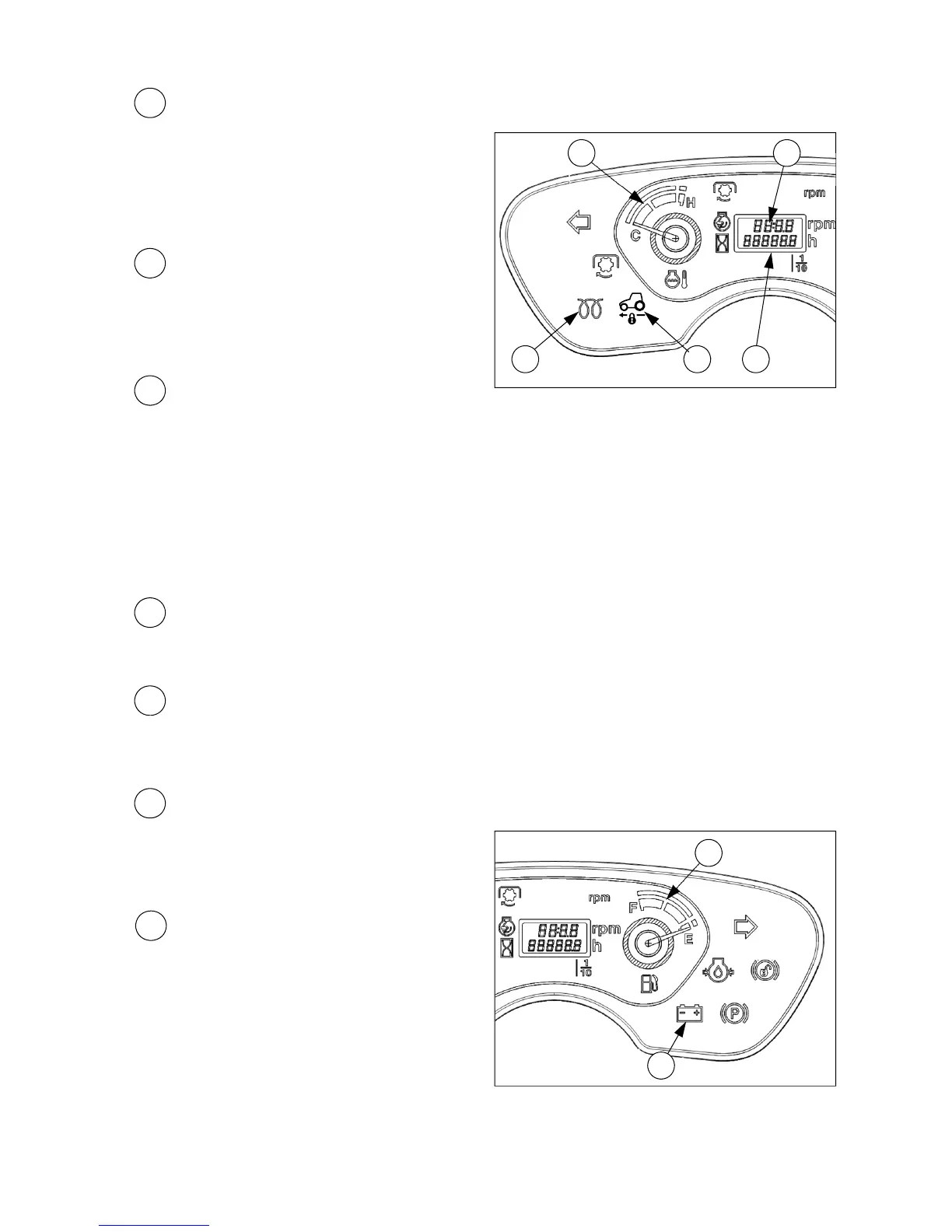

Cold start aid indicator
z When turning start-key switch to “Preheat”
position, this indicator shall be ON.
z When turning start-key switch to “Start”
position, this indicator shall be ON as well.
4
Cruise drive indicator
z This indicator shall be ON when pressing the
cruise control switch for applying cruise drive.
5
Engine coolant temperature gauge
z This gauge indicates the temperature of engine coolant.
z The closer the needle approaches “H”, the higher the temperature of engine coolant is.
z If the needle of engine coolant temperature gauge indicates red zone, Stop the engine
immediately and check the engine cooling system. (coolant, radiator screen, fan belt, …)
z The radiator and coolant is very hot. When checking the coolant level, comply with instructions of
the section 5 “Maintenance and Lubrication” in this manual.
6
Tachometer
z Tachometer shows running engine speed. (revolutions per minute)
7
Hour meter
z The number 0005.3 in hour meter shows that the tractor has been used for 5.3hours.
(5hours and 18minutes).
z This indicator shall be ON when turning the key
switch to ON position, and shall be OFF after
starting engine.
z If not, contact your authorized dealer for
checking electrical charging system.
9
Battery charging indicator
z This gauge indicates the remaining amount of
fuel. If the needle indicates “E”, fill the fuel tank
immediately
8
Fuel level gauge
65
