(3) Hydraulic lift control

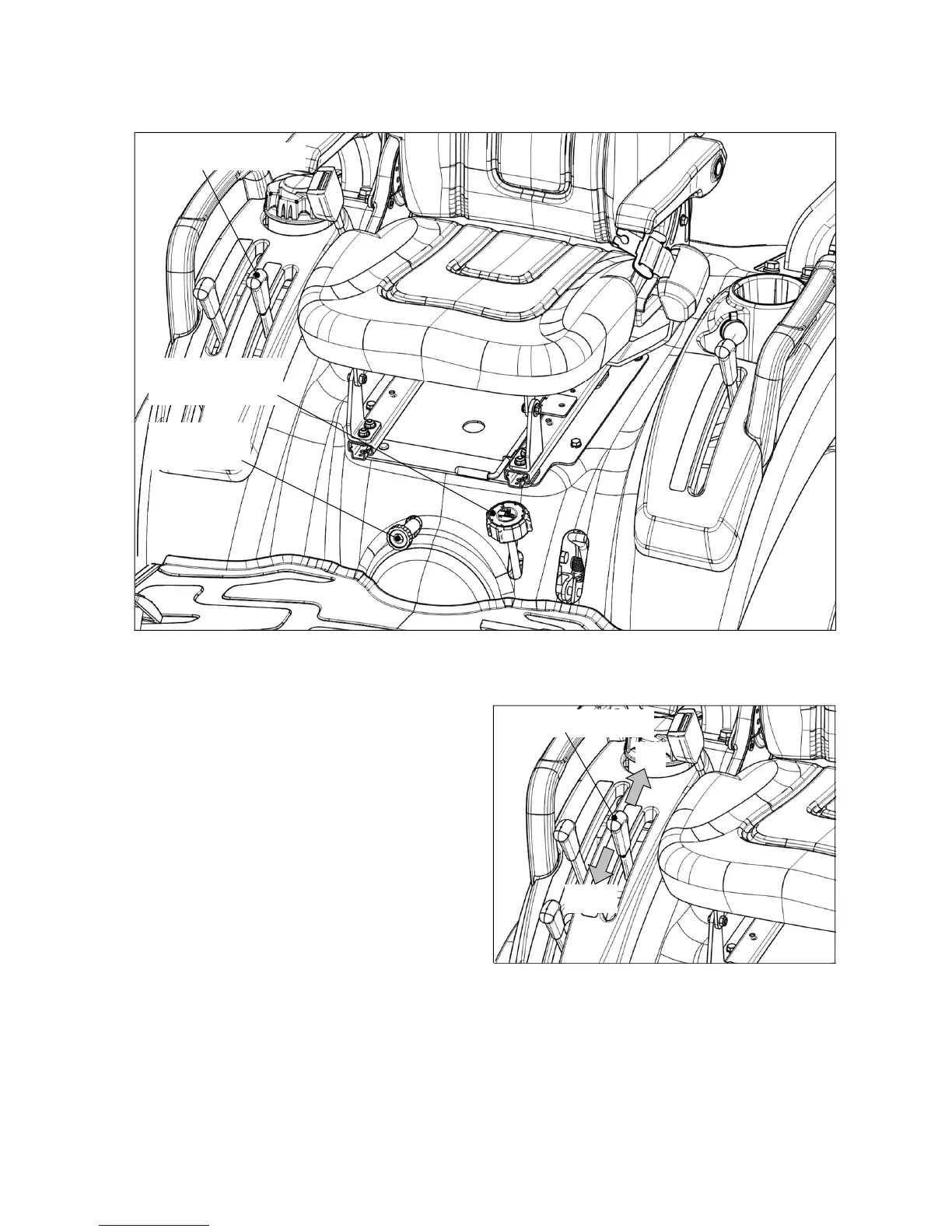

Position control lever
Down speed
control knob
Mid mower height
adjustment knob
① Position control
z The 3-point linkage can go up/down by using
the position control lever as below.
1. Push the position control lever forward, the 3-
point linkage goes down.
2. Pull the position control lever backward, the 3-
point linkage goes up. The raising speed is
depend on the engine speed. If it does not raised
at the low rpm, increase the engine speed.
3. If releasing position control lever, the lever goes
to neutral automatically and the 3-point linkage
shall be stopped.
Position control lever
Down
Up
